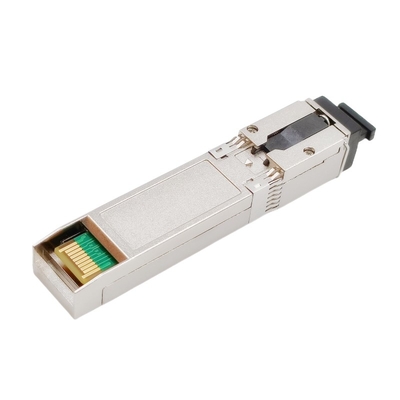

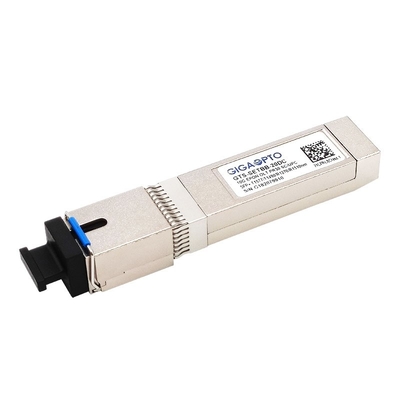

10G EPON SFP Module OLT SFP+ PR30 Symmetric T1577nm 10G T1490nm 1G R1270nm 10G R1310nm 1G

10GEPON OLT Symmetrical PR30 SFP+ TX1577nm(10.3125G) / TX1490nm(1.25G) / RX1270nm(10.3125G) / RX1310nm(1.25G) 20km SC/UPC Receptacle SMF Transceiver Module

Description

The GIGAOPTO's GTS-SETBB-20DC is a combination of 10G EPON OLT and 1G EPON OLT optical transceivers in a SFP+ housing. The transceiver complies with IEEE 802.3av specification, supporting symmetric line rates of 10.3125 Gbps (10GBASE-PR30) (downstream/upstream) on 1577/1270 nm wavelengths, as well as 1.25 Gbps (1000BASE-PX20) on 1490/1310 nm wavelengths, using a SC/UPC receptacle connector.


The 1270nm and 1310nm optical burst mode receivers incorporate APD/TIA optics for maximum sensitivity. The 10G transmitter incorporates a 1577nm EML laser assembly and the 1G transmitter incorporates a 1490nm DFB laser assembly. The transceiver requires a single 3.3V power supply. It is FDA 21 CFR 1040.10 and IEC 60825 Class I laser safety product.

Specification

Features

• Data rate: upstream 10.3125/1.25Gbps, downstream 10.3125/1.25Gbps application
• Single fiber bi-directional data links
• Continuous transmitter and burst mode receiver
• 1577nm EML laser/1490nm DFB laser transmitter and 1270nm / 1310nm APD-TIA receiver
• Support 20km transmission distance with SMF
• Small Form Factor Pluggable package with SC/UPC Connector
• Single +3.3V power supply
• Digital diagnostic monitoring interface
• CML compatible data input/output interface
• LVTTL transmitter laser fault alarm
• Low EMI and excellent ESD protection
• Class I laser safety standard IEC-60825 compliant
• Ambient operating temperature: Commercial: 0°C~70°C
• RoHS6 Compliance​

Application

• SFP+ Symmetrical 10G Ethernet Passive Optical Network PR30 OLT

Ordering Information

Compatibility

Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty.

For this (10GEPON OLT PR30 SFP+ Symm (10G)T1577nm /(1G)T1490nm /(10G)R1270nm /(1G)R1310nm ), please refer to the P/N correspondence table. If you are interested in knowing more compatibility, you are always welcome to contact us.
