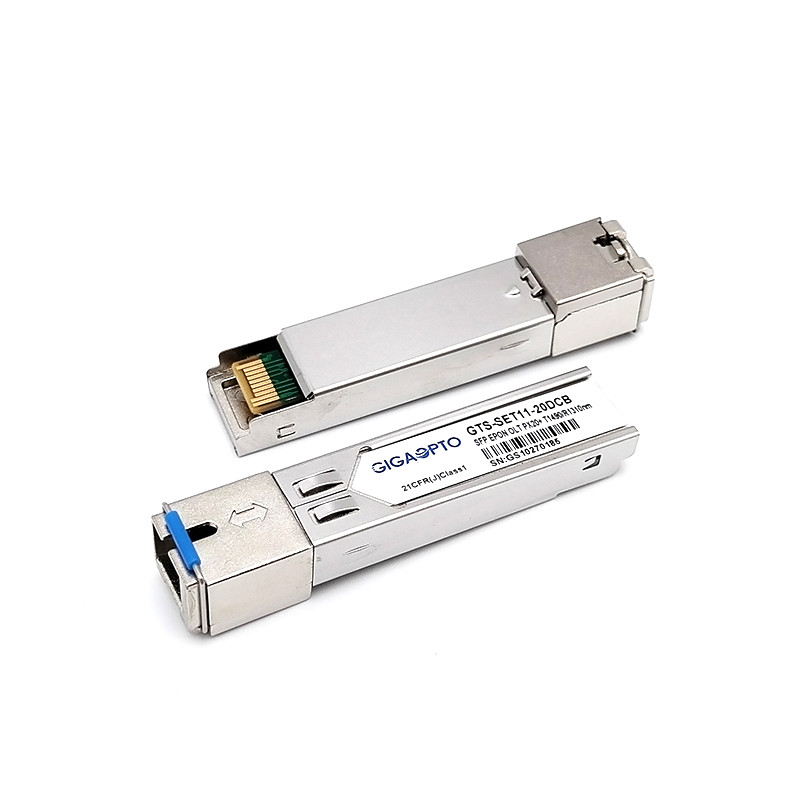

SC UPC Module 1W PIN/APD Connector

SC UPC Module 1W PIN/APD Connector
SC UPC Module 1W PIN/APD Connector

Large Image :  SC UPC Module 1W PIN/APD Connector

Product Details:
Place of Origin: China
Brand Name: Neutral
Certification: CE, FCC, RoHs, TUV, UL
Model Number: GTS-SET11-20DC

SC UPC Module 1W PIN/APD Connector

Description
Power Supply: 3.3V Wavelength: 1310nm
Reach: 20KM Fiber Type: Single Mode
Temperature: -40C-+85C Size: 14.5mmx14.5mmx56mm
Power Consumption: 1W Optical Components: DML/EML
Highlight:

sfp epon

,

epon sfp

,

epon sfp transceiver

Product Description:

EPON SFP Module is a high-performance and cost-effective optical module specially designed for EPON OLT application. It has a compact size of 14.5mmx14.5mmx56mm and light weight of 20g, making it easy to install. This EPON SFP Module is equipped with a SC/UPC connector and Single Mode fiber, which helps to improve the transmission quality and ensure the signal stability during data transmission. Besides, it is compatible with a wide range of EPON ONU in the market, making it a perfect choice for EPON OLT applications.



Features:

  • EPON SFP Module - Reach: 20KM, Optical Components: DML/EML, Weight: 20g, Transmitter Type: FP/DFB, Wavelength: 1310nm
  • EPON OLT PX20+ SFP - Reach: 20KM, Optical Components: DML/EML, Weight: 20g, Transmitter Type: FP/DFB, Wavelength: 1310nm
  • EPON ONU SFP - Reach: 20KM, Optical Components: DML/EML, Weight: 20g, Transmitter Type: FP/DFB, Wavelength: 1310nm


Technical Parameters:

Feature 1000BASE-PX20
Power Consumption 1W
Wavelength 1310nm
Fiber Type Single Mode
Power Supply 3.3V
Transmitter Type FP/DFB
Optical Components DML/EML
Size 14.5mmx14.5mmx56mm
Reach 20KM
Connector SC/UPC


Applications:

Neutral SFP transceiver modules are ideal solutions for Gigabit Ethernet and Fiber Channel applications. The module uses SC/UPC connector, a 3.3V power supply, and measures 14.5mmx14.5mmx56mm, making it a perfect choice for high-speed data transmission. It has passed CE, FCC, RoHS, TUV, and UL certifications, providing you with a guarantee of quality and reliability. It also supports 1000BASE-PX20, ensuring optimal performance.

This module is ideally suited for a variety of applications including access networks, metropolitan area networks, fiber-to-the-home/buildings/venues, etc. It has excellent power consumption and long-distance transmission characteristics, making it ideal for high-speed communication applications. Its small form factor makes it easy to use and install, making it ideal for fiber optic networks in data centers, enterprise networks, and other applications.

Neutral XFP transceiver modules are perfect for high-speed communications applications. It is reliable, certified, and has excellent power consumption and long-distance transmission. It is ideally suited for a variety of applications including access networks, metropolitan area networks, and fiber-to-the-home/buildings/premises. It also features an SC/UPC connector, and a 3.3V power supply, and measures 14.5mmx14.5mmx56mm, making it perfect for high-speed data transfer.



Customization:

We provide a range of high-quality, customizable EPON OLT SFP Module and XFP Transceiver Module for all your needs. Our products are designed to connect the EPON network with high performance, reliability and scalability. All our EPON SFP Modules are neutral brand name with CE, FCC, RoHs, TUV, UL certification. They are designed with temperature range of -40C-+85C, receiver type of PIN/APD, wavelength of 1310nm, size of 14.5mmx14.5mmx56mm, connector of SC/UPC.



Packing and Shipping:

EPON SFP Module Packaging and Shipping:

The EPON SFP module will be securely packed in a foam lined box to protect it from any damage during shipping. The box will be labeled with the name of the product and a description of the contents. The box will be sealed with tamper-evident tape to ensure the product has not been opened before delivery. The box is then placed into a cardboard shipping box and the shipping box is sealed with additional tamper-evident tape. Shipping boxes will be labeled with the customer's shipping address and a barcode for tracking. The shipping box will then be sent to the customer via the appropriate shipping carrier.
