Product Details:
|
| Weight: | 20g | Wavelength: | 1310nm |
|---|---|---|---|
| Power Supply: | 3.3V | Connector: | SC/UPC |
| Size: | 14.5mmx14.5mmx56mm | Fiber Type: | Single Mode |
| Optical Components: | DML/EML | Receiver Type: | PIN/APD |
| Highlight: | 1310nm sfp epon,1310nm epon sfp,1310nm epon sfp transceiver |
||

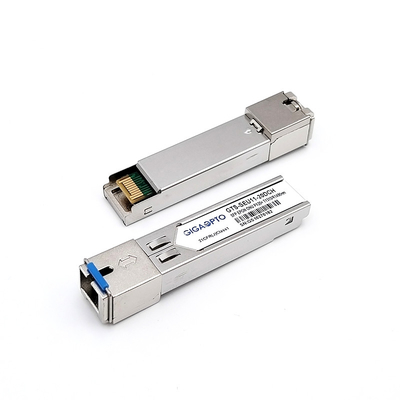

The EPON SFP module is a high-performance, cost-effective optical transceiver module specially designed to meet the requirements of EPON ONU and EPON OLT PX20+. It provides optimal performance and reliability for EPON applications. The module adopts a 1W low-power design and is as light as 20g, making it ideal for applications in various extreme temperature environments from -40°C to +85°C. It supports PIN/APD receiver types and provides excellent link performance and reliability. EPON SFP modules comply with XFP transceiver module MSA requirements and are perfect for EPON applications.
| Parameter | Value |
|---|---|
| Product Name | EPON SFP Module |
| Power Supply | 3.3V |
| Data Rate | 1.25Gbps |
| Size | 14.5mmx14.5mmx56mm |
| Fiber Type | Single Mode |
| Wavelength | 1310nm |
| Receiver Type | PIN/APD |
| Power Consumption | 1W |
| Optical Components | DML/EML |
| Feature | 1000BASE-PX20 |
| XFP Transceiver Module | Yes |
| ONU SFP Module | Yes |
| SC UPC Module | Yes |
Neutral EPON SFP modules are ideal for anyone requiring fast and reliable data transmission. With its single-mode fiber type, it offers data rates of 1.25Gbps, making it ideal for 1000BASE-PX20 applications. It also features low power consumption of only 1W and lightweight of only 20g, making it easy to install and maintain. Additionally, the neutral EPON SFP modules are CE, FCC, RoHs, TUV, UL certified, making them a reliable and safe choice for any user. With its SC UPC module design, it is ideally suited for any EPON SFP application.
EPON SFP Module are designed for EPON OLT/ONU applications. It is a small form-factor pluggable transceiver module for both EPON OLT and EPON ONU. It complies with IEEE 802.3-2005 10G EPON standards. It supports up to 1.25Gbps data rate and 20km transmission distance. The main features of our EPON SFP Module include:
Our EPON SFP Module are high-performance, cost-effective and reliable solutions for EPON OLT/ONU applications. We also offer customized EPON SFP Module to meet your specific requirements. Contact us now for more information.
Packaging and Shipping for EPON SFP Module
