1000BASE-PX20 Transceiver 20km SC Module EPON ONU SFP For FTTX

EPON ONU SFP 1000BASE-PX20 Transceiver 20km SC Module For FTTX

Description Of EPON ONU SFP

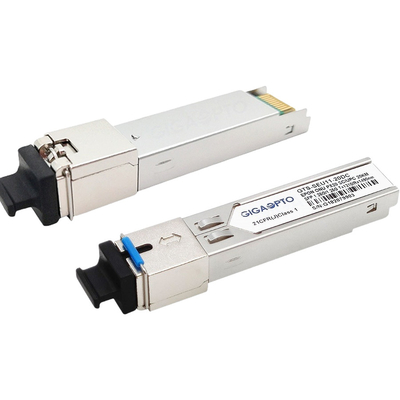

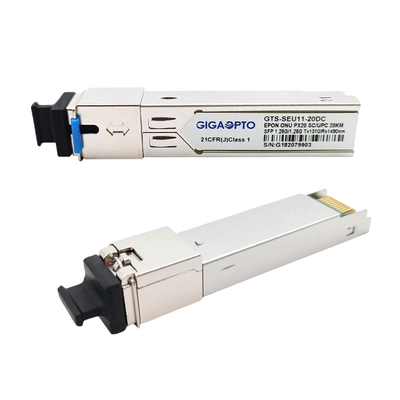

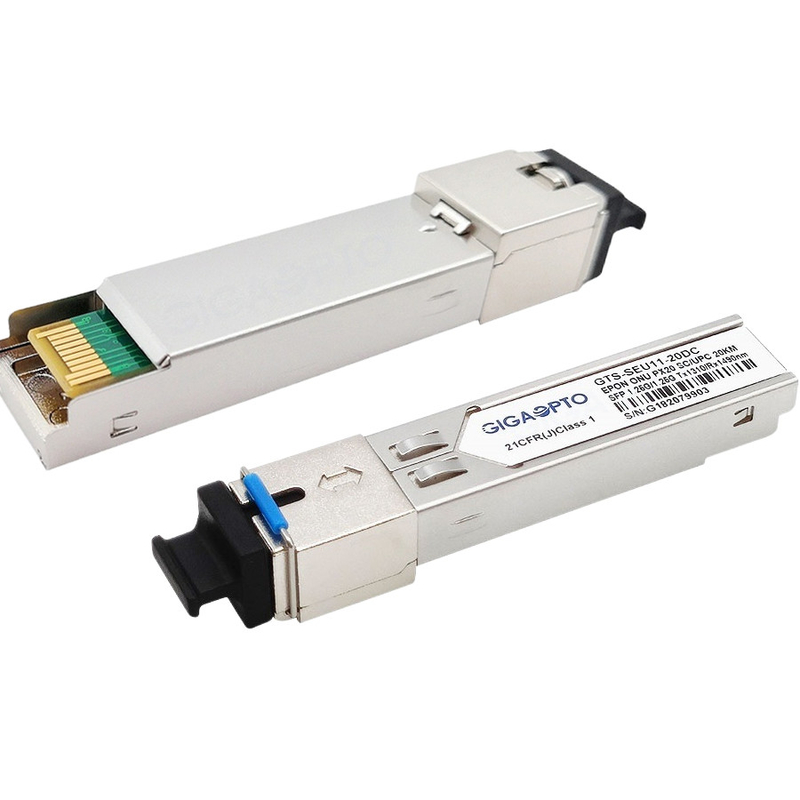

The EPON ONU SFP transceiver is small form factor pluggable module designed for Gigabit Ethernet Passive Optical Network (EPON) 20km transmission. It is Optical Network Unit (ONU) for IEEE Std 802.3ah^TM -2004 1000BASE-PX20 application.

The EPON ONU SFP module incorporates a 1310nm burst-mode transmitter and a 1490nm continuous-mode receiver. The transmitter section uses a 1310nm DFB laser, and the receiver section uses an integrated 1490nm InGaAs Pin photodiode and preamplifier mounted together. It has a function that indicates the receiver signal-detected status.

This EPON ONU SFP module is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to mainstream original transceivers such as ZTE/Huawei/Fiberhome/TPLink.

Specification Of EPON ONU SFP

Features Of EPON ONU SFP

• EPON ONU SFP 1000BASE-PX20 Transceiver
• Single fiber bi-directional data links
• 1310nm DFB laser transmitter and 1490nm PIN receiver
• 1.25Gbps burst mode transmission, 1.25Gbps continuous mode receiver data rate
• SC/UPC Receptacle Connector
• Single 3.3V power supply
• Digital diagnostic monitoring interface
• LVPECL compatible data input/output interface
• Provide TX burst mode signal detect function
• LVTTL transmitter laser fault alarm
• Low EMI and excellent ESD protection
• Class I laser safety standard IEC-60825 compliant
• Operating temperature range:Commercial: -5°C~70°C; Industrial: -40°C~85°C
• RoHS6 Compliance

Application Of EPON ONU SFP

• Gigabit Ethernet Passive Optical Networks (GEPON)
• Access Networks
• FTTX

Standards Of EPON ONU SFP

• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies with IEEE 802.3ah-2004
• Complies with FCC 47 CFR Part 15, Class B
• Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
• Complies with SFF-8472
• Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class 2.
• Compatible with Telcordia GR-468-CORE

Package Outline Of EPON ONU SFP

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)

FAQ

Q: Can you recommend some products that best meet my demands?
Yes, if you don't know which product is good, let us know your detailed requirements, and our engineers will recommend you a proper device. Or if you have a specification, just send it to me.

Q: What certification did you get?
Our product strictly operates the ISO9001:2008 quality control system and we passed the CE, FCC, ROHS, and SGS tests, you can trust us.

Q: What about the warranty?

3-year warranty for this EPON ONU SFP, and lifetime technical support.

Q: Does GigaOpto do OEM&ODM ?
Yes. We accept OEM & ODM

Q: How can I get a sample of this EPON ONU SFP to check your quality?

A free sample is available.
