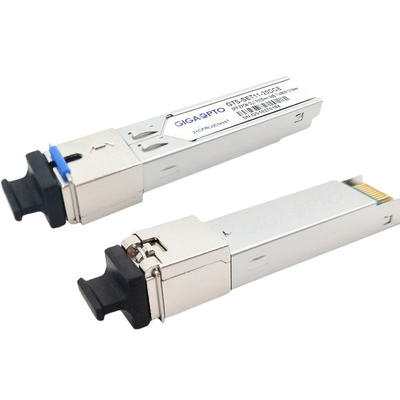

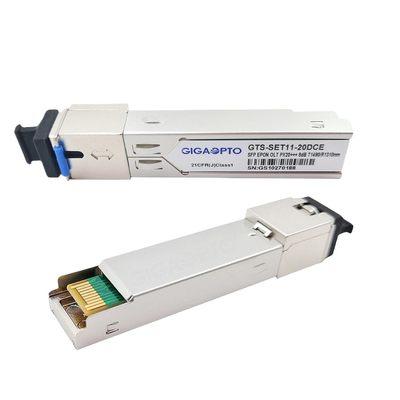

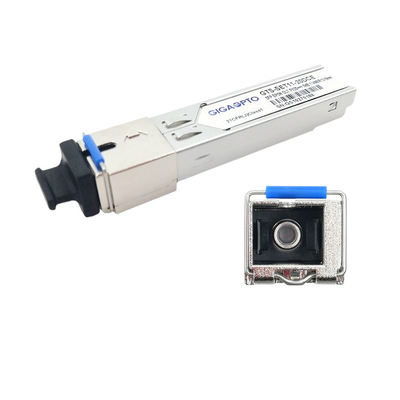

GEPON / FTTx EPON OLT SFP Module 1490nm TX 9dBm PX40 20km SC Transceiver

EPON OLT SFP Module 9dBm PX40 20km SC Transceiver

Description Of EPON OLT SFP Module 9dBm PX40 20km SC Transceiver

The EPON OLT SFP module transceiver is designed to support the EPON OLT application specified by the IEEE 802.3ah specifications. This EPON OLT SFP module consists of a 1490nm continuous-mode 1.25Gb/s DFB transmitter, 1310nm burst-mode 1.25Gb/s APD receiver, preamplifier and WDM filter in a high-integrated optical sub-assembly.

This EPON OLT SFP module is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to mainstream original transceivers such as ZTE/Huawei/Fiberhome.

Specification Of EPON OLT SFP Module 9dBm PX40 20km SC Transceiver

Features Of EPON OLT SFP Module 9dBm PX40 20km SC Transceiver

• Hot pluggable 9dBm EPON OLT SFP module
• SC/UPC receptacle
• Single fiber bi-directional data links with 1.25Gbps upstream/1.25Gbps downstream
• 1490nm DFB transmitter;1310nm APD Receiver
• Transmission distances up to 20km
• Single 3.3V power supply
• 2-wire interface for integrated digital diagnostic Monitoring
• Provide fast RSSI function
• LVPECL compatible data input/output interface
• Burst mode received signal strength indication output
• LVTTL transmitter disable control
• LVTTL transmitter laser fault alarm
• Low EMI and excellent ESD protection
• International Class 1 laser safety certified
• Ambient operating temperature: Commercial: -5°C~70°C;Industrial: -40°C~85°C
• Comply with MSA SFP specification SFF-8472

Application Of EPON OLT SFP Module 9dBm PX40 20km SC Transceiver

• Gigabit Ethernet Passive Optical Networks (GEPON)
• Fiber to the Home, Curb, Office (FTTx)

Standards Of EPON OLT SFP Module 9dBm PX40 20km SC Transceiver

• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies with IEEE 802.3ah
• Complies with FCC 47 CFR Part 15, Class B
• Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
• Complies with SFF-8472
• Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2.
• Compatible with Telcordia GR-468-CORE

FAQ

Q: Why choose us?

GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.

1. Competitive prices.

2. High-quality products and services.

3. Fully compatible (Cisco/Juniper/HP/Huawei/Alcatel-Lucent Nokia/H3C...)

4. Big capability of manufacture for 40K~100K pcs per month.

5. Independent R&D ability.

6. Keep stock, Fast delivery

Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C, and more.

Q: Can I have a sample order of this EPON OLT SFP Module 9dBm PX40 20km SC Transceiver? What is your MOQ?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.

Q: What are your payment terms?
Usually, we need prepayment by T/T, West Union or Paypal.

Could also support L/C, Credit terms.

Q: Could I return the products if there is a quality problem on this EPON OLT SFP Module 9dBm PX40 20km SC Transceiver?
Yes, if there is a quality problem happen, we could accept a free exchange.

Q: Could I use our own logo and label on this EPON OLT SFP Module 9dBm PX40 20km SC Transceiver?

Yes, we could provide an OEM service and make the products with your own label.
