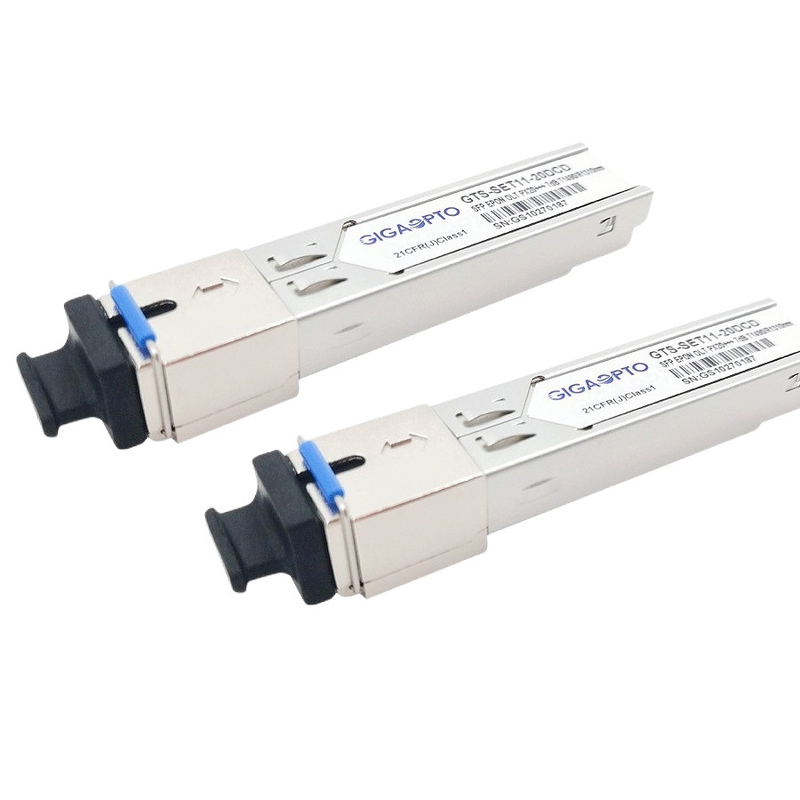

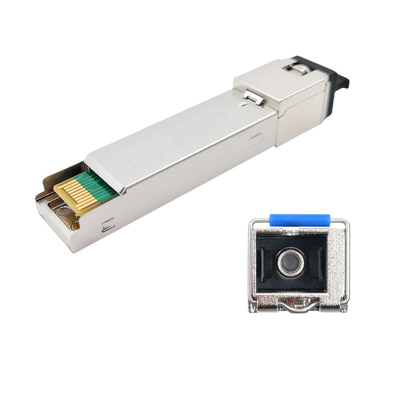

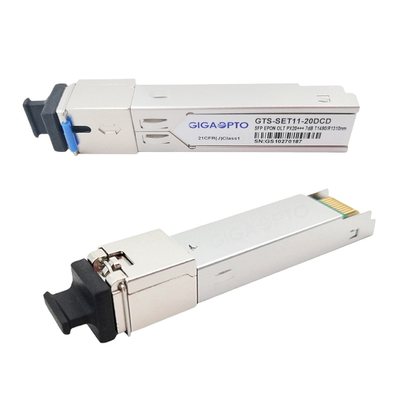

ZTE / Huawei / Fiberhome EPON OLT PX20+++ SFP 7dBm Transceiver Module 20km SC

TX1490nm/RX1310nm EPON PX20+++ OLT SFP 7dBm Transceiver Module 20km SC

Description Of EPON PX20+++ OLT SFP 7dBm Transceiver

The EPON PX20+++ SFP Transceiver is a high-performance transceiver module for single fiber communications using a 1490nm continuous-mode transmitter and a 1310nm burst-mode receiver. It is designed to meet IEEE802.3ah-2004 1000BASE-PX20+++ requirements and targets optical line terminal (OLT) applications.

The EPON PX20+++ module provides digital diagnostic information of its operating conditions and status, including transmitting power, laser bias current, module temperature, and supply voltage. Calibration and alarm/warning threshold data are written and stored in the internal memory (EEPROM). The memory map is compatible with SFF-8472.

This EPON PX20+++ SFP Transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to mainstream original transceivers such as ZTE/Huawei/Fiberhome.

Specification Of EPON PX20+++ OLT SFP 7dBm Transceiver

Features Of EPON PX20+++ OLT SFP 7dBm Transceiver

• EPON PX20+++ OLT SFP Transceiver
• Single fiber bi-directional data links asymmetric TX1250Mbps/RX1250Mbps application
• 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
• SC/UPC connector
• Single 3.3V power supply
• DDMI function available with internally calibrated mode
• Digital burst RSSI function to monitor the input optical power level
• LVPECL compatible data input/output interface
• LVTTL transmitter disable control
• LVTTL transmitter laser fault alarm
• Low EMI and excellent ESD protection
• International Class 1 laser safety certified
• Operating temperature range:Commercial: -5°C~70°C;Industrial: -40°C~85°C
• RoHS6 Compliance

Application Of EPON PX20+++ OLT SFP 7dBm Transceiver

• Gigabit Ethernet Passive Optical Networks (GEPON)
• Other Optical Links

Standards Of EPON PX20+++ OLT SFP 7dBm Transceiver

• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies with IEEE 802.3ah
• Complies with FCC 47 CFR Part 15, Class B
• Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
• Complies with SFF-8472
• Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class 2.
• Compatible with Telcordia GR-468-CORE

Package Outline Of EPON PX20+++ OLT SFP 7dBm Transceiver

Dimensions are in millimeters. All dimensions are ±0.2mm unless otherwise specified. (Unit: mm)

FAQ

Q: Why choose us?

GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.

1. Competitive prices.

2. High-quality products and services.

3. wide compatibility such as Cisco, Juniper, HP, Huawei, Alcatel, H3C and more.

4. Big capability of manufacture for 40K~100K pcs per month.

5. Independent R&D ability.

6. Keep stock, Fast delivery

Q: What is the operating temperature range of your EPON PX20+++ OLT SFP 7dBm Transceiver?

Commercial temperature range (COM): 0 to 70°C(32 to 158°F)

Extended temperature range (EXT): -20 to 85°C(23 to 185°F)

Industrial temperature range (IND): 40 to 85°C(-40 to 185°F)

Storage temperature range: -40 to +85°C(-40 to 185°F)

Q: What is the standard warranty time for your EPON PX20+++ OLT SFP 7dBm Transceiver?

All products purchased from GigaOpto shall be free from defects in material and workmanship for a period of time from the date of purchasing,

This limited warranty is applicable solely to the original purchaser and is not transferable.
This warranty is expressly conditioned upon proper storage, installation, connection, operation, and maintenance of products in accordance with their written specifications.

Three-Year Warranty Examination, repair, and replacement parts are provided free.
