Product Details:
|
| Product Name: | EPON SFP Module | Type: | OLT PX20++ |
|---|---|---|---|
| Reach: | 20km | Connector: | SC |
| Application: | EPON/FTTx | Keywords: | OLT-GSFP-20++ |
| Highlight: | 20km OLT-GSFP-20++,DOM OLT-GSFP-20++,BDCOM EPON SFP Module |
||

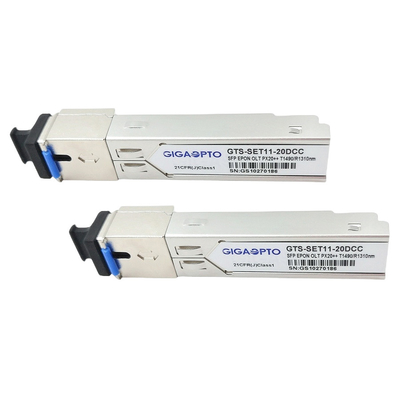

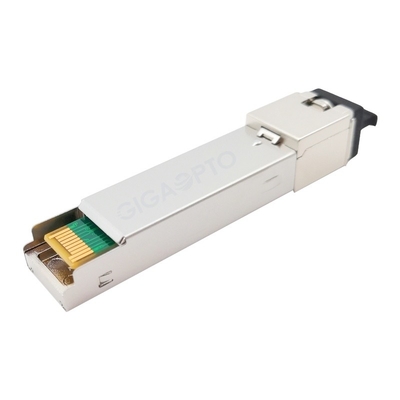

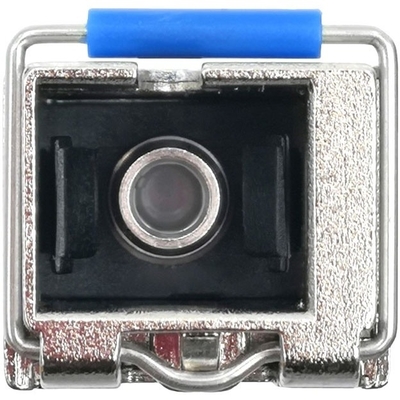

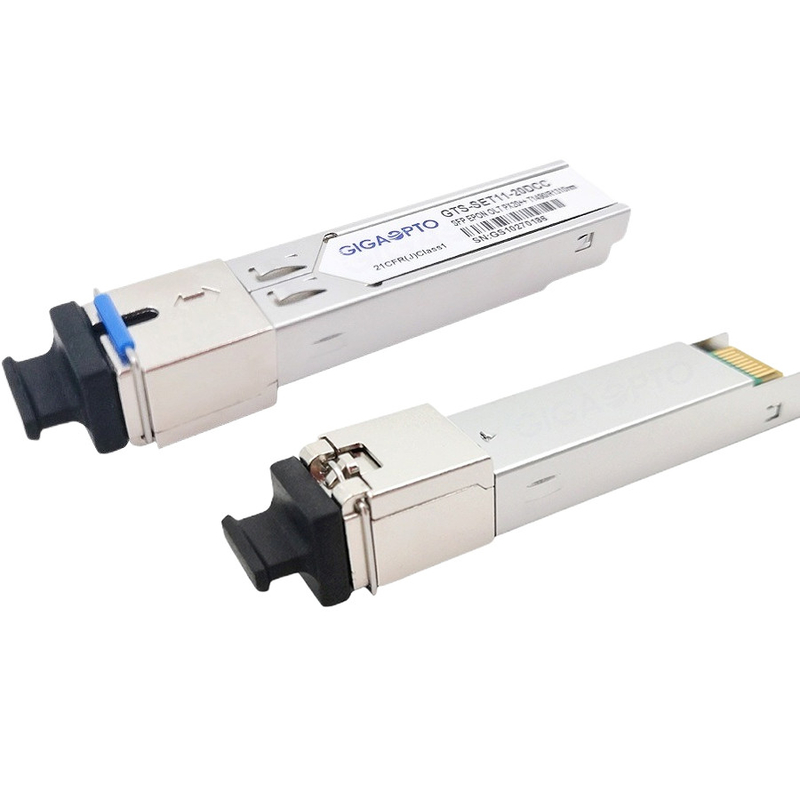

OLT-GSFP-20++ EPON SFP 20km Module For BDCOM SC DOM
Description Of BDCOM OLT-GSFP-20++ Compatible SFP Module
The BDCOM OLT-GSFP-20++ compatible SFP module is designed for Gigabit Ethernet Passive Optical Network (GEPON) applications, it is fully compliant with IEEE 802.3ah-2004 1000BASE-PX20++ specifications.
This OLT-GSFP-20++ SFP transceiver features with a 1490nm continuous-mode DFB transmitter and a 1310nm APD burst-mode receiver, which provides 20km links over SMF with SC simplex connector at 1.25Gbps symmetric downstream and upstream data rate.
Specification Of BDCOM OLT-GSFP-20++ Compatible SFP Module
| Compatible Brand | BDCOM | Compatible Part No. | OLT-GSFP-20++ |
| Type | EPON OLT SFP PX20++ | Data Rate | 1.25Gbps |
| Connector Type | SC/UPC | Transmission | 20km |
| DDM/DOM | Support (default) | Fiber Mode | Single Mode Fiber |
| Wavelength | TX1490nm/RX1310nm | Operating Temperature | Standard -5 to 70°C |
| Power Voltage | 3.3V | Supply Current | 500mA |
| Transmitter Type | DFB | Receiver Type | Burst APD |
| TX Average Power | +4 to +8dBm | RX Sensitivity | <-32dBm |
| Extinction Ratio | >9dB | Overload | >-6dBm |
| Protocols | SFP MSA SFF-8074i, IEEE 802.3ah, RoHS6 | ||
Features Of BDCOM OLT-GSFP-20++ Compatible SFP Module
Application Of BDCOM OLT-GSFP-20++ Compatible SFP Module
Package Outline Of BDCOM OLT-GSFP-20++ Compatible SFP Module
Dimensions are in millimeters. All dimensions are ±0.2mm unless otherwise specified. (Unit: mm)
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field.
1. We promise all the advertised optical transceivers are brand new with new components and parts.
2. We never use old and refurbished materials.
3. All the optical transceivers have been through functional tests and aging tests.
4. We provide 3 years warranty for all the optical transceivers from the date of shipment.
Q: Please explain how you ensure compatibility for the brands:
1. Experience: We have an experienced engineering team with over 15 years of compatibility for brands.
2. Testing Facilities: We are able to access massive major manufacturers' switches, routers, NICs ...to verify the compatibility.
3. Expertise: We have a group of experts who have been focusing on hardware, software, and coding compatibility, and have always been analyzing the different brands' newly released firmware.
4. Strategic Loyalty Customers: Many of our customers work very closely with us on newly released OEM equipment and help us to expand our compatibility matrix.
5. Connections: We have many good connections to understand and learn firsthand information about the compatibility trend in the market.
Q: What is your after-sales service? How about the warranty?
All our customers can enjoy the after-sales service for three-year-warranty and lifetime technical support.
Q: Can I have a sample order of this BDCOM OLT-GSFP-20++ compatible SFP module? What is your MOQ?
Yes, we welcome sample orders to test and check quality. MOQ is 1 for normal products.
