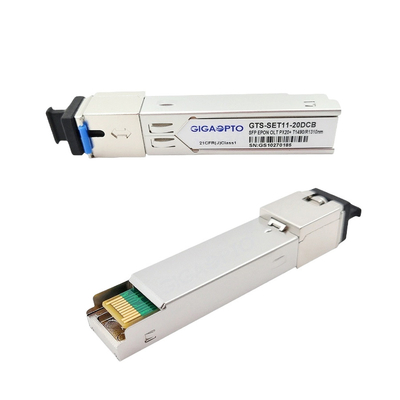

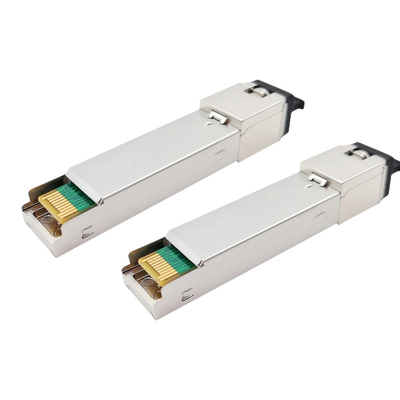

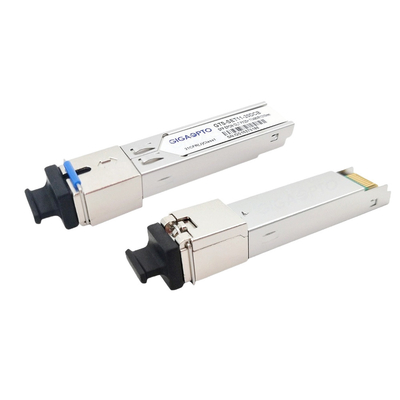

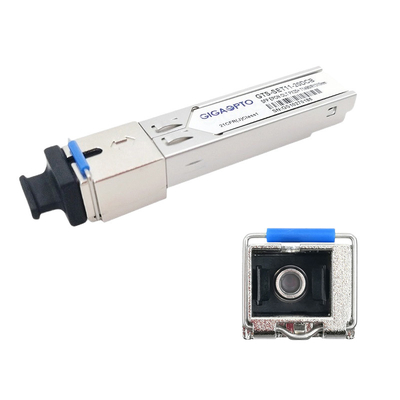

SFP Transceiver EPON OLT PX20+ For Huawei 34060500 20km

SFP Transceiver EPON OLT PX20+ For Huawei 34060500 20km
SFP Transceiver EPON OLT PX20+ For Huawei 34060500 20km SFP Transceiver EPON OLT PX20+ For Huawei 34060500 20km SFP Transceiver EPON OLT PX20+ For Huawei 34060500 20km SFP Transceiver EPON OLT PX20+ For Huawei 34060500 20km

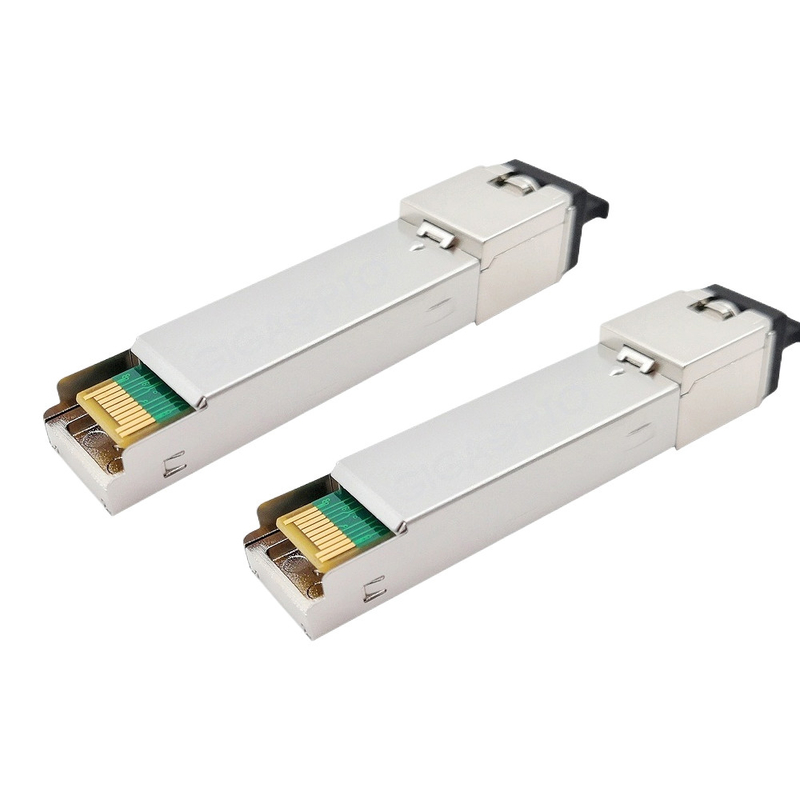

Large Image :  SFP Transceiver EPON OLT PX20+ For Huawei 34060500 20km

Product Details:
Place of Origin: China
Brand Name: Generic
Certification: CE,FCC,RoHs, TUV,UL
Model Number: 34060500
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiable
Packaging Details: Single Package,10 or 20pcs per Tray,30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 2-3days
Payment Terms: T/T, L/C
Supply Ability: 50,000pcs/month

SFP Transceiver EPON OLT PX20+ For Huawei 34060500 20km

Description
Product Name: EPON OLT SFP ODN Class: PX20+
Transmission: 20km Application: GEPON/FTTx
Connector: SC Keywords: Epon Olt Sfp, 34060500
Highlight:

FTTx EPON OLT PX20+

,

20km EPON OLT PX20+

,

Huawei 34060500 EPON SFP Module

EPON OLT SFP PX20+ Transceiver For Huawei 34060500 20km





Description Of Huawei 34060500 Compatible OLT SFP



The Huawei 34060500 compatible transceiver is a high-performance EPON OLT SFP module designed for Gigabit Ethernet Passive Optical Network applications at 1.25Gbps downstream and 1.25Gbps upstream. It is fully compliant with IEEE 802.3ah-2004 1000BASE-PX20+ specifications.



The EPON OLT SFP transmitter section uses a 1490nm DFB laser and an integrated laser driver which is designed to be Class 1 eye safety per IEC825 and CDRH standards. The laser driver includes APC and temperature compensation functions, which are used for keeping the launch optical power and extinction ratio constant over temperature and aging. The EPON OLT SFP receiver has a hermetically packaged APD-TIA (trans-impedance amplifier) pre-amplifier and a limiting amplifier with LVPECL-compatible differential outputs. The Receiver Loss of Signal (Rx_LOS), Transmit Disable (Tx_DIS), Transmit Fault (Tx_FAULT) and the monitor and control functions are LVTTL compatible.



This EPON OLT SFP is functionally equivalent to the original Huawei 34060500 transceiver and suitable for Huawei FTTx networks.



Specification Of Huawei 34060500 Compatible OLT SFP



Compatible Brand Huawei Compatible Part No. 34060500
Type EPON OLT SFP PX20+ Data Rate 1.25G
Connector SC Transmission 20km
DDM Support (default) Media Type single-mode fiber
Center Wavelength TX1490nm/RX1310nm Operating Temperature -5 to 70°C
Power Supply Voltage 3.3V Total Supply Current 500mA
LD Type 1490nm DFB PD Type APD
TX Output Power +2 to +7dBm RX Sensitivity <-30dBm
Extinction Ratio >9dB Overload >-6dBm
Protocols SFP MSA, SFF-8472, IEEE 802.3ah-2004



Features Of Huawei 34060500 Compatible OLT SFP



  • Hot Pluggable EPON OLT SFP
  • Functionally equivalent to original Huawei 34060500
  • Single fiber bi-directional data links symmetric 1.25Gbps application
  • 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
  • Transmission distance up to 20km
  • SC/UPC Connector
  • Single 3.3V power supply
  • Compatible IEEE 802.3ah 1000BASE-PX20+ GEPON application
  • Digital diagnostic monitoring interface
  • Burst Digital Receiving Signal Strength Indication (RSSI)
  • LVPECL compatible data input/output interface
  • LVTTL transmitter disable control
  • LVTTL transmitter laser fault alarm
  • All-metal housing for superior EMI performance
  • Low power consumption
  • Class I laser safety standard IEC-60825 compliant
  • Operating case temperature: Standard: -5°C~70°C
  • RoHS6 Compliant



Application Of Huawei 34060500 Compatible OLT SFP



  • Gigabit Ethernet Passive Optical Networks (GEPON)
  • FTTx



Package Outline Of Huawei 34060500 Compatible OLT SFP

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)

SFP Transceiver EPON OLT PX20+ For Huawei 34060500 20km 0
