Product Details:
|
| Product Name: | 6G SMPTE Video Dual Receivers Module | Max Speed: | 6G |
|---|---|---|---|
| Module Type: | 2RX | Center Wavelength: | 1310nm-RX1, 1310nm-RX2 |
| Reach: | 10km | Connector: | Dual LC Connector |
| Temperature: | Commercial | Keywords: | 6G Dual Receivers SFP |

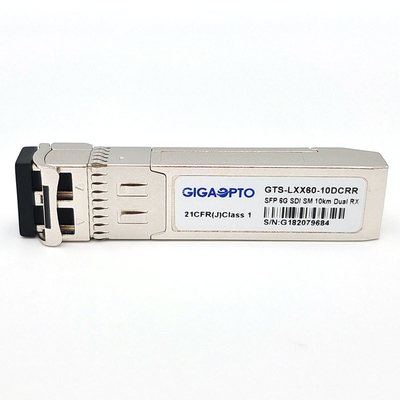

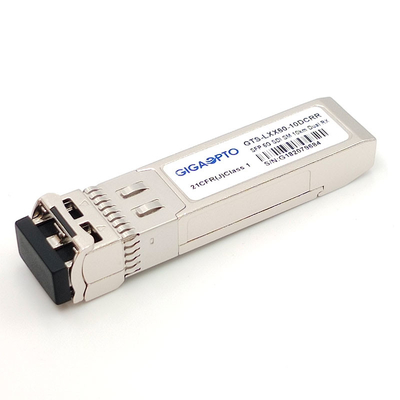

6G SDI SMPTE SFP PIN 10km SMF Duplex LC Dual Receivers Modules Non-MSA
Functional Specification
| Item Name | 6G-SDI SFP Dual-Receiver | P/N | GTS-LXX60-10DCRR |
| Form Factor | 2-port Receiver | Bit-Rate (Gbps) | 50Mbit/s - 5.94Gbit/s |
| Video Pathological Patterns | Support as default | Environment | Operating:0 to 70°C (32 to 158°F) |
| Center Wavelength (RX) | 1310nm | Optical Transmission | 10km |
| Connector Type | LC Duplex PC | Cable Type | SMF |
| Transmitter | N/A | Receivers Type | PIN |
| Power Supply Voltage | 3.3V | Supply Current | 300mA (Typ.) |
| Protocols | SFP MSA | Pin Assignment | NON-MSA |
| Receiver Sensitivity ( PRBS ) | <-15dBm | Overload | > 0dBm |
| DIGITAL DIAGNOSTIC (DDM) | With | Unit Weight | 25gram |
| OEM/ODM | Support | Warranty | 3-year |
| Application | SD/HD/3G/6G SDI | ||
Description
Gigaopto's GTS-LXX60-10DCRR is designed for dual channel applications to receive optical serial digital signals as defined in SMPTE 297-2006. It supports bit rates from 50Mbps to 5.94Gbps.
This dual receivers module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M,SMPTE 424M and ST-2081 serial rates.
It include two receivers, each consists of a 1310nm PIN photodiode integrated with a trans-impedance preamplifier(TIA), a max link reach is up to 10km with duplex LC connector.
The receivers module is full compatible with SFP Multi-Source Agreement (MSA) and SFF-8472
Features
Applications
PIN Definition
