Product Details:
|
| Item Name: | 12G-SDI BiDi SFP+ | Data Rate: | 12G |
|---|---|---|---|
| Wavelength: | 1330nm -TX/1270nm -RX | Connector: | Simplex LC |
| Max Cable Transmission: | 10km | OEM/ODM: | Supported |
| Keywords 1: | 12G-SDI BIDI Optical Transceiver, | Keywords 2: | 12G Bidirectional SFP+ |
| Highlight: | SMPTE Video SFP Transceiver,13T Video SFP Transceiver,BIDI Optical Transceiver |
||
10KM BiDi 1330nm/1270nm 12G-SDI SFP+ Optical Transceiver MSA Pinout
Functional Specification
| Product Name | 12G UHD Video SFP | Data Rate | 0.27~11.88Gbps |
| Module Type | Transceiver | MSA/Non-MSA | MSA |
| Packing | SFP+ | Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Wavelength | 1330nm -TX/1270nm -RX | Max Distance | 10km |
| Interface | Simplex LC | Media | single-mode fiber |
| Transmitter | DFB | Receiver | PIN |
| Power Supply Voltage | +3.3V | Current | 280mA (Typical.) |
| Average Output Power | -5~+1dBm | RX Sensitivity@11.88Gbps | < -11dB |
| RX Sensitivity @ 5.94Gbps | < -13dB | RX Sensitivity@ 2.97Gbps | < -13dB |
| Extinction Ratio | >3.5dB | RX Saturation | > 1.0 dBm |
| Power Consumption | ≤1.0W | Digital Diagnostic | Support |
| OEM/ODM | Yes | Warranty | 3-year |
| Protocols | SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST292-1(HD-SDI), and ST 259 (SD-SDI). | ||
Description

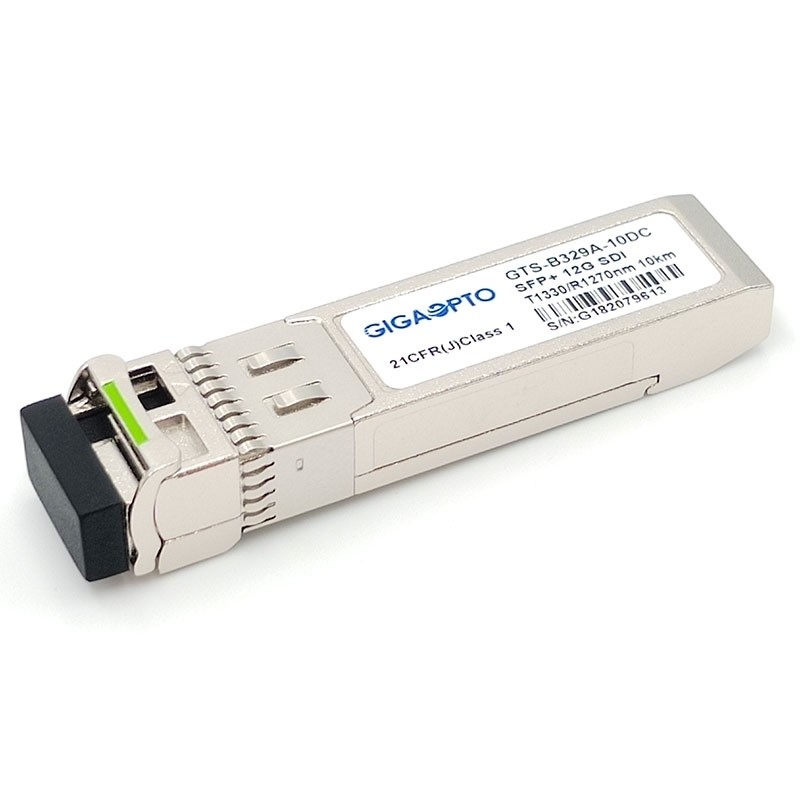

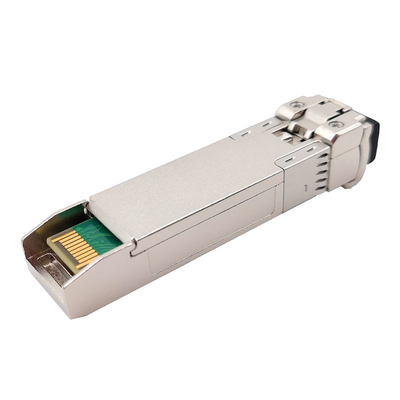

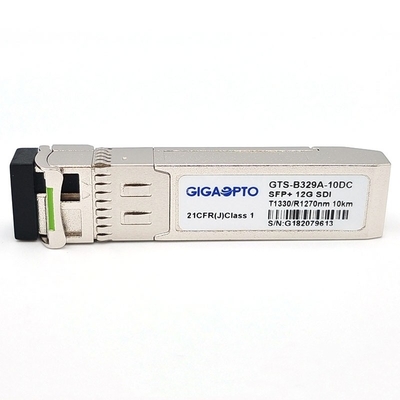

Gigaopto’s GTS-B329A-10DC 12G BiDi SFP+ Optical transceiver is designed for 12G-SDI bidirectional transmission links reach up to 10km over SMF with wavelength 1330nm TX/1270nm RX.
It supports up to 11.8Gbps and is specifically designed to transmit the pathological patterns for HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI.
The transceiver includes three sections: a DFB laser, a PIN photodiode integrated with a trans-impedance pre-amplifier (TIA) , Reclocker ,and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability.
The module provides digital diagnostic information of its operating conditions and status, including transmitting power, laser bias current, module temperature, and supply voltage. Calibration and alarm/warning threshold data are written and stored in the internal memory (EEPROM).
Features
Application
PIN Definition
