Product Details:
|
| Product Name: | 12G Video SFP+ Single Transmitter | Data Rate: | 12G |
|---|---|---|---|
| Wavelength: | 1310nm -TX | Connector: | Simplex LC |
| Max Transmission: | 10km | DOM: | Yes |
| Warranty: | 3-year | Keywords 1: | SFP+ Single Transmitter |
| Keywords 2: | 12G-SDI SFP+ TX | ||
| Highlight: | 1310nm Video SFP Transceiver,10km Video SFP Transceiver,LC Single Transmitter Module |
||
12G-SDI SFP+ TX Single Optical Transmitter 10km LC DOM MSA
Functional Specification
| Product Name | 12G Video SFP+ | Data Rate | 270Mbps to 11.88Gbps |
| Module Type | Transmitter | MSA/Non-MSA | MSA |
| Form Factor | SFP+ | Operating Temperature | 0 to 70°C (32 to 158°F) |
| Wavelength | 1310nm -TX | Max Transmission | 10km |
| Connector | Simplex LC | Fiber Type | single-mode fiber |
| LD Type | DFB | Video Pathological Patterns Support | Yes |
| Supply Voltage | 3.3V | Supply Current | 160mA (Typ.) |
| TX Power | -4 ~ +1dBm | DOM | Supported |
| Extinction Ratio | >3.5dB | OEM/ODM | Supported |
| Power Consumption | ≤0.6W | Warranty | 3 years |
| Protocols | SFP+ MSA | ||
| Application | SD/HD/3G/6G/12G SDI | ||
Description

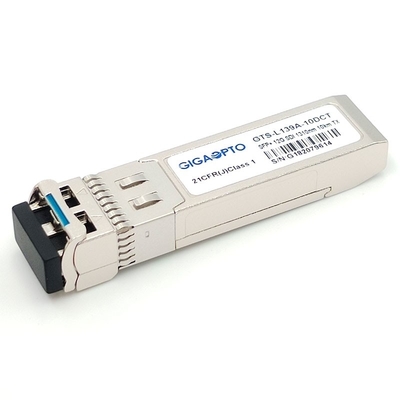

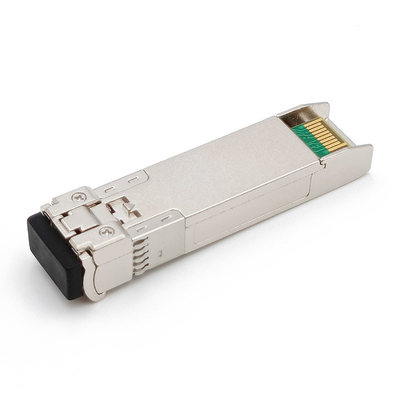

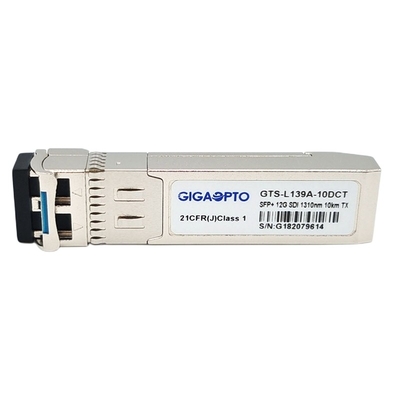

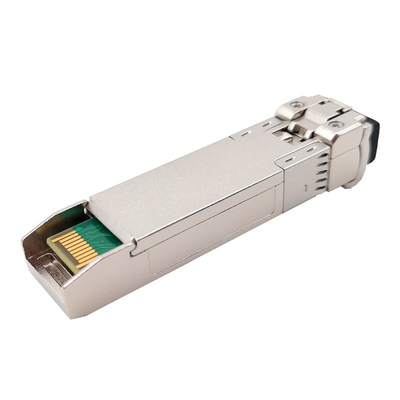

Gigaopto’s GTS-L139A-10DCT Single TX SFP+ Transmitter, which is specially designed for broadcast video transmission applications over SMF via 1310nm Wavelength with a simplex LC connector. It supports data rates from 270Mbps to 11.88Gbps, which is ideal for the application of 12G-SDI UHD video, 6G-SDI ultra-high-definition digital video, 2.97G 3G-SDI super high definition digital video, 1.485G HD-SDI high-definition digital video, and 270Mbps SDI standard definition digital video. It is compliant with SMPTE ST 2082-1 (12G UHD - SDI), ST 2081-1 (6G UHD - SDI), ST424 (3G SDI), ST 292-1 (HD - SDI), and ST259 (SD - SDI).
The transmitter is compliant with SFP+ Multi-Source Agreement (MSA)
Features
Application
PIN Definition
