Product Details:
|
| Product Name: | 12G-SDI Bidirectional SFP+ | Data Rate: | 12Gb/s |
|---|---|---|---|
| Wavelength: | 1270nm -TX/1330nm -RX | Interface Type: | Simplex LC |
| Max Transmission: | 10km | Warranty: | 3-Year |
| Keywords 1: | 12G-SDI BIDI SFP+ 10km Optical Transceiver | Keywords 2: | SMPTE 12G HD Video Transceiver Module |
| Highlight: | 12G Video SFP Transceiver,SDI Video SFP Transceiver,BiDi SMPTE |
||

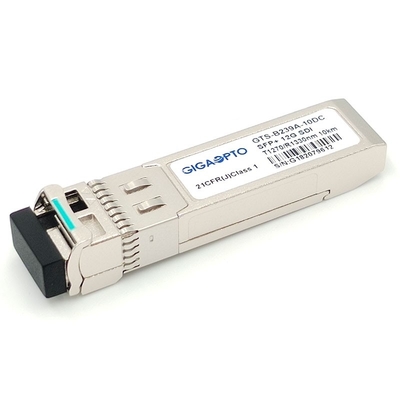

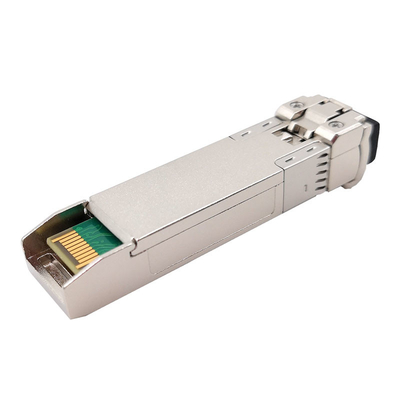

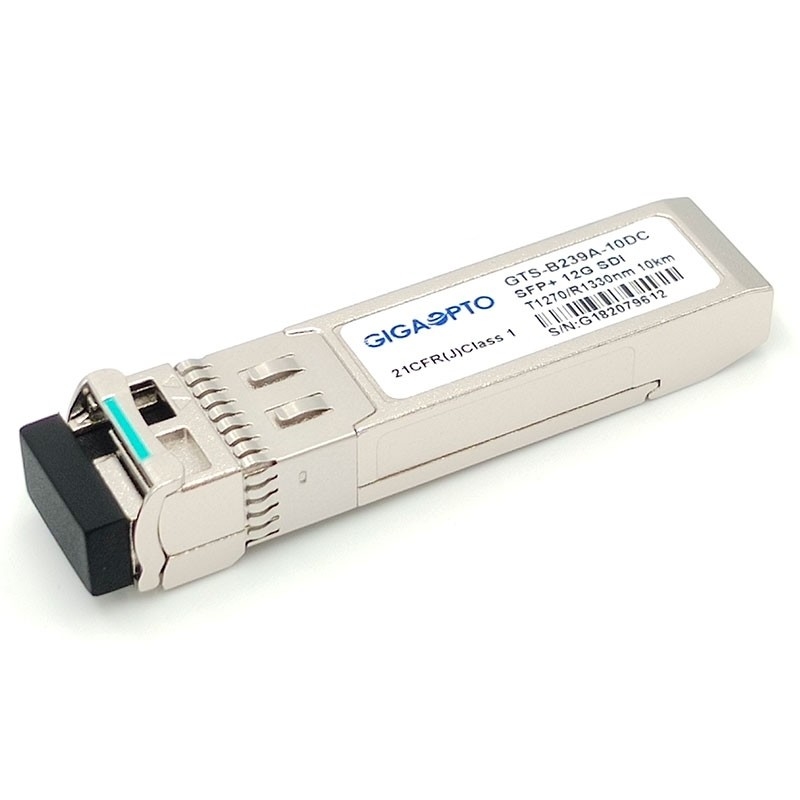

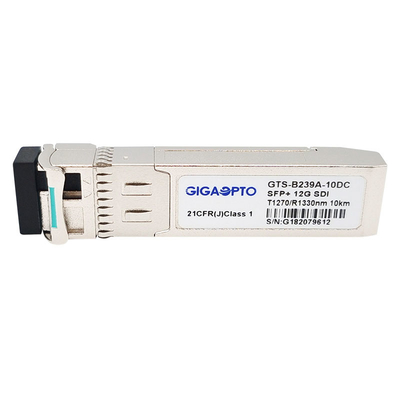

10km BiDi 1270nm/1330nm 12G-SDI SFP+ Optical Transceiver MSA Pinout
Functional Specification
| Product Name | 12G-SDI BiDi SFP | Data Rate | 0.27~11.88Gbps |
| Module Type | Transceiver | MSA/Non-MSA | MSA |
| Form Factor | SFP+ | Operating Temperature | 0 to 70°C (32 to 158°F) |
| Wavelength | 1270nm -TX/1330nm -RX | Max Reach | 10km |
| Connector | Simplex LC | Fiber Type | single-mode fiber |
| LD Type | DFB | PD Type | PIN |
| Supply Voltage | 3.3V | Supply Current | 280mA (Typ.) |
| TX Power | -5 ~ +1dBm | Sensitivity @11.88Gbps | < -11dB |
| Sensitivity @ 5.94Gbps | < -13dB | Sensitivity @ 2.97Gbps | < -13dB |
| Extinction Ratio | >3.5dB | Receiver Overload | > 1.0dBm |
| Power Consumption | ≤1.0W | Warranty | 3 years |
| OEM/ODM | Supported | Weight | 0.025kg |
| Protocols | SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST292-1(HD-SDI), and ST 259 (SD-SDI). | ||
Description
Gigaopto’s GTS-B239A-10DC is designed for 12G-SDI bidirectional transmission links reach up to 10km over a single mode fiber.
It is compliant with SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI. It supports up to 11.8Gbps and is specifically designed to transmit the pathological patterns for HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI.
The transceiver includes three sections: a DFB laser, a PIN photodiode integrated with a trans-impedance pre-amplifier (TIA) , Reclocker ,and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C interface.
Features
Application
PIN Definition
