Product Details:
|
| Item Name: | 6G Ultra-SDI Dual Transmitters Module | Bit Speed(Gbps): | 50Mbps - 5.94Gbps |
|---|---|---|---|
| Module Type: | Dual TX | Form Factor: | SFP |
| Center Wavelength: | 1310nm_TX1/1310nm_TX2 | Optical Connector: | Duplex LC Receptacle |
| Fiber Link Distance: | 10km | Pin Assignment: | Non MSA |

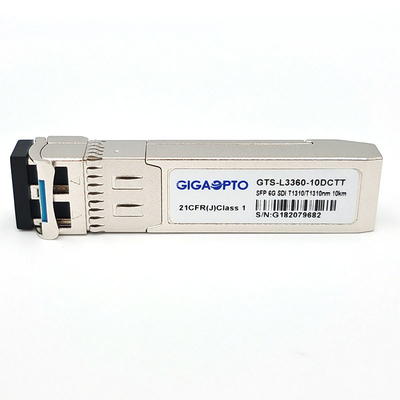

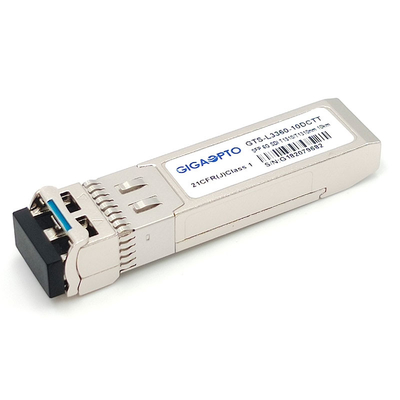

6G SDI SMPTE SFP 1310nm 10km SMF Duplex LC Dual Transmitters Modules Non-MSA
Functional Specification
| Product Name | 6G SDI Dual Transmitters Module | P/N | GTS-L3360-10DCTT |
| Module Type | Dual Transmitters | Max Bit Rate | 5.94Gbps |
| Form Factor | SFP | Pin Assignment | Non-MSA Pinout |
| Center Wavelength (TX) | TX1_1310nm/TX2_1310nm | Max Fiber Distance | 10km @ G.652 |
| Interface | Duplex LC receptacle | Cable Type | SMF |
| Transmitters | DFB Laser | Receiver Part | N/A |
| Power Supply Voltage | 3.3V | Supply Current | 300mA (Typ.) |
| TX Out Power (dBm) | -6~0 dBm | Extinction Ratio | >5dB |
| Digital Diagnostic | Support (default) | Environment | Commercial |
| OEM/ODM | Supported | Warranty | 3 years |
| Application | SD/HD/3G/6G SDI | ||
Description
The GTS-L3360-10DCTT is a dual channel optical single mode transmitters module for video transmission applications over 10km transmission on SMF via 1310nm Wavelength with a duplex LC connector. It supports the data rates from 50Mb/s to 5.94Gb/s. This dual transmitter module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M, SMPTE 424M and ST-2081 serial rates.
It is a dual channel optical transmitter module. Each channel consists of two sections:a DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements.
The double transmitter module is compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Features
Applications
PIN Definition
