Product Details:
|
| Item Name: | 6G Ultra-SDI Single Receiver | Bandwidth(Gbps): | 50Mbps - 5.94Gbps |
|---|---|---|---|
| Module Type: | PIN Receiver | Form Factor: | SFP |
| Wavelength: | 1310nm | Interface: | Simplex LC |
| Cable Length: | 10km | Pin Assignment: | Non MSA |

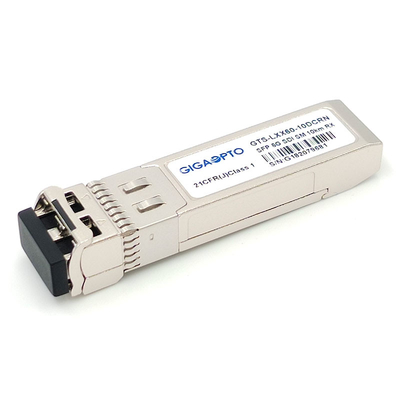

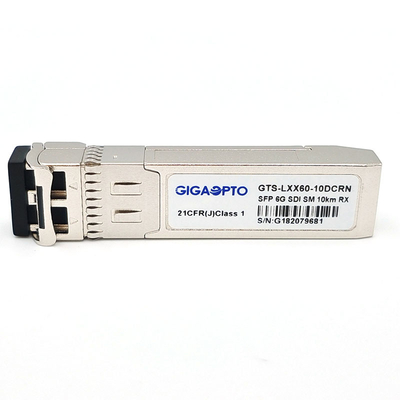

6G SDI SMPTE SFP PIN 10km SMF LC Single Receiver Modules Non-MSA
Functional Specification
| Name | 6G Ultra-SDI Single Receiver | Max Bit Rate | 5.94Gbps |
| Packaging | SFP | Pin Assignment | Non MSA Pin-out |
| Video Pathological Patterns | Support | Operating Temperature | Commercial /Industrial |
| Center Wavelength (RX) | 1310nm-RX | Cable Link Length | 10km @ G.652 |
| Connector Type | LC Simplex | Cable Type | single-mode fiber |
| TX Laser Part | N/A | Receiver Type | PIN photo-detector |
| Power Supply Voltage | 3.3V | Supply Current (Typical) | 150mA |
| Protocols | SFP MSA | Rx Saturation | > 0dBm |
| Sensitivity ( PRBS ) | SD-SDI:<-20dBm; HD-SDI:<-20dBm; 3G-SDI:<-20dBm | ||
| Sensitivity(Pathological) | SD-SDI:<-16dBm; HD-SDI:<-15dBm; 3G-SDI:<-14dBm | ||
| Digital Diagnostic | With | Warranty | 3 years |
| OEM/ODM | Supported | MTBF | 1,000,000Hours |
| Application | SD/HD/3G/6G SDI | ||
Description
Gigaopto’s GTS-LXX60-10DCRN 6G Video SFP Single receiver Module is designed for single-channel video transmission applications. It supports the data rates from 50Mb/s to 5.94Gb/s. This receiver module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M and ST-2081 serial rates. A max transmission can reach up to 10km over single mode fiber via 1310nm Wavelength with a simplex LC connector
The receiver consists of a PIN photodiode integrated with a trans-impedance preamplifier(TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The receivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
