Product Details:
|
| Item Name: | 6G SDI SMPTE Receiver | Max Data Rate(Gbps): | 5.94Gbps |
|---|---|---|---|
| Module Type: | PIN Single Receiver | Wavelength: | 1310nm |
| Interface: | LC Receptacle | Distance: | 10km |
| Pin Assignment: | MSA | Keywords: | ST2081 Video SFP |
6G SDI SMPTE SFP PIN 10km SMF LC Single Receiver Modules MSA
Functional Specification
| Product Name | 6G SDI Single Receiver | Data Rate | 5.94Gbps |
| Package Type | SFP | Pin Assignment | MSA |
| Video Pathological Patterns Support | Yes | Operating Temperature | 0 to 70°C |
| Wavelength | 1310nm-RX | Reach | 10km @ G.652 |
| Optical Connector | LC Simplex | Fiber Type | single-mode fiber |
| Transmitter | N/A | Receiver Type | PIN |
| Power Supply Voltage | 3.3V | Supply Current (Typical) | 150mA |
| Protocols | SFP MSA | Rx Overload | > 0dBm |
| Rx Sensitivity ( PRBS ) | SD-SDI:<-20dBm; HD-SDI:<-20dBm; 3G-SDI:<-20dBm | ||
| Rx Sensitivity(Pathological) | SD-SDI:<-16dBm; HD-SDI:<-15dBm; 3G-SDI:<-14dBm | ||
| DDM | With | Warranty Time | 36 months |
| OEM/ODM | Supported | Weight | 0.025kg |
| Application | SD/HD/3G/6G SDI | ||
Description

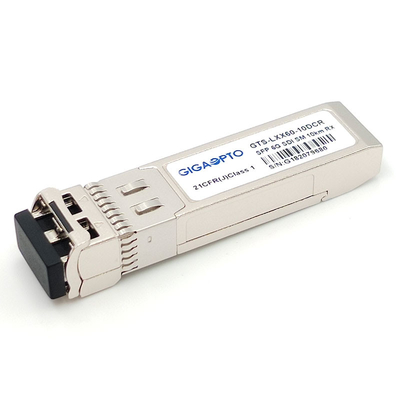

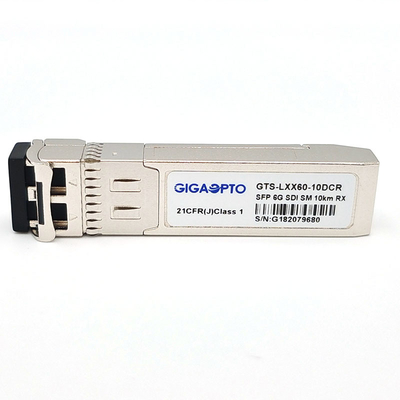

Gigaopto’s GTS-LXX60-10DCR 6G Video SFP Single-receiver Module is designed for single-channel video transmission applications over 10km transmission on SMF via 1310nm Wavelength with a simplex LC connector. It supports the data rates from 50Mb/s to 5.94Gb/s. This receiver module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M and ST-2081 serial rates.
The receiver consists of a PIN photodiode integrated with a trans-impedance preamplifier(TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The receivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Features
Applications
