Product Details:
|
| Item: | 6G SDI CWDM Single Transmitter | Bandwidth(Gb/s): | 50Mb/s - 5.94Gb/s |
|---|---|---|---|
| Form Factor: | SFP | Wavelength(TX): | 1270~1450nm CWDM |
| Connector: | LC Simplex | Reach: | 20km |
| Pin Assignment: | Non-MSA | Highlight: | DVI CWDM Single Transmitter |

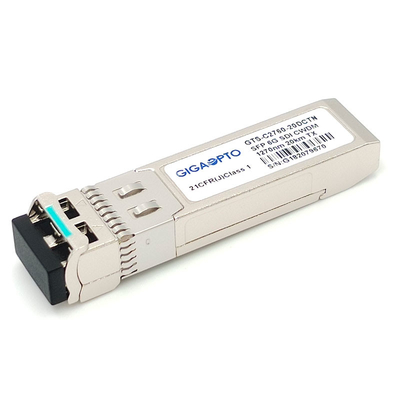

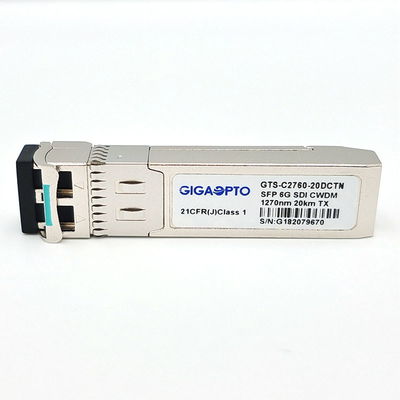

6G SDI CWDM 1270nm-1450nm SFP Single Transmitter Module 20km SMF LC DDM Non MSA
Functional Specification
| Item Name | 6G-SDI CWDM Single Transmitter | Part Number | GTS-Cxx60-20DCTN |
| Band Width (Gbps) | 50Mbps - 5.94Gbps | MSA/Non-MSA | Non MSA Pinout |
| Form /Technology | SFP/Single TX | Temperature | 0 to 70°C (32 to 158°F) |
| Wavelength (TX) | 1270nm~1450nm CWDM | Fiber Distance | 20km |
| Connector | LC Simplex UPC | Fiber Type | G.652 SMF |
| Transmitter | CWDM DFB Laser | Receiver | N/A |
| Average TX Power (dBm) | -8~ -3dBm | Extinction Ratio (dB) | >5dB |
| Video Pathological Patterns | Support as default | DDM/DOM | Supported |
| Unit Weight | 25gram | Warranty Time | 3 years |
| Applications | SD/HD/3G/6G SDI | ||
Description
Gigaopto’s GTS-Cxx60-20DCTN 6G SDI Video Single Transmitter Module is designed for single-channel video transmission applications over 20km over G.652 single mode fiber via a CWDM wavelength channel from 1270nm to 1450nm (20nm each step) with a simplex LC connector. It supports the data rates from 50Mb/s to 5.94Gb/s. This transmitter is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE259M, SMPTE 344M, SMPTE 292M, SMPTE 424M and ST-2081 serial rates.
This transmitter consists of two sections: a DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements.
This transmitter module is full compliant with MSA SFP and SFF-8472, real time digital diagnostic monitoring function is available through the I2C interface.
It is suitable for high-definition digital broadcasting applications.
Ordering Information
| Part Number | Description-6Gbps SDI SFP 20km | CWDM Channel | Max Reach (KM) | Temperature |
| GTS-C2760-20DCTN | 6G SDI CWDM Single Transmitter Module LC Non MSA | 1270nm / -C27 | 20km | Com. |
| GTS-C2960-20DCTN | 6G SDI CWDM Single Transmitter Module LC Non MSA | 1290nm/ -C29 | 20km | Com. |
| GTS-C3160-20DCTN | 6G SDI CWDM Single Transmitter Module LC Non MSA | 1310nm/ -C31 | 20km | Com. |
| GTS-C3360-20DCTN | 6G SDI CWDM Single Transmitter Module LC Non MSA | 1330nm/ -C33 | 20km | Com. |
| GTS-C3560-20DCTN | 6G SDI CWDM Single Transmitter Module LC Non MSA | 1350nm/ -C35 | 20km | Com. |
| GTS-C3760-20DCTN | 6G SDI CWDM Single Transmitter Module LC Non MSA | 1370nm/ -C37 | 20km | Com. |
| GTS-C3960-20DCTN | 6G SDI CWDM Single Transmitter Module LC Non MSA | 1390nm/ -C39 | 20km | Com. |
| GTS-C4160-20DCTN | 6G SDI CWDM Single Transmitter Module LC Non MSA | 1410nm/ -C41 | 20km | Com. |
| GTS-C4360-20DCTN | 6G SDI CWDM Single Transmitter Module LC Non MSA | 1430nm/ -C43 | 20km | Com. |
| GTS-C4560-20DCTN | 6G SDI CWDM Single Transmitter Module LC Non MSA | 1450nm/ -C45 | 20km | Com. |
