Product Details:
|
| Product: | 6G-SDI CWDM Transmitter Module | Data Rate(Gb/s): | 50Mb/s - 5.94Gb/s |
|---|---|---|---|
| Module Type: | Single Transmitter | Wavelength: | 1270~1450nm CWDM |
| Interface: | Simplex LC Receptacle | Distance: | 20km |
| MSA/Non MSA: | MSA | OEM/ODM: | Support |

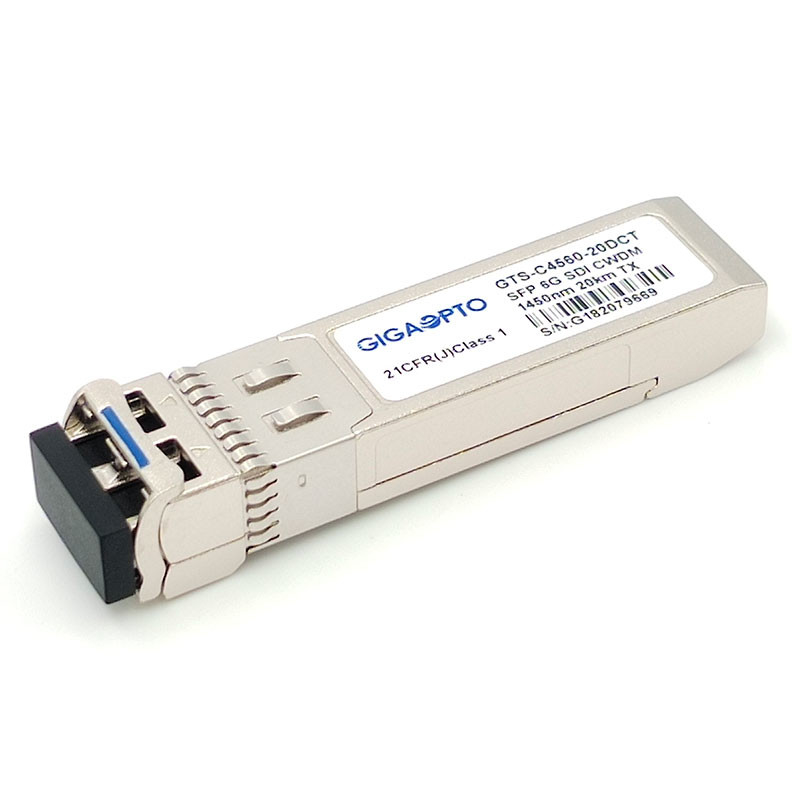

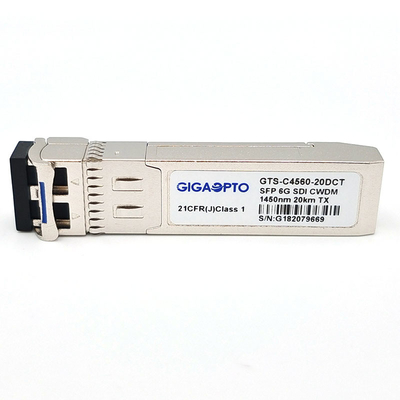

6G SDI Single Transmitter Module 1270nm-1450nm CWDM 20km LC DOM MSA
Functional Specification
| Product | 6G-SDI CWDM Transmitter | P/N | GTS-Cxx60-20DCT |
| Bit Rata (Gb/s) | 50Mb/s - 5.94Gb/s | Pin Assignment | MSA |
| Type | Single Transmitter | Temperature | 0 to 70°C (32 to 158°F) |
| Center Wavelength (TX) | 1270nm~1450nm | Transmission | 20km |
| Connector Type | Simplex LC | Cable Type | G.652 SMF |
| TX Type | CWDM DFB Laser | RX Part | N/A |
| TX Out Power (dBm) | -8~ -3dBm | Extinction Ratio (dB) | >5dB |
| Video Pathological Patterns | Support as default | Digital Diagnostic Monitoring | Supported |
| OEM/ODM | Supported | Warranty Time | 3 years |
| Applications | SD/HD/3G/6G SDI | ||
Description
Gigaopto’s GTS-Cxx60-20DCT 6G SDI Video Single Transmitter Module is designed for single-channel video transmission applications over 20km over G.652 single mode fiber via a CWDM wavelength channel from 1270nm to 1450nm (20nm each step) with a simplex LC connector. It supports the data rates from 50Mb/s to 5.94Gb/s. This transmitter is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE259M, SMPTE 344M, SMPTE 292M, SMPTE 424M and ST-2081 serial rates.
This transmitter consists of two sections: a DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements.
This transmitter module is full compliant with MSA SFP and SFF-8472, real time digital diagnostic monitoring function is available through the I2C interface.
It is suitable for high-definition digital broadcasting applications.

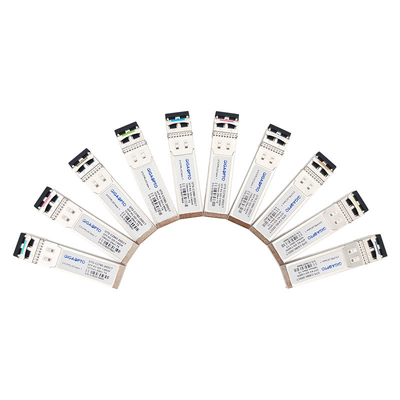

Ordering Information
| Part Number | Description | Data Rate | CWDM Channel | Max Reach (KM) | Latch Color |
| GTS-C2760-20DCT | 6G SDI CWDM Single Transmitter Module LC MSA | 6Gbps | 1270nm / -C27 | 20km | Light Purple |
| GTS-C2960-20DCT | 6G SDI CWDM Single Transmitter Module LC MSA | 6Gbps | 1290nm/ -C29 | 20km | Sky Blue |
| GTS-C3160-20DCT | 6G SDI CWDM Single Transmitter Module LC MSA | 6Gbps | 1310nm/ -C31 | 20km | Yellow Green |
| GTS-C3360-20DCT | 6G SDI CWDM Single Transmitter Module LC MSA | 6Gbps | 1330nm/ -C33 | 20km | Yellow Ocher |
| GTS-C3560-20DCT | 6G SDI CWDM Single Transmitter Module LC MSA | 6Gbps | 1350nm/ -C35 | 20km | Pink |
| GTS-C3760-20DCT | 6G SDI CWDM Single Transmitter Module LC MSA | 6Gbps | 1370nm/ -C37 | 20km | Beige |
| GTS-C3960-20DCT | 6G SDI CWDM Single Transmitter Module LC MSA | 6Gbps | 1390nm/ -C39 | 20km | White |
| GTS-C4160-20DCT | 6G SDI CWDM Single Transmitter Module LC MSA | 6Gbps | 1410nm/ -C41 | 20km | Silver |
| GTS-C4360-20DCT | 6G SDI CWDM Single Transmitter Module LC MSA | 6Gbps | 1430nm/ -C43 | 20km | Black |
| GTS-C4560-20DCT | 6G SDI CWDM Single Transmitter Module LC MSA | 6Gbps | 1450nm/ -C45 | 20km | Yellow Orange |
Features
Applications
PIN Definition
