Product Details:
|
| Product: | 6G SDI SMPTE Transmitter | Bandwidth: | 50Mb/s - 5.94Gb/s |
|---|---|---|---|
| Center Wavelength(TX): | 1310nm | MSA/Non MSA: | Non MSA |
| Interface: | LC Simplex PC | Max Reach: | 10km |
| Real Time Diagnostic: | Support | Warranty: | 36-month |
| Keywords: | 6G Ultra-SDI Transmitter |

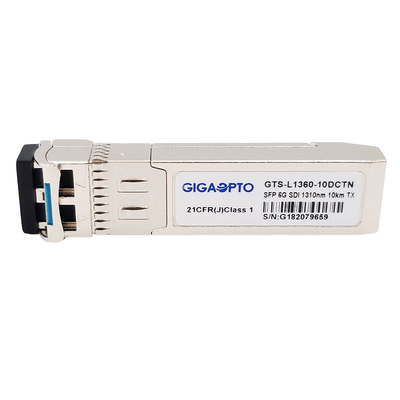

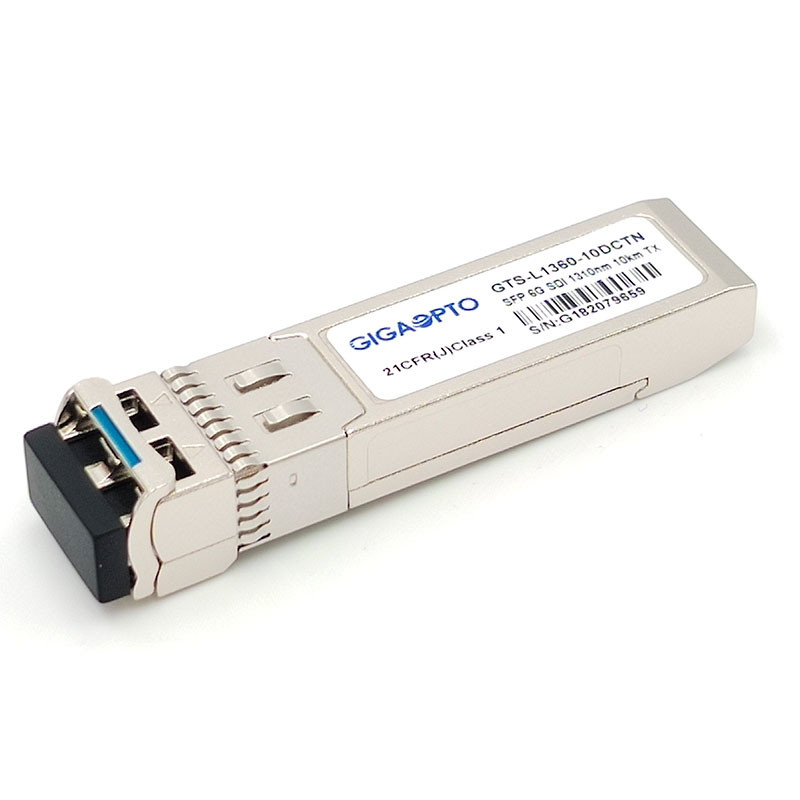

6G SDI Single Transmitter 1310nm 10km SMF LC DOM MSA
Description
The 6G Single Transmitter Module is designed for single-channel video transmission applications over 10km transmission on SMF via 1310nm Wavelength with a simplex LC connector, It supports the data rates from 50Mb/s to 5.94Gb/s,They are specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE259M, SMPTE 344M, SMPTE 292M, SMPTE 424M and ST-2081 serial rates.
This transmitter consists of two sections: a DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements.
Functional Specification
| Product | 6G Single Transmitter | Part Number | GTS-L1360-10DCTN |
| Bandwidth (Gb/s) | 50Mb/s - 5.94Gb/s | Pin Assignment | Non MSA |
| Form Factor | SFP | Temperature Range | Commercial |
| TX Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | Simplex LC | Cable Type | SMF G.652 |
| Laser Type | DFB | Receiver Part | N/A |
| Power Supply Voltage | 3.3V | Total Current (Max) | 400mA |
| TX Power (dBm) | -7~0 | Extinction Ratio (dB) | >5.0 |
| Video Pathological Patterns | Support as default | Digital Monitoring | Support |
| OEM/ODM | Yes | Protocols | SFP MSA |
| Applications | SD/HD/3G/6G SDI | ||
Features
Applications
PIN Definition
