6G SDI Video TX1550nm RX1310nm 10km BIDI Transceiver Module MSA

6G SDI SMPTE SFP BIDI LC TX1550nm RX1310nm 10km Transceiver Modules MSA

Products Description

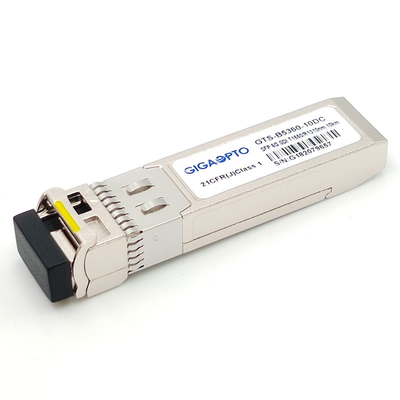

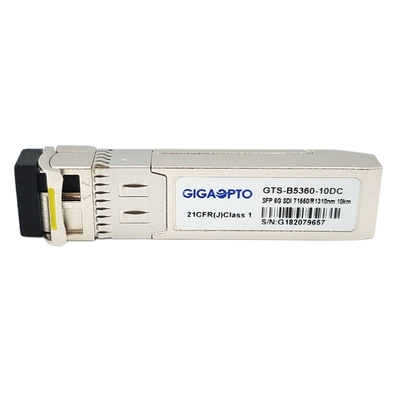

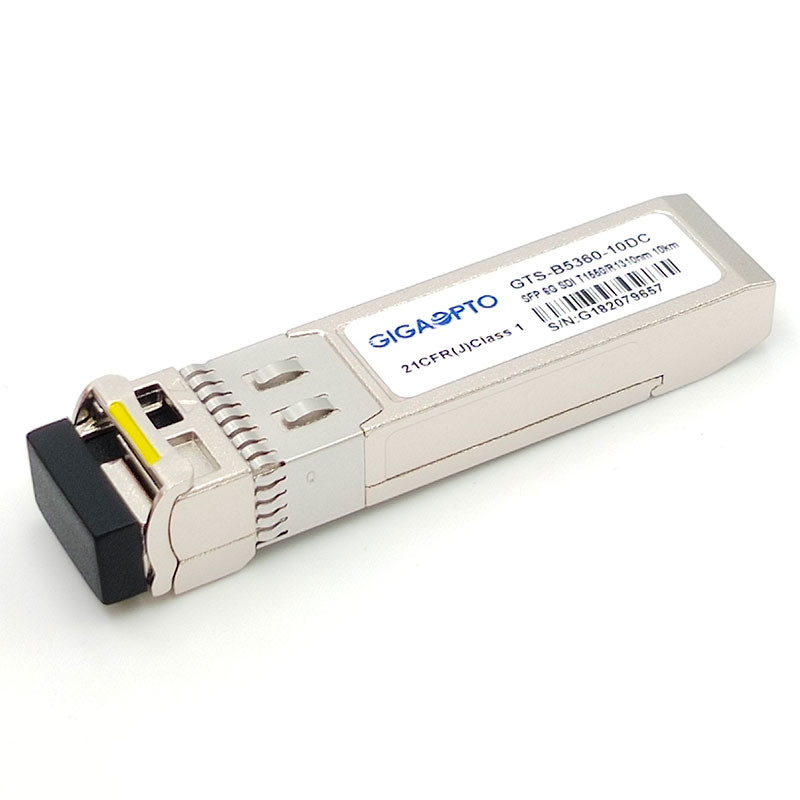

Gigaopto’s GTS-B5360-10DC is one fiber Bidirectional SFP optical transceiver module designed for video transmission applications.

The transceiver is designed to transmit/receive data rates from 50Mbps to 5.94Gbps and supports SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M and ST-2081 serial rate,a maximum distance of 10 km is achievable with 6Gbps pathological signals over a single-mode fiber (SMF) with a simplex LC connector

The transceiver consists of three sections: a 1310nm DFB laser transmitter, a 1550nm PIN photodiode integrated with a trans-impedance pre-amplifier (TIA) , Reclocker ,and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C.

Functional Specification

Features

• Supports video pathological patterns for SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
• Operating data rate from 50Mbps to 5.94Gbps
• Metal enclosure, low EMI
• 1550nm-TX DFB Transmitter and 1310nm-RX PIN photo-detector
• Fiber distance up to 10km with LC duplex connector
• Single 3.3V Power supply
• Hot Pluggable, low power consumption
• Compliant with SFP MSA and SFF-8472
• Real time digital diagnostic monitoring through the I2C interface
• Operating case temperature:

                                                       0°C to +70°C

                                                      -40°C to +85°C

• RoHS-6 compliant and Lead-Free

Applications

• Camera, Video, Security Monitoring, etc
• 4K /HDTV/SDTV Service Interfaces

PIN Definition
