Product Details:
|
| Product Name: | 6G SMPTE BIDI SFP | Bit Rate: | 50Mbps~5.94Gbps |
|---|---|---|---|
| Package/Technology: | SFP 1 Fiber | Connector: | LC Simplex |
| Reach: | 10km | Keywords: | 6G TX1310nm/RX1550nm |
6G SDI SMPTE SFP BIDI LC TX1310nm RX1550nm 10km Transceiver Modules MSA
Products Description

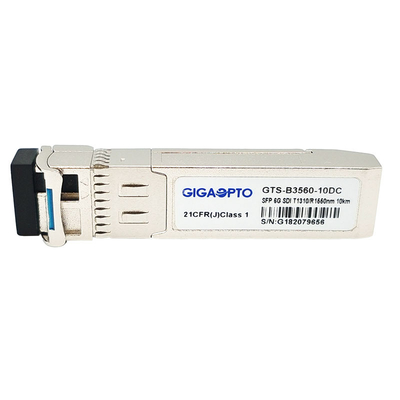

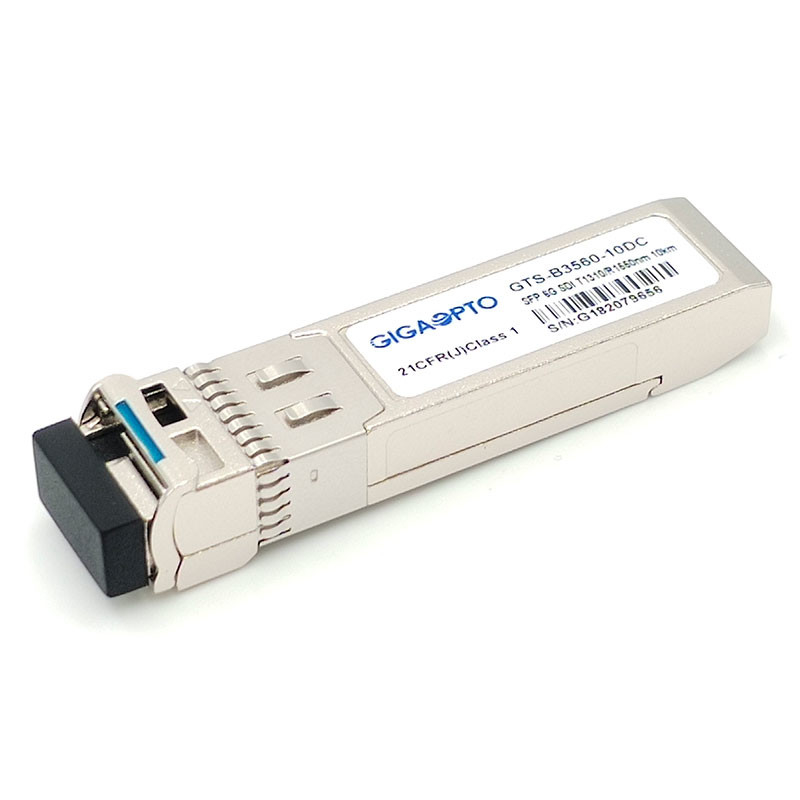

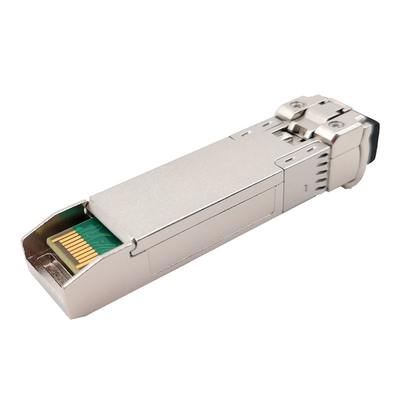

Gigaopto’s GTS-B3560-10DC is one fiber Bidirectional SFP optical transceiver module designed for video transmission applications.
The transceiver is designed to transmit/receive data rates from 50Mbps to 5.94Gbps and supports SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M and ST-2081 serial rate,a maximum distance of 10 km is achievable with 6Gbps pathological signals over a single-mode fiber (SMF) with a simplex LC connector.
The transceiver consists of three sections: a 1310nm DFB laser transmitter, a 1550nm PIN photodiode integrated with a trans-impedance pre-amplifier (TIA) , Reclocker ,and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C.
Functional Specification
| Product | 6G Video BiDi SFP | Part Number | GTS-B3560-10DC |
| Max Data Rate | 5.94Gb/s | MSA Pinout | Yes |
| Module-Type | Transmitter + Receiver | Operating Temp. | 0°C to 70°C /-40°C to +85°C |
| Center Wavelength | 1310nm-TX/1550nm-RX | Fiber Transmission | 10km |
| Interface /Polish | Simplex LC UPC | Fiber Type | SMF G.652 |
| Transmitter Type | DFB BiDi | Receiver Type | PIN |
| Power Supply Voltage | 3.3V | Total Current (Typical) | 200mA |
| TX Optical Power | -6~+1dBm | Receive Sensitivity | < -14dB (PRBS 223-1, BER=1E-12 ) |
| Extinction Ratio | >7.0dB | Digital Diagnostics | Yes |
| Video Pathological Patterns | Support as default | Weight | 0.025kg |
| Application | SD/HD/3G/6G SDI | ||
Features
0°C to +70°C
-40°C to +85°C
Applications
PIN Definition
