SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA

SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA
SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA

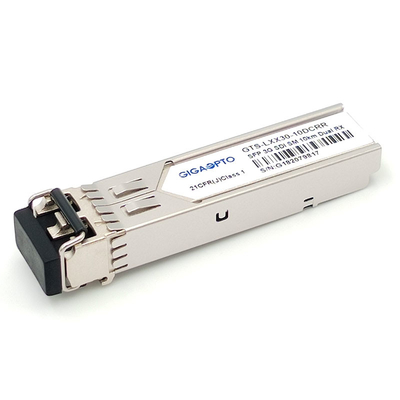

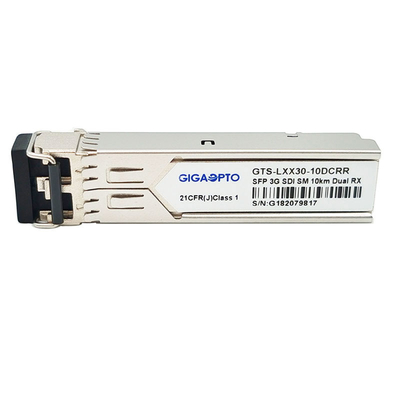

Large Image :  SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gigaopto
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-LXX30-10DCRR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Single Package,10 or 20pcs per Tray,30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50,000pcs/month

SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA

Description
Product Name: 3G SFP Dual Receivers Bandwidth: 50Mbit/s-2.97Gbit/s
Type: Dual Receivers Center Wavelength(RX): 1310nm
Connector: LC Receptacle Duplex Distance: 10km
Pin- Assignment: Non-MSA Warranty: 3-year
Highlight: 1310nm Video Transceiver

3Gbps dual receivers digital video/audio dual fiber SFP module Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI Non MSA Pinout 10km LC DDM





Functional Specification



Product Name 3G-SDI SFP Dual-Receiver Bandwidth (Gbps) 50Mbit/s - 2.97Gbit/s
Form Factor SFP 2-port Receivers Pin Assignment Non-MSA Pinout
Video Pathological Patterns Support as default Temperature Operating:0 to 70°C (32 to 158°F)
Center Wavelength (RX) 1310nm Fiber Transmission 10km
Connector Type Dual LC Receptacle Fiber Type SMF
Transmitter Type N/A Receiver Type PIN
Power Supply Voltage 3.3V Supply Current 150mA (typical)
Protocols SFP MSA Saturation (Overload) > 0dBm
Rx Sensitivity ( PRBS ) SD-SDI:<-20dBm; HD-SDI:<-20dBm; 3G-SDI:<-20dBm
Rx Sensitivity(Pathological) SD-SDI:<-16dBm; HD-SDI:<-15dBm; 3G-SDI:<-14dBm
Digital Diagnostic With Warranty 3 years
OEM/ODM Support MTBF 1,000,000Hours
Application

SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces

HDTV/SDTV Service Interfaces





Description



Gigaopto's GTS-LXX30-10DCRR 3G-SDI SFP Dual Receivers Module is a dual channel optical single mode receiver module designed to receive optical serial digital signals as defined in SMPTE 297-2006. It supports from 50 Mbps to 3 Gbps and is specifically designed for received the SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M SDI pathological patterns.

Each receiver consists of a PIN photodiode integrated with a trans-impedance preamplifier(TIA) and can receive signal from 50 Mbps to 3 Gbps, a max link reach is up to 10km with 3Gbps pathological signals.

The receiver module is full compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.





Features



  • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
  • SMPTE 297-2006 Compatible
  • Robust error free transmission of signals from 50Mb/s to 3Gb/s & up to 10km SMF
  • Dual Pin Photodetectors 1310nm wavelength with duplex LC receptacle
  • Non MSA Pinout
  • Metal enclosure for Lower EMI
  • Digital Diagnostic functions available through the I2C interface
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature: Standard : 0 to +70°C



Application



  • 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
  • 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
  • Remote digital display or security surveillance systems
  • Professional video broadcast
  • Digital cinema system



PIN Definition

SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA 0
