Product Details:
|
| Product Name: | 3G SFP BiDi 2TX | Data Rate(Gbps): | 50Mbps-2.97Gbps |
|---|---|---|---|
| Module Type: | Dual Transmitters In BOSA | Wavelength: | TX1_1310nm/TX2_1550nm |
| Connector: | Simplex LC | Cable Distance: | 40km |
| Pin- Assignment: | Non-MSA | Warranty: | 3-year |
3G bidirectional 1310nm/1550nm dual transmitters digital video/audio sfp module Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI Non MSA Pinout 10km Simplex LC DDM
Functional Specification

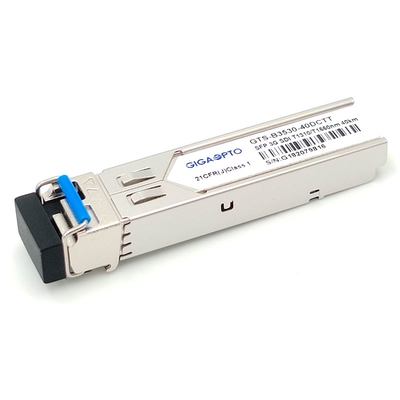

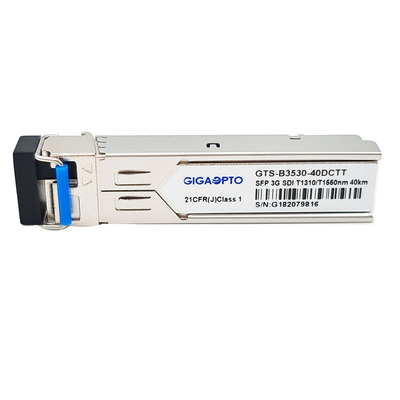

| Product Name | 3G SDI BiDi Dual Transmitters | P/N (Part No.) | GTS-B3530-40DCTT |
| Date-Rate (Gbps) | 50Mbps- 2.97Gbps | Pin Assignment | Non-MSA Pinout |
| Form Factor | SFP BIDI | Operating Temperature | 0 to 70°C (32 to 158°F) |
| Wavelength | TX1_1310nm/TX2_1550nm | Fiber Reach | 40km |
| Interface | LC Simplex | Cable Type | SMF |
| Transmitters Type | DFB BiDi BOSA | PD Component | N/A |
| Power Supply Voltage | 3.3V | Supply Current (Max) | 300mA |
| TX1_1310nm Out Power | -2 ~ +3dBm | Ext. Ratio | >5dB |
| TX2_1550nm Out Power | -2 ~ +3dBm | Warranty | 36-month |
| Video Pathological Patterns | Support as default | OEM/ODM | Yes |
| Protocols | SFP MSA ,SFF-8472,RoHS,CE,FCC | ||
| Application | SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces HDTV/SDTV Service Interfaces |
||
Description
The GTS-B3530-40DCTT is a 1-fibre Bi-Directional dual channel transmitter module designed to transmit optical serial digital signals as defined in SMPTE 297-2006. It supports the data rates from 50Mb/s to 2.97Gb/s,This dual transmitter module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
It is with the SFP 20-pin connector to allow hot plug capability. It is with two independent 1310nm and 1550nm laser transmitters. A maximum distance of 40 km is achievable with 3Gb/s pathological signals.
This transmitter module is full compliant with SFP MSA, SFF-8472 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
