Product Details:
|
| Product Name: | 3G SFP BiDi Dual Transmitters | Bandwidth(Gbps): | 50Mbit/s-2.97Gbit/s |
|---|---|---|---|
| Type: | Dual Transmitters In 1 Fiber Port | Center Wavelength: | TX_1 1310nm/TX_2 1550nm |
| Connector: | LC Simplex | Distance: | 10km |
| Pin- Assignment: | Non-MSA | Warranty: | 3-year |

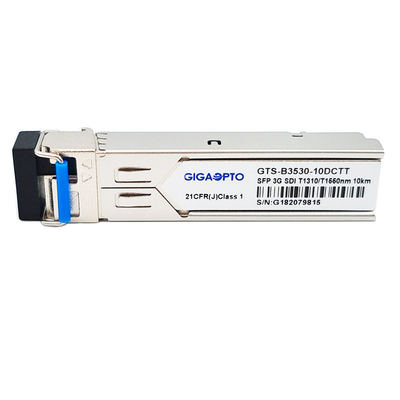

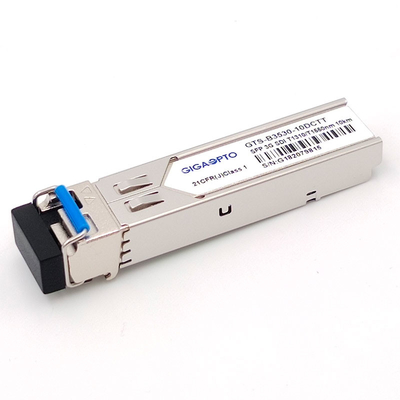

3Gbps Bidirectional 1310nm/1550nm dual transmitters digital video/audio sfp module Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI Non MSA Pinout 10km LC DDM
Functional Specification
| Product Name | 1 Fiber BiDi Dual Transmitters | P/N (Part No.) | GTS-B3530-10DCTT |
| Bit-Rate (Gbps) | 50Mb/s- 2.97Gb/s | Pin Assignment | Non-MSA Pinout |
| Module Type | Dual Transmitters | Operating Temperature | 0 to 70°C / -20 to 85°C |
| Center Wavelength (TX) | TX_1 1310nm/TX_2 1550nm | Max Fiber Length | 10km |
| Optical Connector | Simplex LC receptacle | Media | SMF |
| Transmitter Type | DFB BiDi | Receiver Component | N/A |
| Power Supply Voltage | 3.3V | Supply Current (Max) | 300mA |
| Tx_1 1310nm Output Power | -5~0dBm | Extinction Ratio | >5dB |
| Tx_2 1550nm Output Power | -8~-3dBm | Warranty Time | 3 years |
| Video Pathological Patterns Support | Yes | OEM/ODM | Yes |
| Protocols | SFP MSA ,SFF-8472,RoHS,CE,FCC | ||
| Application | SD/HD/3G SDI | ||
| Part Number | SDI | Data Rate | Max Link Distance |
| GTS-B3530-10DCTT | 3G-SDI | 2.97Gbps | 10km |
| HD-SDI | 1.485Gbps | 21km | |
| SD-SDI | 270Mbps | 30km |
Description
The GTS-B3530-10DCTT is a 1-fibre Bi-Directional dual channel transmitter module designed to transmit optical serial digital signals as defined in SMPTE 297-2006. It supports the data rates from 50Mb/s to 2.97Gb/s.This dual transmitter module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
It is with the SFP 20-pin connector to allow hot plug capability. It is with two independent 1310 nm and 1550 nm laser transmitters. Each transmitter can transmit signal from 50 Mb/s to 2.97Gb/s with up to 30 km of single-mode fiber when using the GTS-B3530-10DCRR as the receiver. A maximum distance of 10 km is achievable with 3Gb/s pathological signals.
Features
Application
PIN Definition
