Product Details:
|
| Product Name: | 3G SMPTE SFP Dual Transmitters | Bit-Rate(Gbps): | 50Mbps-2.97Gbps |
|---|---|---|---|
| Module Type: | Dual Transmitters | Center Wavelength: | 1310nm |
| Connector Type: | Dual LC Receptacle | Transmission: | 40km |
| Pin Assignment: | Non-MSA Pinout | DDM: | Supported |
3Gbps 1310nm dual transmitters digital video/audio sfp module Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI Non MSA Pinout 40km LC DDM
Functional Specification
| Product Name | 3G SFP Dual Transmitters | Bandwidth (Gbps) | 50Mbps - 2.97Gbps |
| Module Type | Dual Transmitters | Pin Assignment | Non-MSA Pinout |
| Form Factor | SFP | Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Center Wavelength (TX) | 1310nm | Max Length | 40km |
| Optical Connector | Duplex LC | Fibre Type | SMF |
| LD Component | DFB | PD Component | N/A |
| Power Supply Voltage | 3.3V | Supply Current (Max) | 500mA |
| Average Output Power | -2~+2dBm | Extinction Ratio | >5dB |
| DOM Support | Yes | Video Pathological Patterns | Yes |
| OEM/ODM | Supported | Warranty | 3-year |
| Protocols | SFP MSA ,RoHS,CE,FCC | ||
| Application | SD/HD/3G SDI | ||
Description

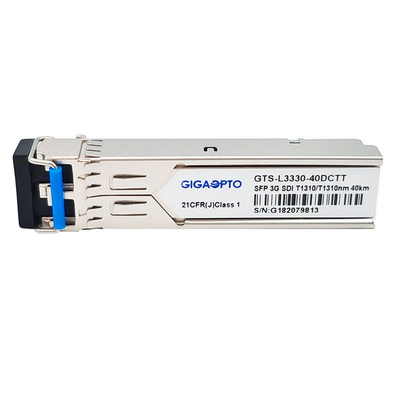

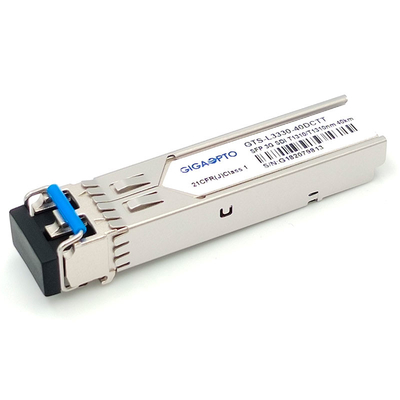

The GTS-L3330-40DCTT is a dual channel optical transmitter module,each channel consists of two sections:a DFB laser transmitter and MCU control unit. This transmitter module designed to transmit optical serial digital signals as defined in SMPTE 297-2006.
It supports from 50Mbps to 3Gbps and is specifically designed for transmitted the SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M SDI pathological patterns.
Each transmitter can transmit signal from 50Mbps to 3Gbps transmission reach up to 40km with 3Gbps pathological signals.
It is with the SFP 20-pin connector to allow hot plug capability, full compliant with SFP MSA, SFF-8472 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
It is suitable for high-definition digital broadcasting applications.
