Product Details:
|
| Product Name: | 3G-SDI SFP Dual Transmitters | Bandwidth(Gbps): | 50Mb/s-2.97Gb/s |
|---|---|---|---|
| Form Factor: | Transmitter + Transmitter | Wavelength: | 2Tx 1310nm |
| Connector: | Dual LC Receptacle | Transmission: | 10km |
| Pin Assignment: | Non-MSA Pinout | DDM: | Supported |
3Gbps 1310nm dual-transmitter digital video/audio sfp module Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI Non MSA Pinout 10km LC DDM
Functional Specification
| Product Name | 3G-SDI SFP Dual-Transmitter | Bandwidth (Gbps) | 50Mbps - 2.97Gbps |
| Module Type | Dual Transmitter | Pin Assignment | Non-MSA Pinout |
| Form Factor | SFP | Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Center Wavelength (TX) | 1310nm | Fiber Length | 10km @ G.652 |
| Interface | Dual LC receptacle | Fibre Type | SMF |
| Transmitter Type | DFB Laser | Receiver Type | N/A |
| Power Supply Voltage | 3.3V | Supply Current | 300mA |
| Average Output Power | -5~0 dBm | Extinction Ratio | >5dB |
| DDM | with (default) | Warranty | 3 years |
| OEM/ODM | Supported | MTBF | 1,000,000Hours |
| Protocols | SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces | ||
| HDTV/SDTV Service Interfaces | |||
Link Distance
| Part Number | SDI | Data Rate | Max Link Distance |
| GTS-L3330-10DCTT | 3G-SDI | 2.97Gbps | 10km |
| HD-SDI | 1.485Gbps | 21km | |
| SD-SDI | 270Mbps | 30km |
Description

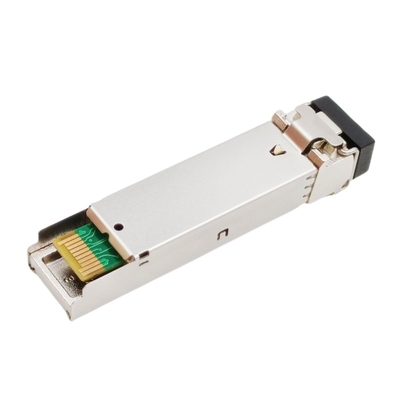

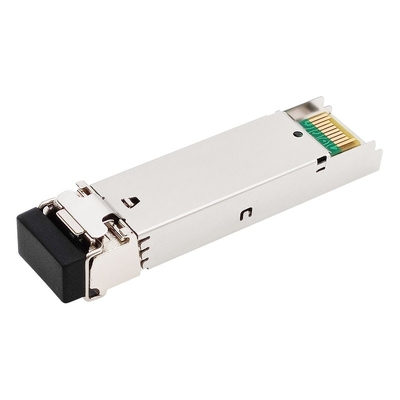

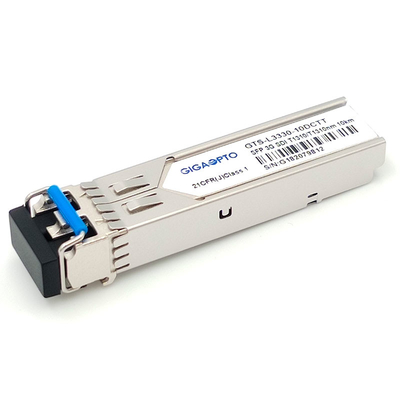

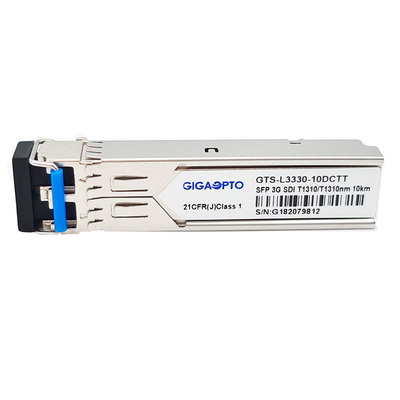

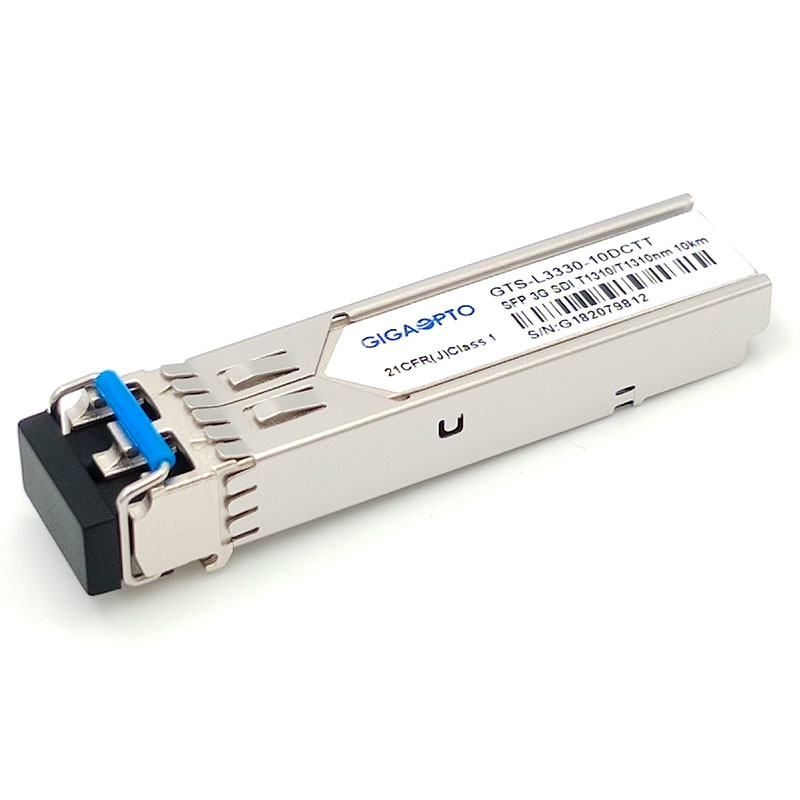

The GTS-L3330-10DCTT is a dual channel optical single mode transmitter for video transmission applications over 10km transmission on SMF via 1310nm Wavelength with a duplex LC connector. It supports the data rates from 50Mb/s to 2.97Gb/s. This dual transmitter module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
It is a dual channel optical transmitter module. Each channel consists of two sections:a DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements.
The double transmitter module is compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Features
Application
PIN Definition
