Product Details:
|
| Product Name: | 3G-SDI SFP Receiver | Bit Rate(Gbps): | 50Mb/s-2.97Gb/s |
|---|---|---|---|
| Form Factor: | Single Receiver | Wavelength: | RX-1310nm |
| Connector: | Simplex LC | Transmission: | 40km |
| Pin Assignment: | Non-MSA Pinout | DDM: | Without |
3G SFP Single Receiver Module for SD/HD/3G SDI 1310nm 10km LC Non MSA Pinout
Functional Specification
| Product Name | 3G-SDI SFP Single Rx | Bandwidth (Gbps) | 50 Mbit/s - 2.97 Gbit/s |
| Form Factor | Receiver only | Pin Assignment | Non-MSA Pinout |
| Video Pathological Patterns | Support | Temperature Range | 0 to 70°C |
| Center Wavelength (RX) | 1310nm | Cable Length | 40km |
| Connector Type | Simplex LC PC | Fiber Type | SMF |
| LD Part | N/A | PD Type | PIN |
| Power Supply Voltage | 3.3V (Typical) | Supply Current | 150mA (Typical) |
| Protocols | SFP MSA | Overload | > 0dBm |
| Sensitivity ( PRBS ) | SD-SDI:<-20dBm; HD-SDI:<-20dBm; 3G-SDI:<-20dBm | ||
| Sensitivity(Pathological) | SD-SDI:<-16dBm; HD-SDI:<-15dBm; 3G-SDI:<-14dBm | ||
| Digital Disgnostic Monitoring | Without | Warranty Time | 36-month |
| OEM/ODM | Support | MTBF | 1,000,000Hours |
| Application |
SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces HDTV/SDTV Service Interfaces |
||
Description

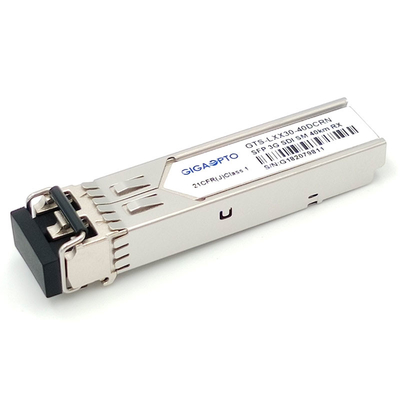

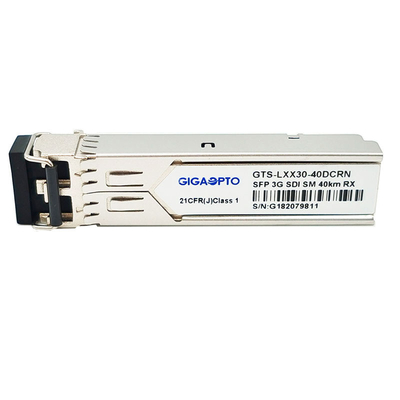

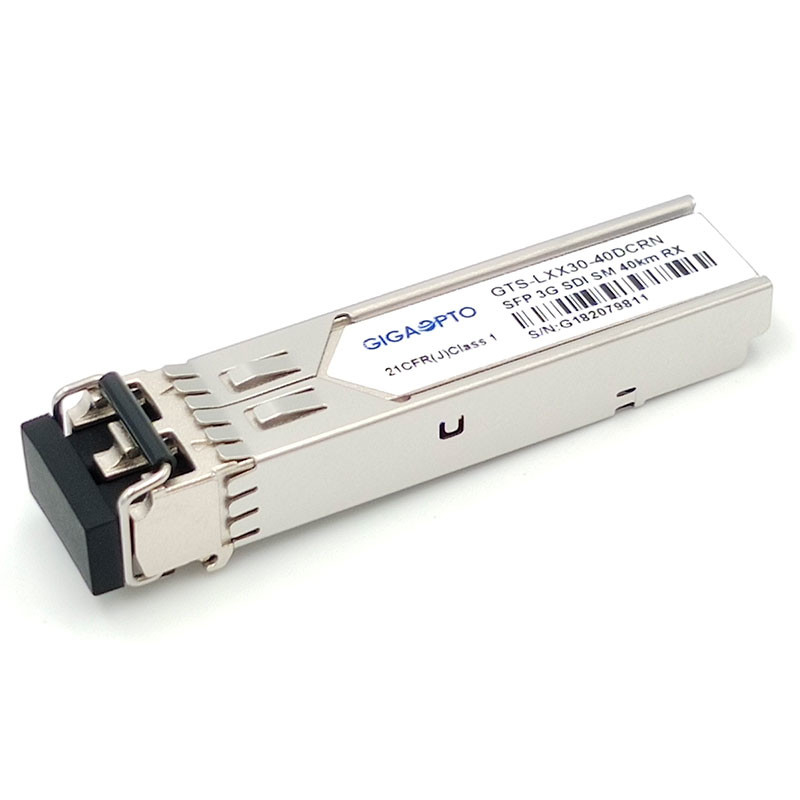

Gigaopto’s GTS-LXX30-40DCRN 3G Video SFP Single receiver Module is designed for single-lane video transmission applications over 40km transmission on SMF via 1310nm Wavelength with a simplex LC connector. It supports the data rates from 50Mb/s to 2.97Gb/s. This receiver module specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
The receiver consists of a PIN photodiode integrated with a trans-impedance preamplifier(TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The receivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Features
Application
PIN Definition
