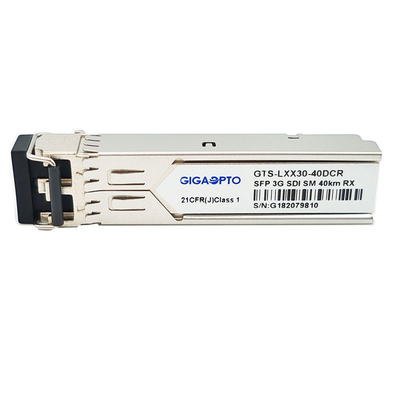

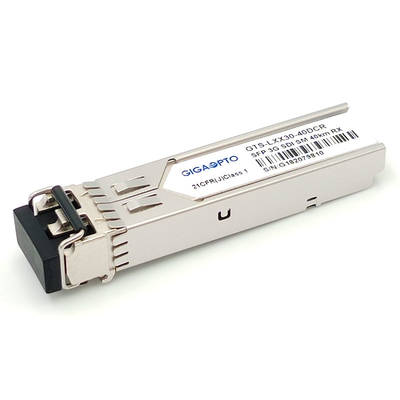

3G Digital Video Single Receiver Module 1310nm 40km for SD/HD/3G-SDI MSA Pinout

Description
Product Name: 3G Digital Video Single Receiver Data-Rate: 50Mbps-2.97Gbps
Module Type: Single Rx Wavelength: RX1310nm
Connector: LC Receptacle Reach: 40km
Pin Assignment: MSA Pinout Warranty: 3 Years

3Gb/s 1310nm 40km Single Receiver Video Pathological Patterns Transceiver Module for SD/HD/3G-SDI MSA Pinout SMF LC DDM





Functional Specification



Product Name 3G MSA Single Receiver Bandwidth 50 Mbit/s - 2.97 Gbit/s
Form Factor 1 port Receiver Pin Assignment MSA Pinout
Video Pathological Patterns Support Yes Temperature Range 0 to 70°C
Wavelength 1310nm-RX Fiber Transmission 40km
Interface Simplex LC Fiber Type single-mode fiber
Transmitter Part N/A Receiver Type PIN
Power Supply Voltage 3.3V Total Current 150mA
Protocols SFP MSA Receiver Overload > 0dBm
Receiver Sensitivity ( PRBS ) SD-SDI:<-20dBm; HD-SDI:<-20dBm; 3G-SDI:<-20dBm
Receiver Sensitivity(Pathological) SD-SDI:<-16dBm; HD-SDI:<-15dBm; 3G-SDI:<-14dBm
DDM With Warranty 36 months
OEM/ODM Yes MTBF 1,000,000Hours
Application SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces
HDTV/SDTV Service Interfaces





Description



Gigaopto’s GTS-LXX30-40DCR 3G Video SFP Single Receiver Module is designed for single-lane video transmission applications over 40km transmission on SMF via 1310nm Wavelength with a simplex LC connector. It supports the data rates from 50Mb/s to 2.97Gb/s. This receiver module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.

The receiver consists of a PIN photodiode integrated with a trans-impedance preamplifier(TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The receivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.





Features



  • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
  • SMPTE 297-2006 Compatible
  • Robust error free transmission of signals from 50Mb/s to 3Gb/s & transmission reach up to 40km SMF
  • 1310nm Pin Photo-detector
  • Metal enclosure for Lower EMI
  • Digital Diagnostic functions available through the I2C interface
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature: Standard : 0 to +70°C



Application



  • 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
  • 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
  • Remote digital display or security surveillance systems
  • Professional video broadcast
  • Digital cinema system
