Product Details:
|
| Product Name: | 3G Single Receiver | Data-Rate(Gbps): | 50M-3G |
|---|---|---|---|
| Module Type: | Single Receiver | Wavelength: | 1310nm Rx Only |
| Connector: | LC Receptacle | Transmission: | 10km |
| Pin Assignment: | MSA | OEM/ODM: | Supported |
| Keywords: | Single Receiver 1310nm 10km |

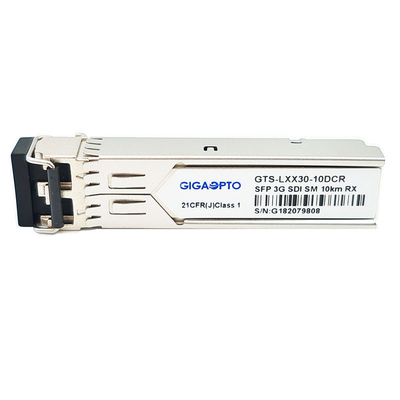

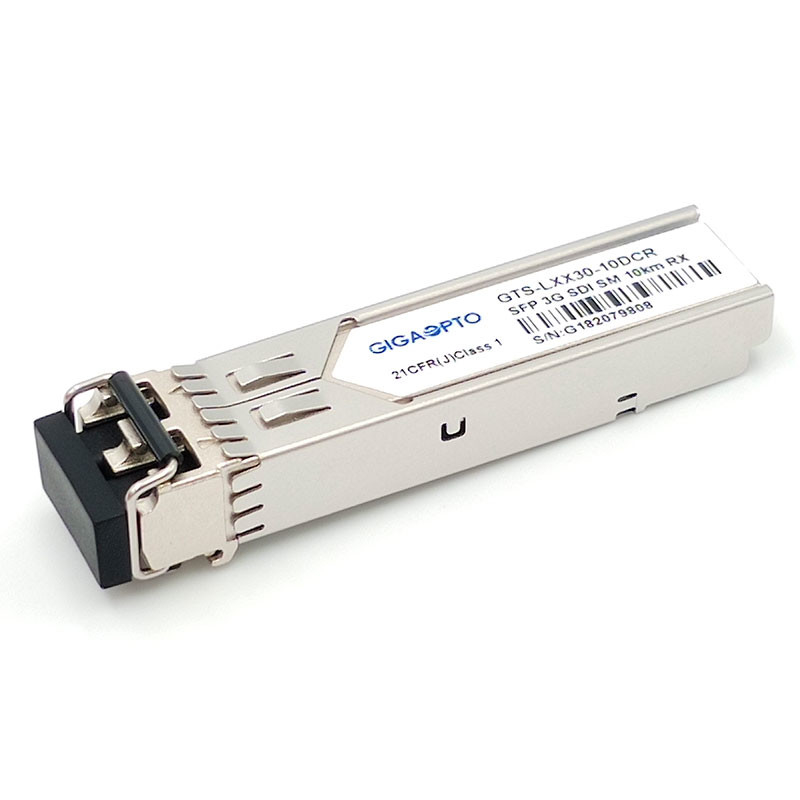

3G-SDI Single Receiver for SD/HD/3G SDI 1310nm 10km LC DDM MSA Pinout
Functional Specification
| Product Name | 3G MSA Single Receiver | Data Rate | 3Gbps |
| Form Factor | Single Receiver | Pin Assignment | MSA |
| Video Pathological Patterns Support | Yes | Operating Temperature | 0 to 70°C |
| Wavelength | 1310nm-RX | Fiber Transmission | 10km |
| Interface | LC | Media | single-mode fiber |
| Transmitter Type | N/A | Receiver Type | PIN |
| Power Supply Voltage | 3.3V | Supply Current | 150mA |
| Protocols | SFP MSA | Rx Saturation | > 0dBm |
| Rx Sensitivity ( PRBS ) | SD-SDI:<-20dBm; HD-SDI:<-20dBm; 3G-SDI:<-20dBm | ||
| Rx Sensitivity(Pathological) | SD-SDI:<-16dBm; HD-SDI:<-15dBm; 3G-SDI:<-14dBm | ||
| DDM | With | Warranty Time | 36 months |
| OEM/ODM | Supported | ||
| Application | SD/HD/3G SDI | ||
Description
Gigaopto’s GTS-LXX30-10DCR 3G Video SFP Single-receiver Module is designed for single-channel video transmission applications over 10km transmission on SMF via 1310nm Wavelength with a simplex LC connector. It supports the data rates from 50Mb/s to 2.97Gb/s. This receiver module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
The receiver consists of a PIN photodiode integrated with a trans-impedance preamplifier(TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The receivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
