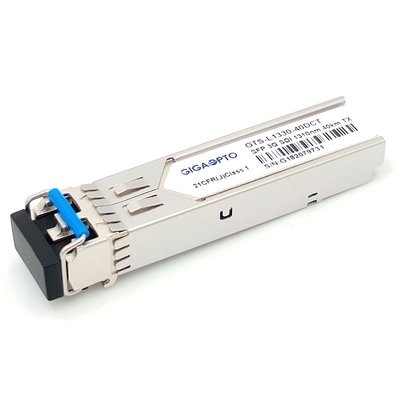

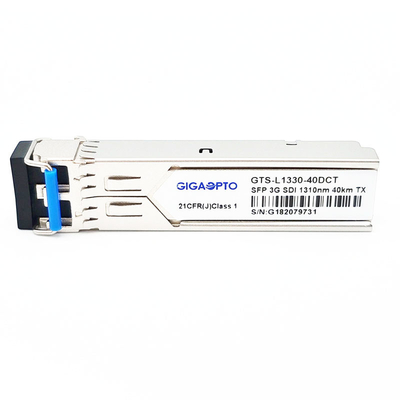

HD SDI SD SDI 3G SDI Video SFP Transceiver TX1310nm Single Optical Transmitter 10km LC DOM MSA For SD/HD/3G SDI

HD SDI SD SDI 3G SDI Video SFP Transceiver TX1310nm Single Optical Transmitter 10km LC DOM MSA For SD/HD/3G SDI
HD SDI SD SDI 3G SDI Video SFP Transceiver TX1310nm Single Optical Transmitter 10km LC DOM MSA For SD/HD/3G SDI HD SDI SD SDI 3G SDI Video SFP Transceiver TX1310nm Single Optical Transmitter 10km LC DOM MSA For SD/HD/3G SDI HD SDI SD SDI 3G SDI Video SFP Transceiver TX1310nm Single Optical Transmitter 10km LC DOM MSA For SD/HD/3G SDI HD SDI SD SDI 3G SDI Video SFP Transceiver TX1310nm Single Optical Transmitter 10km LC DOM MSA For SD/HD/3G SDI

Large Image :  HD SDI SD SDI 3G SDI Video SFP Transceiver TX1310nm Single Optical Transmitter 10km LC DOM MSA For SD/HD/3G SDI

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gigaopto
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-L1330-40DCT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Single Package,10 or 20pcs per Tray,30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C
Supply Ability: 50,000pcs/month

HD SDI SD SDI 3G SDI Video SFP Transceiver TX1310nm Single Optical Transmitter 10km LC DOM MSA For SD/HD/3G SDI

Description
Product Name: 3G SDI Transmitter Bit Rate: 3Gb/s
Wavelength(TX): 1310nm Pin Assignment: MSA
Optical Connector: LC Distance: 10km
DDM: Yes Warranty: 3-year
Keywords: SDI Single Transmitter
Highlight:

3G Video SFP Transceiver

,

TX1310nm Video SFP Transceiver

,

HD SDI SFP

3Gb/s 1310nm 10km DOM LC SMF Single Transmitter Video Pathological Patterns Transceiver Module MSA Pinout





Functional Specification



Product Name 3G HD/SDI SFP Transmitter Part Number GTS-L1330-40DCT
Bandwidth 50Mbps - 2.97Gbps Pin Assignment MSA
Module-Type Single TX Temperature Range Commercial
Center Wavelength (TX) 1310nm Cable 10-kilometer
Connector LC Simplex Fiber-Type SMF
LD Type DFB Laser PD Type N/A
Power Supply Voltage +3.3V Total Current (Max) 400mA
TX Output Power -5~0dBm ER. >5.0dB
Pathological Patterns With DDMI Supported as default
OEM/ODM Supported Protocols SFP MSA
Applications SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M





Description



Gigaopto’s GTS-L1330-40DCT 3G SDI Single Transmitter Module is a dual channel optical single mode transmitter module designed to transmit optical serial digital signals as defined in SMPTE 297-2006.

It supports from 50Mbps to 3Gbps and is specifically designed for transmitted the SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M SDI pathological patterns.

This transmitter consists of two sections: a DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements,it can transmit signal from 50Mbps to 3Gbps transmission reach up to 40km with 3Gbps pathological signals.

It is with the SFP 20-pin connector to allow hot plug capability, full compliant with SFP MSA, SFF-8472 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.

It is suitable for high-definition digital broadcasting applications.



Features



  • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
  • SMPTE 297-2006 Compatible
  • Robust error free transmission of signals from 50Mb/s to 3Gb/s & up to 40km single-mode fiber
  • 1310nm DFB laser
  • Metal enclosure for Lower EMI
  • Compliant with SFP MSA and SFF-8472
  • Digital Diagnostic Monitoring
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature: Standard: 0 to +70°C



Application



  • 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
  • 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
  • Remote digital display or security surveillance systems
  • Professional video broadcast
  • Digital cinema system



PIN Definition



HD-SDI SD-SDI 3G-SDI SFP Video TX1310nm 40KM Transmitter Only

HD SDI SD SDI 3G SDI Video SFP Transceiver TX1310nm Single Optical Transmitter 10km LC DOM MSA For SD/HD/3G SDI 0

Note: Society of Motion Picture and Television Engineers short for SMPTE has standards for handling high definition video signals with pathological pattern. SMPTE's standards currently call for 259M (SD-SDI), 344M (ED-SDI), 292M (HD-SDI) and 424M (3G-SDI).

SMPTE 297-2006: This standard defines the fiber optic interface for the transmission and reception of SDI signals at various data rates: 3G ~ 12G

SMPTE 259M: 143 through 360 Mb/s

SMPTE 344M: 540 Mb/s

SMPTE 292: 1.485 and 1.485/1.001 Gb/s

SMPTE 424M: 2.97 and 2.97/1.001 Gb/s

These bit-rates are sufficient for 1080p video at 50 or 60 frames per second.
