Product Details:
|
| Product Name: | 3G SDI Video SFP TX | Bit Rate: | 3Gb/s |
|---|---|---|---|
| Wavelength(TX): | 1310nm | Pin Assignment: | MSA |
| Optical Connector: | LC | Distance: | 10km |
| DDM: | Yes | Warranty: | 3-year |
| Keywords: | 3G Digital Video Single Transmitter | ||
| Highlight: | 10km SDI SFP,TX1310nm SDI SFP,SD SDI Transmitter |
||
3Gb/s 1310nm 10km DOM LC SMF Single Transmitter Video Pathological Patterns Transceiver Module MSA Pinout
Functional Specification

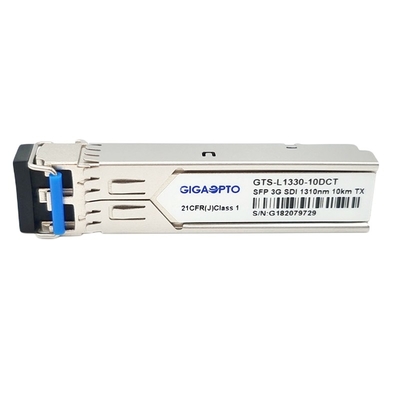

| Product Name | 3G SDI Video SFP TX | Part Number | GTS-L1330-10DCT |
| Bandwidth | 50 Mb/s - 2.97 Gb/s | MSA/Non-MSA | MSA |
| Module-Type | Single Transmitter | Temperature Range | 0 to 70°C / -20 to 85°C |
| Wavelength (TX) | 1310nm | Fiber Distance | 10km |
| Connector type | LC | Cable Type | SMF G.652 |
| Transmitter Type | DFB | Receiver Part | N/A |
| Power Supply Voltage | 3.3V | Total Current (Max) | 400mA |
| TX Optical Power | -7~0dBm | Extinction Ratio | >5.0dB |
| Pathological Patterns | Support as default | Digital Diagnostic | Support as default |
| OEM/ODM | Yes | Protocols | SFP MSA |
| Applications | HD-SDI /SD-SDI /3G-SDI | ||
Description
Gigaopto’s GTS-L1330-10DCT 3G SDI Video SFP TX Transmitter Module is designed for single-channel video transmission applications over 10km transmission on SMF via 1310nm Wavelength with a simplex LC connector, It supports the data rates from 50Mb/s to 2.97Gb/s,They are specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
This transmitter consists of two sections: a DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements.
Features
Application
PIN Definition
Note: Society of Motion Picture and Television Engineers short for SMPTE has standards for handling high definition video signals with pathological pattern. SMPTE's standards currently call for 259M (SD-SDI), 344M (ED-SDI), 292M (HD-SDI) and 424M (3G-SDI). "SMPTE 424M" is a standard which expands upon SMPTE 259M, SMPTE 344M, and SMPTE 292M allowing for bit-rates of 2.970 Gbit/s and 2.970/1.001 Gbit/s over a single-fiber cable. These bit-rates are sufficient for 1080p video at 50 or 60 frames per second.
