Product Details:
|
| Item: | 3G SMPTE Video CWDM SFP | Bandwidth: | 50 Mbit/s - 2.97 Gbit/s |
|---|---|---|---|
| Wavelength/Channel: | 1270~1610nm/C21~C61 CWDM | Optical Components: | DFB/PIN |
| Interface: | Duplex LC | Distance: | 40km |
| Warranty: | 36-month | Keywords 1: | SD/HD/3G SDI CWDM SFP |
| Keywords 2: | ST420 3G SDI Transceiver | ||
| Highlight: | 3Gb/S SFP Transceiver Module,Video SFP Transceiver Module,CWDM Transceiver |
||
3G-SDI MSA Video SFP CWDM 1271~1611nm Optical Transceiver Module 40km SMF LC DOM
Functional Specification
| Product Name | 3G-SD/HD/3G-SDI SFP | Part/Number | GTS-Cxx30-40DC |
| Bandwidth | 50 Mbps - 2.97 Gbps | MSA Pinout | Yes |
| Module-Type | Transmitter + Receiver | Environment | Operating: 0°C to 70°C |
| Wavelength Channel | CWDM (1270~1610)nm | Max Reach | 40km |
| Connector Type | Duplex LC | Media | SMF G.652 |
| Transmitter Type | DFB CWDM | PD Type | PIN |
| Power Supply Voltage | 3.3V | Total Current | 400mA (Max) |
| Transmitter Output Power | -2 ~ +3dBm | Rx Sensitivity (SD-SDI) | < -20dB (PRBS) |
| Rx Sensitivity (HD-SDI) | < -20dB (PRBS) | ||
| Rx Sensitivity (3G-SDI) | < -20dB (PRBS) | ||
| Extinction Ratio | >5.0dB | RX Overload | > 0dBm |
| Pathological Patterns | default | DDMI | Yes |
| Warranty Time | 3-year | OEM/ODM | Supported |
| Application | SMPTE 424M (2.97Gb/s),SMPTE 292M (1.485Gb/s),SMPTE 259M (270/360Mb/s),High-density Video Router,Broadcast cameras,Gigabit Ethernet,OC-48 and 2x Fiber Channel | ||
Description of Digital Video 3G CWDM SFP 1270nm~1610nm 40km Transceiver Series
This 3G-SDI CWDM SFP Transceiver Module is designed for dual-channel transmit/receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates,the maximum transmission distance can reach up to 40km over single-mode fiber(SMF) with duplex LC connector.
This module operates at a nominal wavelength of CWDM wavelength. There are eighteen center wavelengths available from 1270nm to 1610nm, with each step 20nm, this helps the customer to increase the bandwidth of an existing video optical infrastructure without adding new fiber strands
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C.
The module is fully compliant with SMPTE 297M-2006.
Ordering Information

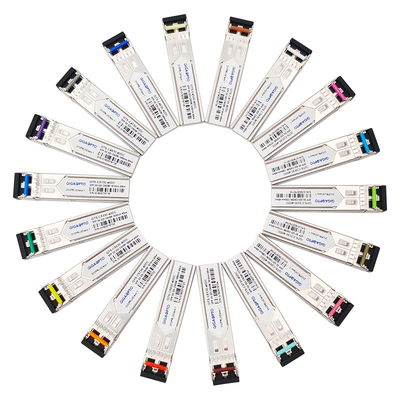

| Part Number | Description- Digital Video 3G CWDM | CWDM Channel | Reach | MSA | Latch Color |
| GTS-C2730-40DC | 3G-SDI CWDM SFP | 1270nm / -C27 | 40km | Y | Light Purple |

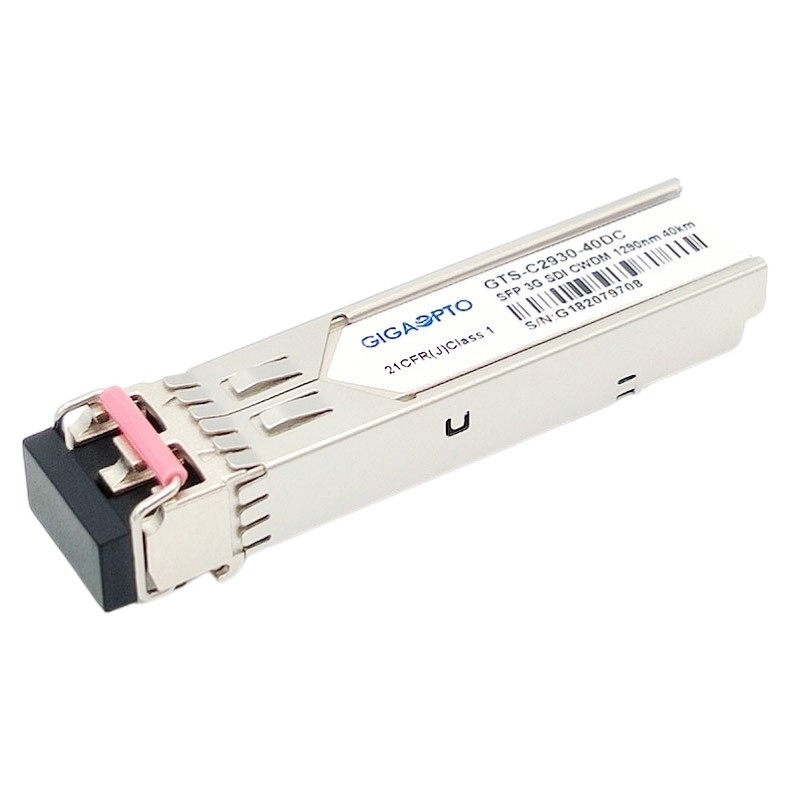

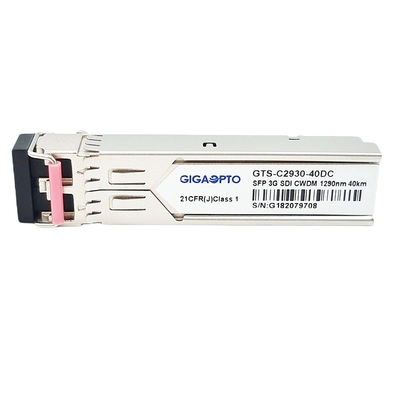

| GTS-C2930-40DC | 3G-SDI CWDM SFP | 1290nm/ -C29 | 40km | Y | Sky Blue |
| GTS-C3130-40DC | 3G-SDI CWDM SFP | 1310nm/ -C31 | 40km | Y | Yellow Green |
| GTS-C3330-40DC | 3G-SDI CWDM SFP | 1330nm/ -C33 | 40km | Y | Yellow Ocher |
| GTS-C3530-40DC | 3G-SDI CWDM SFP | 1350nm/ -C35 | 40km | Y | Pink |
| GTS-C3730-40DC | 3G-SDI CWDM SFP | 1370nm/ -C37 | 40km | Y | Beige |
| GTS-C3930-40DC | 3G-SDI CWDM SFP | 1390nm/ -C39 | 40km | Y | White |
| GTS-C4130-40DC | 3G-SDI CWDM SFP | 1410nm/ -C41 | 40km | Y | Silver |
| GTS-C4330-40DC | 3G-SDI CWDM SFP | 1430nm/ -C43 | 40km | Y | Black |
| GTS-C4530-40DC | 3G-SDI CWDM SFP | 1450nm/ -C45 | 40km | Y | Yellow Orange |
| GTS-C4730-40DC | 3G-SDI CWDM SFP | 1470nm / -C47 | 40km | Y | Gray |
| GTS-C4930-40DC | 3G-SDI CWDM SFP | 1490nm/ -C49 | 40km | Y | Vlolet |
| GTS-C5130-40DC | 3G-SDI CWDM SFP | 1510nm/ -C51 | 40km | Y | Blue |
| GTS-C5330-40DC | 3G-SDI CWDM SFP | 1530nm/ -C53 | 40km | Y | Green |
| GTS-C5530-40DC | 3G-SDI CWDM SFP | 1550nm/ -C55 | 40km | Y | Yellow |
| GTS-C5730-40DC | 3G-SDI CWDM SFP | 1570nm/ -C57 | 40km | Y | Orange |
| GTS-C5930-40DC | 3G-SDI CWDM SFP | 1590nm/ -C59 | 40km | Y | Red |
| GTS-C6130-40DC | 3G-SDI CWDM SFP | 1610nm/ -C61 | 40km | Y | Brown |
Features
Application
PIN Definition
3G SMPTE Video CWDM SFP, 1270nm-1610nm,40km Dual LC, MSA Pinout
