Product Details:
|
| Product Name: | 3G-SDI Transceiver Module | Speed Range: | 50 Mbit/s - 2.97 Gbit/s |
|---|---|---|---|
| Center Wavelength: | 1550nm | LD/PD Components: | DFB/PIN |
| Interface: | Duplex LC | Cable Distance: | 40km |
| MSA/NON MSA: | MSA | Warranty: | 3 Years |
| Keywords 1: | 3G-SDI SFP 1550nm 40km | Keywords 2: | 3G SDI SFP, 3G-SDI Video Module |
40km 1550nm DFB/PIN Transmitter & Receiver Transceiver Module with Video Pathological Patterns MSA Pinout
Functional Specification
| Product Name | 3G-SD/HD/3G-SDI SFP | Bit Rate | 50 Mbit/s - 2.97 Gbit/s |
| Module Type | Transmitter + Receiver | MSA/Non-MSA | MSA |
| Packaging | SFP | Temperature Range | 0 to 70°C (32 to 158°F) |
| Center Wavelength | 1310nm | Max Cable Reach | 40km |
| Connector | Dual LC | Fiber Type | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| Transmitter Power | -2 ~ +3dBm | Extinction ratio | > 5 dB |
| Rx Sensitivity @ SD-SDI | <-16dBm | Rx Sensitivity @ HD-SDI | <-15dBm |
| Rx Sensitivity @ 3G-SDI | <-14dBm | Receiver Overload | > 0dBm |
| Power Consumption | ≤1W | DOM | Support as default |
| Protocols | SFP MSA | Warranty Time | 3 years |
| OEM/ODM | Supported | Part No. |
GTS-L1530-40DC |
| Video Pathological Patterns Support | Yes | ||
| Application |
SMPTE 424M (2.97Gb/s) SMPTE 292M (1.485Gb/s) SMPTE 259M (270/360Mb/s) High-density Video Router Broadcast cameras Gigabit Ethernet,OC-48 and 2x Fiber Channel |
||
Description

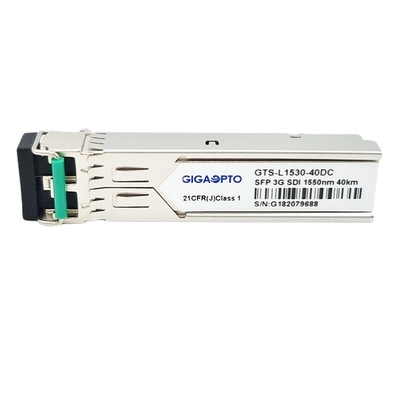

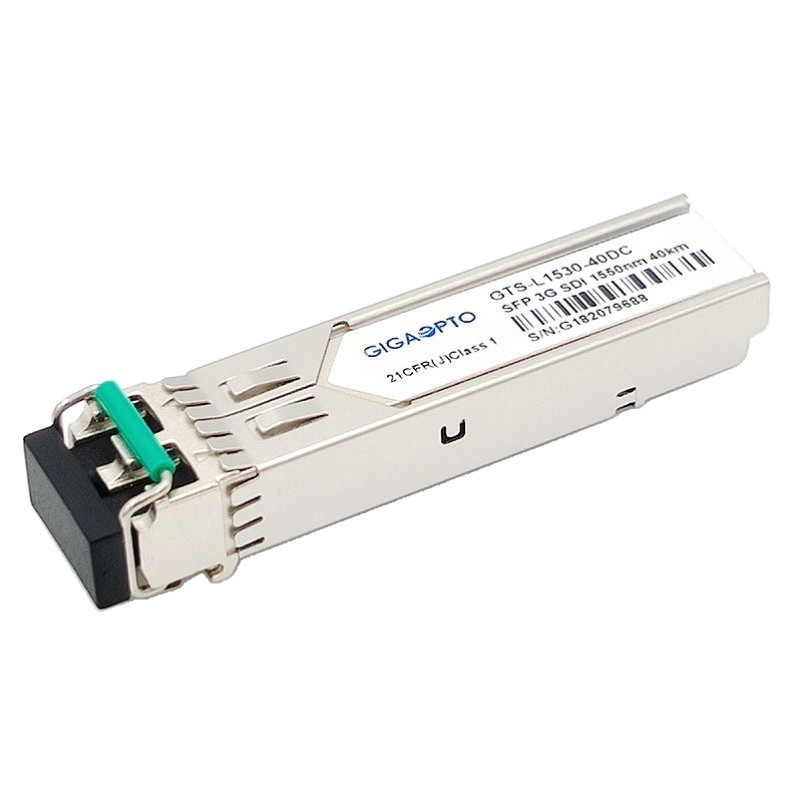

Gigaopto’s GTS-L1530-40DC transceivers are high performance, cost effective modules for duplex video transmission application over single mode fiber & Max transmission up to 40km via a wavelength 1550nm. The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
It is compliant with SFP MSA, SFF-8472 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
Features
Application
PIN Definition
3G SDI SFP Transceiver, 1550nm DFB+PIN, 40km Dual LC, MSA Pinout, SD/HD/3G SDI
