Product Details:
|
| Product Name: | 3G-SD/HD/3G-SDI MSA SFP | Bandwidth: | 50 Mbit/s - 2.97 Gbit/s |
|---|---|---|---|
| Center Wavelength: | 1310nm | Optical Components: | DFB/PIN |
| Connector: | Duplex LC | Cable Distance: | 40km |
| Warranty: | 36-month | Keywords 1: | 3G Broadcast Transceiver |
| Keywords 2: | HD-SDI SFP Transceiver | ||
| Highlight: | 1310nm Optical Transmitter Receiver,40KM Optical Transmitter Receiver,3G SDI SFP |
||
40km 1310nm DFB/PIN Transmitter & Receiver Transceiver Module with Video Pathological Patterns MSA Pinout
Functional Specification
| Product Name | 3G-SD/HD/3G-SDI SFP | Bandwidth | 50Mb/s - 2.97Gb/s |
| Module Type | Transmitter + Receiver | MSA/Non-MSA | MSA |
| Packaging | SFP | Temperature Range | 0 to 70°C (32 to 158°F) |
| Center Wavelength | 1310nm | Max Cable Reach | 40km |
| Connector | Dual LC | Fiber Type | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| Transmitter Power | -2 ~ +3dBm | Extinction ratio | > 5dB |
| Rx Sensitivity @ SD-SDI | <-16dBm | Rx Sensitivity @ HD-SDI | <-15dBm |
| Rx Sensitivity @ 3G-SDI | <-14dBm | Receiver Overload | > 0dBm |
| Power Consumption | ≤1W | Digital Diagnostic | Support as default |
| Protocols | SFP MSA | Warranty Time | 3 years |
| OEM/ODM | Supported | Part Number | GTS-L1330-40DC |
| Video Pathological Patterns Support | Yes | ||
| Application |
SMPTE 424M (2.97Gb/s) SMPTE 292M (1.485Gb/s) SMPTE 259M (270/360Mb/s) High-density Video Router Broadcast cameras Gigabit Ethernet,OC-48 and 2x Fiber Channel |
||
Description

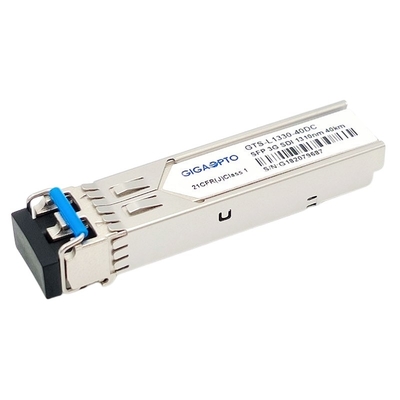

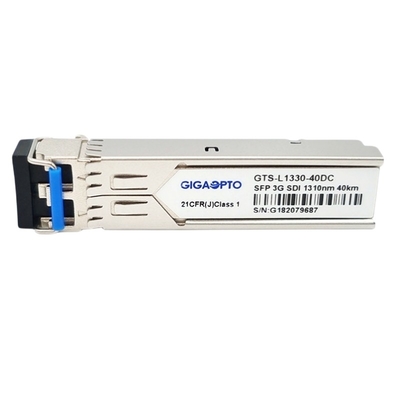

Gigaopto’s GTS-L1330-40DC 3Gbps transmitter & receiver transceiver module is for dual-channel video transmission applications up to 40km over single-mode fiber (SMF).
The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and supports SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates.The module is fully compliant with SMPTE 297M-2006. It is suitable for high-definition digital broadcasting applications.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
It is compliant with SFP MSA, SFF-8472 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
Features
Application
PIN Definition
3G SDI SFP Transceiver, 1310nm DFB+PIN, 40km Dual LC, MSA Pinout, SD/HD/3G SDI
