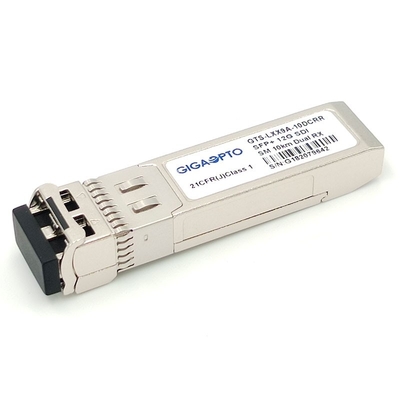

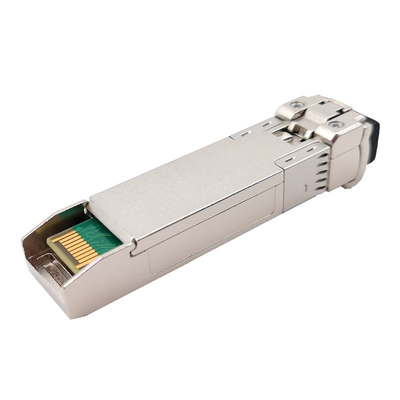

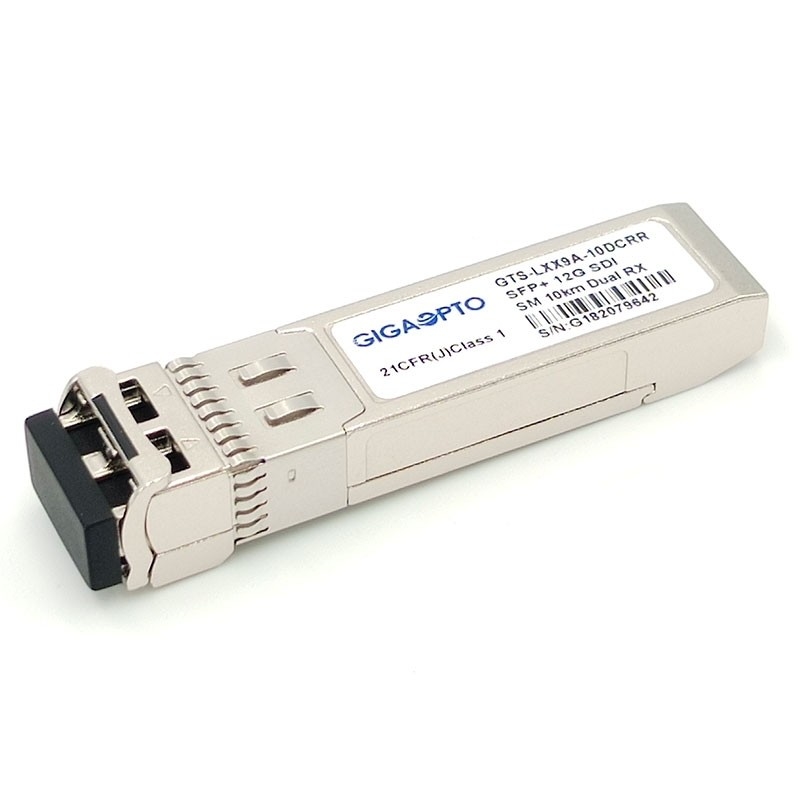

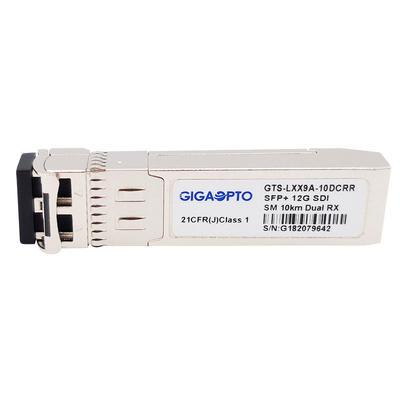

12G-SDI SFP+ Dual Receivers Module 10km LC DOM Non MSA Pinout

12G-SDI SFP+ Dual Receivers Module 10km LC DOM Non MSA Pinout
12G-SDI SFP+ Dual Receivers Module 10km LC DOM Non MSA Pinout 12G-SDI SFP+ Dual Receivers Module 10km LC DOM Non MSA Pinout 12G-SDI SFP+ Dual Receivers Module 10km LC DOM Non MSA Pinout 12G-SDI SFP+ Dual Receivers Module 10km LC DOM Non MSA Pinout

Large Image :  12G-SDI SFP+ Dual Receivers Module 10km LC DOM Non MSA Pinout

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gigaopto
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-LXX9A-10DCRR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Single Package,10 or 20pcs per Tray,30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C
Supply Ability: 50,000pcs/month

12G-SDI SFP+ Dual Receivers Module 10km LC DOM Non MSA Pinout

Description
Product Name: 12G-SDI SFP+ Dual-Receiver Module Data-Rate: 12Gbps
Module Type: SFP+ 2RX In 1 Fiber Wavelength: 1310nm-Rx1 / 1310nm-Rx2
Connector Type: Simplex LC Cable Reach: 10km
MSA/Non MSA: Non MSA Keywords: 12G-SDI SFP+ Dual Receivers Module

12G-SDI SFP+ Dual Receivers Module 10km LC DOM NON MSA Pinout





Functional Specification



Part Number GTS-LXX9A-10DCRR Data Rate 50Mbps~11.88Gb/s
Product Name 12G-SDI SFP+ Dual-Receiver MSA/Non-MSA Non MSA
Module Type Dual RX Temperature 0 to 70°C (32 to 158°F)
Wavelength 1310nm-Rx1 / 1310nm-Rx2 Cable Transmission 10km
Fiber Connector Duplex LC Fiber Type Single-mode fiber
Transmitter Part N/A Receiver Type PIN
Power Supply Voltage 3.3V Supply Current 260mA
Rx Sensitivity@ 11.88Gbps <-11dBm Rx Sensitivity@ 5.94Gbps <-13dBm
Rx Sensitivity@ 2.97Gbps <-15dBm Receiver Overload >1.0dBm
DIGITAL DIAGNOSTIC Yes Warranty Time 3-year
OEM/ODM Supported MTBF 1,000,000Hours
Protocols SMPTE ST 259, SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1





Product Description



The GTS-LXX9A-10DCRR_12G is a dual channel optical receiver module designed to receive optical serial digital signals as defined in SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI. It supports up to 12Gbps and is specifically designed to receive the pathological patterns for HD-SDI, 3G-SDI,6G-SDI, and 12G-SDI. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. A maximum distance of 10 km is achievable with 12Gbps pathological signals.

The Receiver includes these sections: PIN photodiodes integrated with a trans-impedance preamplifier(TIA),Reclockers , and a MCU controller.





Features



  • SD/HD/3G/6G/12G-SDI SFP Dual-Receiver Module
  • ST 259, ST 292-1, ST 424, ST-2081 and ST-2082 compatible
  • Metal enclosure for Lower EMI
  • 2-channel PIN receivers w/o transmitter
  • Distance up to 10km
  • Supports SDI pathological patterns for SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
  • Dual LC connector
  • With reclocker in the module
  • Single 3.3V power supply
  • Hot-pluggable SFP footprint
  • Operating case temperature: 0 to +70°C
  • RoHS-6 compliant and Lead-Free



Application



  • Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
  • UHDTV/HDTV/SDTV Service Interfaces



PIN Definition

12G-SDI SFP+ Dual Receivers Module 10km LC DOM Non MSA Pinout 0
