Product Details:
|
| Product Name: | 1.5G CATV WDM BOSA | Wavelength: | 1310nm_TX/1550nm_RX |
|---|---|---|---|
| Data Rate: | 1.5G | Operating Temp.(℃): | 0 -75℃ / -20- 85℃ |
| Output Power @25℃: | 1.1-2.99mW | Responsivity: | 0.8A/W |

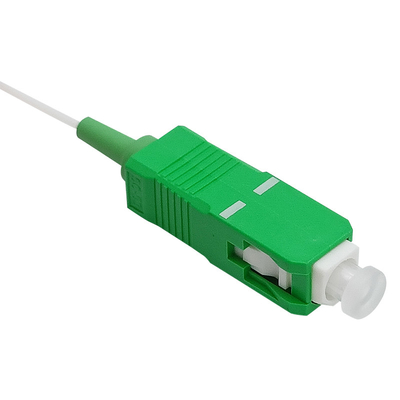

| Highlight: | LC APC Pigtail,1550nm SC APC Pigtail,Fiber Pigtail SC |
||

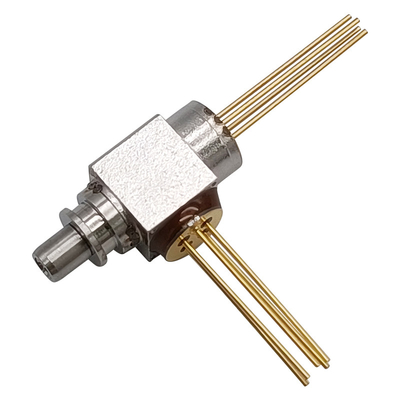

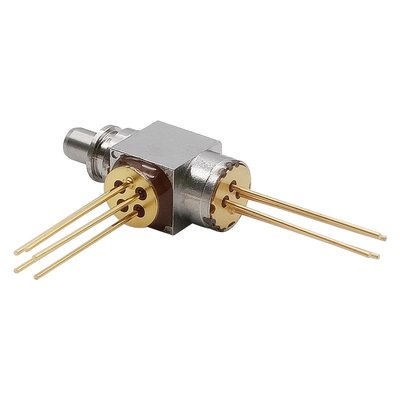

1.5G CATV WDM BOSA LC receptacle SC ST FC APC Pigtail TX 1310nm RX 1550nm
Features:
Applications:
Absolute Maximum Ratings
| Parameter | Symbol | Ratings | Unit |
| Storage Temperature | Tstg | -40~+85 | ℃ |
| Operating Case Temperature | Top | -20~+85 | ℃ |
| Reverse Voltage (Monitor PD) | VRD | 20 | V |
| Photodiode Forward Current (Monitor PD) | IFD | 2 | mA |
| Lead Soldering (Temperature)/(Time) | --- | 260/10 | ℃/Sec |
| Reverse Voltage (Analog PD) | Vrpd | 30 | V |
| Forward Current (Analog PD) | Ifpd | 10 | mA |
Note1: Exceeding any one of these values may destroy the device immediately
Electrical and Optical Characteristics – Transmitter
(If=Ith+20mA, Pf=1mW, SMF (9.5/125µm), Tc=+25+/-2°C, unless otherwise noted.)
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Threshold Current | Ith | at Tc=25±3℃ | --- | 10 | 15 | mA |
| Output Power (After coupled) | Pf | CW, Iop=Ith+20mA | 1.0 | --- | 2.99 | mW |
| Slope Efficiency | Se | CW, Average | 0.05 | --- | 0.15 | mW/mA |
| Operating Voltage | Vop | CW, Iop=Ith+20mA | --- | 1.1 | 1.6 | V |
| Peak Wavelength | λc |
CW, Iop=Ith+20mA, Tc= -20~85°C |
1290 | 1310 | 1330 | nm |
| Side Mode Suppression Ratio | SMSR |
CW, Iop=Ith+20mA, Tc= -20~85°C |
35 | 40 | --- | dB |
| Monitor Current | Imon | CW, Iop=Ith+20mA | 0.1 | --- | 1.0 | mA |
| Monitor Dark Current | Id | VRD=5V | --- | --- | 0.1 | μA |
| Relative intensity Noise | --- | --- | --- | --- | -145 | dB/Hz |
| Optical Isolation | Iso | --- | 30 | --- | --- | dB |
| Tracking Error | TE | APC,-20℃~+85℃ | -1.5 | --- | 1.5 | dB |
| Rise/Fall Time | Tr/Tf | Ib=Ith, 20~80% | --- | 0.1 | 0.15 | ns |
Electrical / Optical Specifications – Receiver
| Parameter | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
| Operating Wavelength*Note2 | λ | --- | 1500 | 1550 | 1600 | nm |
| Active Area | Φ | --- | --- | 75 | --- | μm |
| -3dBm Bandwidth | BW | VR = 5V | 2 | --- | --- | GHz |
| Dark Current | Id | VR = 5V | --- | --- | 1.0 | nA |
| Responsivity | R | λ=1550nm | --- | 0.80 | --- | A/W |
Note: Receiver Operating Wavelength can be customized.
Pin Assignment
Package Dimension
