Product Details:
|
| Data Rate: | 1.25Gbps | Wavelength: | TX1310nm/RX1550nm |
|---|---|---|---|
| Connector: | LC/SC Receptacle | Transmitter Type: | FP |
| Receiver Type: | PIN | Sensitivity: | <-25dBm |
| Keywords: | 1.25G BOSA T1310nm R1550nm, 1310nm FP 1550nm PIN | ||
| Highlight: | TX1310nm Optical SubAssembly,RX1550nm Optical SubAssembly,1.25Gbps Optical SubAssembly |
||

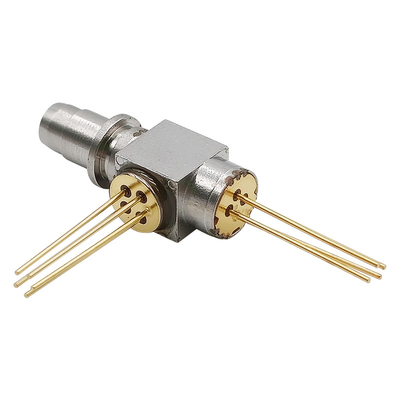

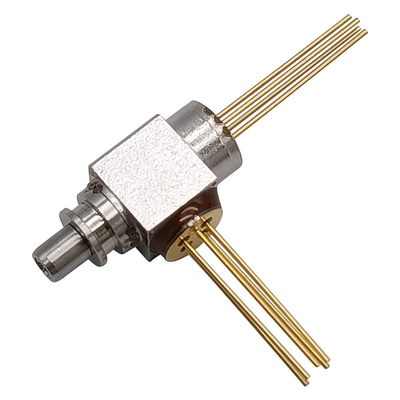

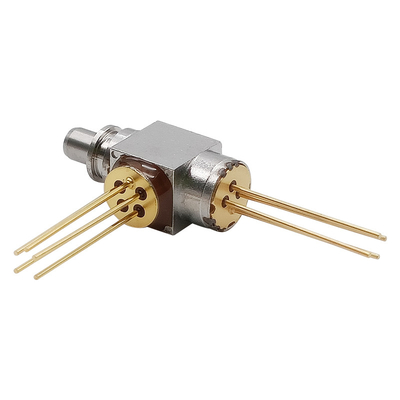

1.25G Bi-directional Optical Sub-Assembly WDM TX1310nm FP/RX1550nm PIN BOSA LC SC
Description
The GIGAOPTO's BOSA-T1310FP-R1550PIN-1.25G-LC-REC transceiver supports data-rate of 1.25Gbps with single mode fiber. The transmitter side uses a 1310nm FP laser. The receiver side uses a 1550nm PIN with TIA.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Test Condition |
| Reverse Voltage | VR | --- | 2 | V | CW |
| Operating Case Temperature | Top | -20 | +70 | ℃ | |
| Storage Temperature | Tst | -40 | +100 | ℃ | |
| Soldering Temperature/Time | TS | --- | 260/10 | ℃/S |
Optical & Electrical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Transmitter(Tc=25℃) | ||||||
| Threshold Current | Ith | --- | 8 | 15 | mA | CW |
| Optical Output Power | Po | 0.25 | 0.4 | --- | mW | CW, If=Ith+20mA |
| Operating Voltage | Vop | --- | 1.2 | 1.8 | V | CW |
| Rise Time | Tr | --- | --- | 100 | ps | Ib=Ith, 20%~80% |
| Fall Time | Tf | --- | --- | 150 | ps | Ib=Ith, 80%~20% |
| Central Wavelength | λc | 1290 | 1310 | 1330 | nm | CW |
| Spectrum Width (-20dB) | Δλ | --- | --- | 3.0 | nm | CW |
| PD Monitor Current | Im | 100 | --- | --- | μA | CW, Iop＝Ith+20mA |
| PD capacitor | Ct | --- | 5 | 7 | pF | VRPD=5V,f=1MHz |
| Tracking Error (CW) | TE | -1.0 | --- | 1.0 | dB |
Im = const. (@ Po = 5.0 mW, TC = 25℃) TC = −40 to +85°C |
| Receiver(Tc=25℃) | ||||||
| Power Supply | VCC | 3.0 | 3.3 | 3.6 | V | |
| Supply Current | Icc | --- | 22- | 35 | mA | No loads |
| Optical Wavelength | 1530 | 1550 | 1570 | nm | ||
| Sensitivity (BER=10-10) | Sens | --- | --- | -25 | dBm |
λ=1550nm,@1.25Gbps, BER=1E-10, PRBS=27-1 |
|
Saturation Power (BER=10-10) |
Psat | 0 | --- | --- | dBm | λ=1550nm, @1.25Gbps |
| Output Resistance | Rout | 60 | 75 | 90 | Ohm | Single Ended |
| Rise/Fall times | Tr/tf | --- | --- | 400 | Ps | From20%-80% |
| Optical & Electrical Parameter | ||||||
| Cross talk | Ct | --- | --- | -45 | dB | |
| Optical Isolation | ISO | 35 | --- | --- | dB | |
Features
Application
Package Dimensions and Pin Description(LC)
