Product Details:
|
| Product Name: | 10G EPON ONU PR30 BOSA | LD/PT: | DFB+APD-TIA |
|---|---|---|---|
| Distance: | 20km | Data Rate: | Tx10G/Rx10G |
| Wavelength(nm): | 1270nm_Tx/1577nm_Rx | Operating Temp.(℃: | 0 -75℃ / -40- 85℃ |
| Output Power @25℃: | >3.0mW | Sensitivity @25℃: | < -30dBm |
| Keywords: | 10G EPON ONU, PR30 BOSA SC Pigtail | ||
| Highlight: | APC Optical SubAssembly,Symmetrical Optical SubAssembly,UPC Sc Pigtail |
||

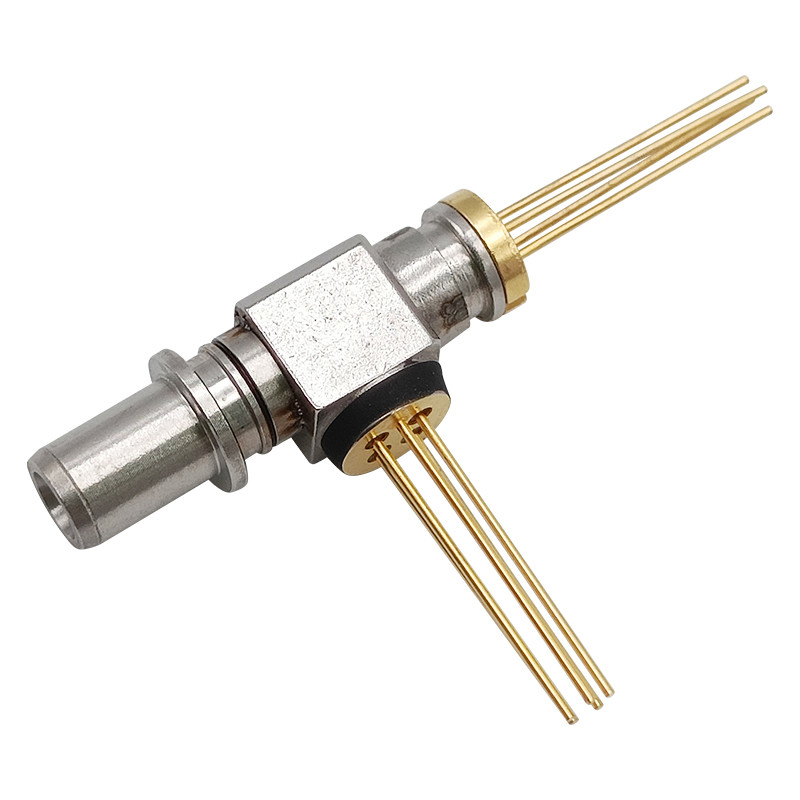

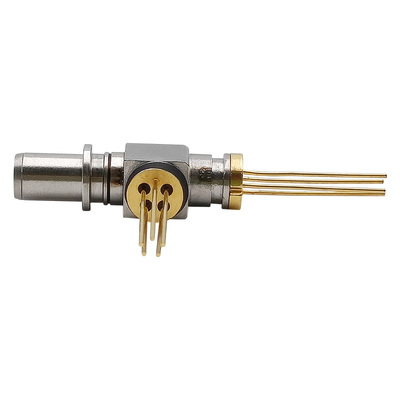

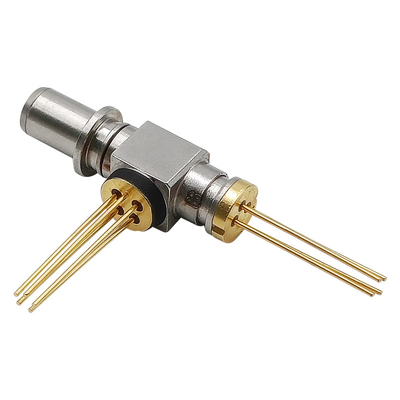

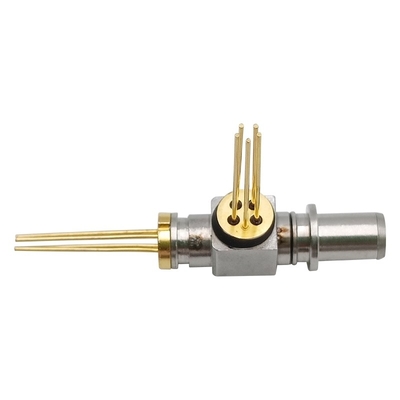

10GEPON ONU BOSA PR30 Symmetrical SC APC UPC pigtail TX 1270nm DFB 10G RX 1577nm APD 10.3125G FTTH FTTX
Adopt laser welding scheme
Point to point application
High optical isolation
High sensitivity APD-TIA
Working temperature: 0～75℃ or -40~85℃
Plug-in SC BOSA
Absolute Maximum Ratings
| Item | Symbol | Unit | Min | Max | Note |
| Storage Temperature | TSTG | ℃ | -40 | +85 | |
| Operating Temperature (ambient) | TOPR | ℃ | 0 | +75 | |
| Supply Voltage | VCC | V | -0.5 | 4.5 | |
| Lead Soldering Temperature (Max10 sec) |
TS | ℃ | --- | 260 | |
| Forward Current (LD) | IFLD | mA | --- | 150 | |
| Reverse Voltage (LD) | VRLD | V | --- | 2 | |
| Forward Current (MPD) | IFMPD | mA | --- | 2 | |
| Reverse Voltage (MPD) | VRMPD | V | --- | 20 | |
| Forward Current (PD) | IFPD | mA | --- | 10 | |
| Reverse Voltage (PD) | VRPD | V | --- | 20 |
Transmitter Electro-Optical Characteristics (TC=25°C, CW)
| Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
| Threshold Current | ITH | TC=25℃ | --- | -- | 15 | mA |
| TC=0℃～75℃ | --- | -- | 40 | |||
| Forward Voltage | VF | PF=PF (Min), TC =25℃ | --- | --- | 1.5 | V |
| Optical Output power | Pf | CW, @ITH+20mA, 25℃, kink free | 3.0 | --- | --- | mW |
| Optical Output power | Pf | CW, @ITH+20mA, 0℃～75℃ | 1.8 | mW | ||
| Optical Output power | Pf | mW | ||||
| Center Wavelength | λC | CW, TC=0℃～75℃,TX;1270nm | 1260 | 1270 | 1280 | nm |
| Monitor Current | IM | CW,Pf=Ith+20mA, VRMPD=1.5V, Tc=25C, |
100 | --- | 900 | uA |
| Tracking Error | ΔPf/Pf | 0℃～75℃, CW, Pf (Ith+20mA)@IM hold | -1.5 | --- | +1.5 | dB |
Receiver Electro-Optical Characteristics (TC=25°C , Vcc=3.3V)
| Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
| Supply Current | ICC | --- | --- | --- | mA | |
| Operation Wavelength | λ | RX:1577nm | 1575 | 1577 | 1580 | nm |
| Saturation Power | PSAT | Tc=-0℃～75℃(Test at 10.3125Gbps PRBS31 ER=6dB BER<10E-3) |
-8 | --- | --- | dBm |
| Sensitivity | Sen | Tc=0℃～75℃(Test at 10.31252Gbps PRBS31 ER=6dB BER<10E-3) |
--- | -30 | dBm | |
| Optical Return Loss | ORL | λ=1577nm | 20 | --- | --- | dB |
| Optical Crosstalk | XTALK | 1270nm/1577nm | 40 | --- | dB |
Dimension Outline
