Product Details:
|
| Reverse Voltage: | ＜20V | Saturation Input Power: | ＜10dBm |
|---|---|---|---|
| Active Diameter: | 75μm | Return Loss: | ＜-50dB |
| Bandwidth: | ＞1.5GHz | Capacitance: | 0.6pF |
| Highlight: | 5G Optical Subassembly,TIA Optical Subassembly,3G UPC Pigtail |
||

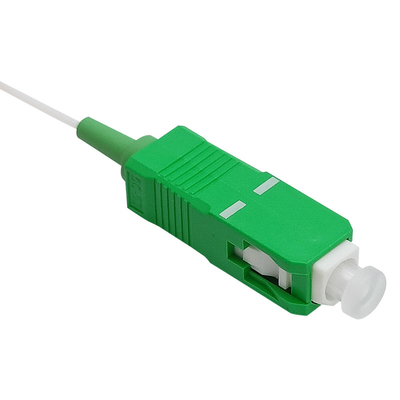

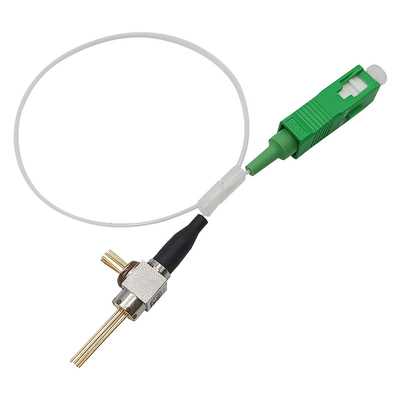

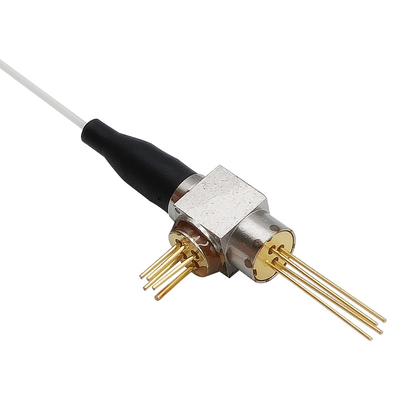

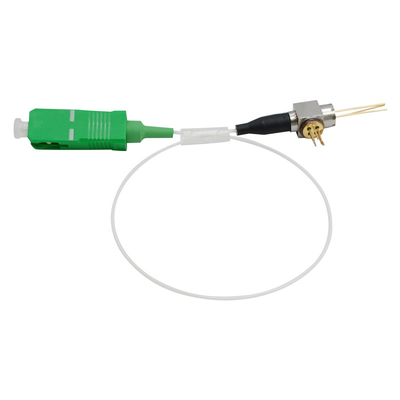

2G 3G 5G Pigtail FC SC ST UPC APC Photodiode without TIA optical subassembly ROSA CATV
Features:
Description:
The ROSAs are InGaAs/InP PIN photodiode modules designed for fiber optic communication systems. These modules are with pigtail, and have high responsivity, high speed and low dark current.
A photodiode is mounted into a low capacitance coaxial package integrated with a single mode fiber pigtail.
Absolute Maximum Ratings:
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | TST | -40 | 100 | ℃ |
| Operating Temperature | TOP | -40 | 85 | ℃ |
| Reverse Voltage | VR | --- | 20 | V |
| Saturation Input Power | PIN | --- | 10 | dBm |
| Soldering Temperature / Time | Ts/t | --- | 260/10 | °C/S |
Electrical and Optical Characteristics:
(Vr=5V, Tc=+25°C, unless otherwise noted.)
| Parameter | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
| Detection Wavelength Range | λ | --- | 1100 | --- | 1650 | nm |
| Active Diameter | DA | --- | --- | 75 | --- | μm |
|
Responsivity |
R |
VR=-5V@1310nm | 0.80 | 0.85 | --- | A/W |
| VR=-5V@1550nm | 0.85 | 0.90 | --- | A/W | ||
| Return Loss | RL | - | --- | --- | -50 | dB |
| Dark Current | Id | VR = 5V | --- | 0.15 | 1 | nA |
| Capacitance | Cp | VR = 5V | --- | 0.6 | 0.7 | pF |
| Bandwidth | BW | VR=5V | 1.5 | --- | --- | GHz |
| IMD2 | CSO | λ=1310nm | --- | -75 | -70 |
dBc |
Pin Assignment:
Pigtail Package Dimension:
