Product Details:
|
| Product Name: | 3G SDI ROSA | Wavelength: | 1310nm |
|---|---|---|---|
| Sensitivity: | <-22dBm | Overload: | 0dBm |
| OEM/ODM: | Supported | Optical Power: | ＜5dBm |
| Highlight: | CATV Receiver Optical Subassembly,TIA Receiver Optical Subassembly,LC ROSA |
||

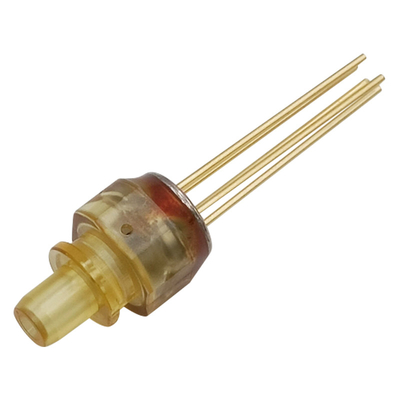

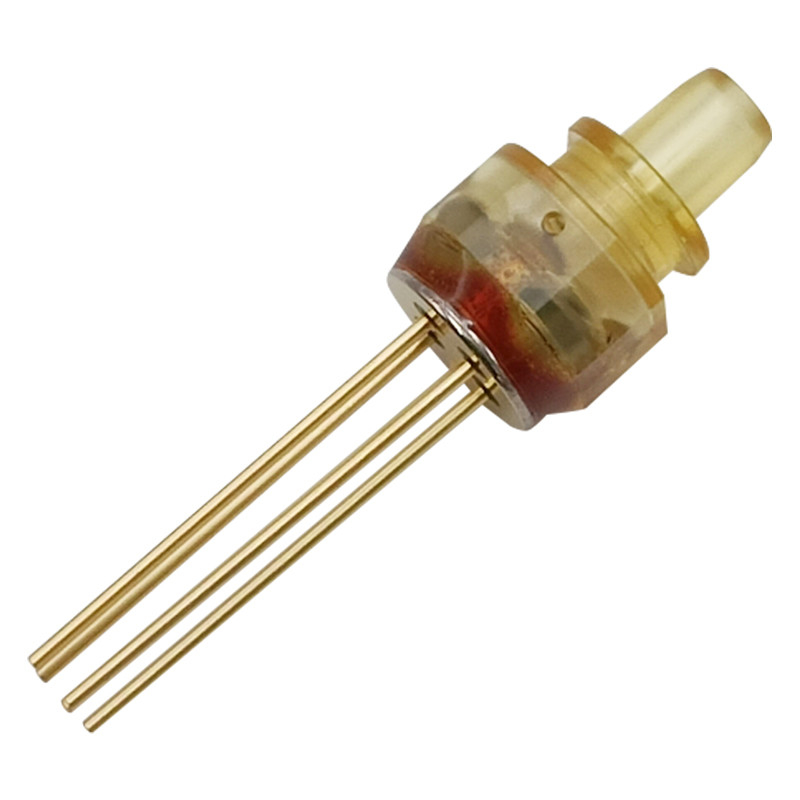

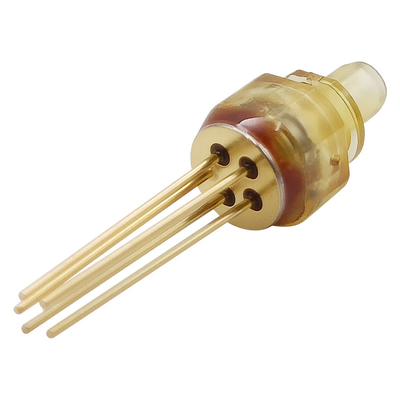

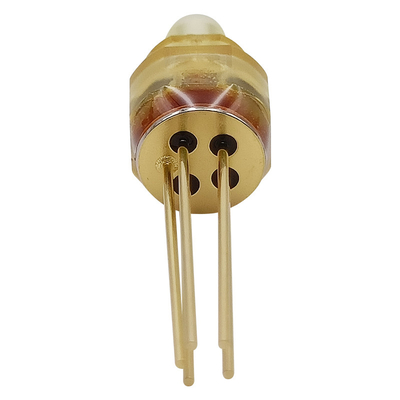

3G Video CATV PIN TIA Receiver LC ROSA
Features
Applications
Description
This ROSA is a TO-based 3G, 5 pin PIN-TIA. The product is designed for SD-SDI, HD-SDI and 3G-SDI data rates. A photodiode is mounted into a low capacitance coaxial package integrated with a receptacle.
Absolute Maximum Ratings:
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | Tstg | -40 | 100 | ℃ |
| Operating Temperature | Top | -40 | 85 | ℃ |
| Power Supply Voltage | VP | -0.5 | 4 | V |
| Optical Power | Pin | - | 5 | dBm |
| Soldering Temperature / Time | - | 260/10 | °C/S |
Electrical and Optical Characteristics:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Operating Wavelength | λ | 1100 | 1310 | 1650 | nm | |
| Supply Voltage | V | V | ||||
| Supply Current | Icc | 41 | 52 | mA |
Vcc=3.3V,P = 0 W, RL =50 |
|
| Optical Power | Psat | - | - | 5 | dBm | VR=5V,25°C |
|
High Frequency Bandwidth(-3dB) |
BW | 2.1 | 3 | GHz | RL = 50 | |
|
Low Frequency Bandwidth (-3dB) |
BW1 | 500 | kHz | RL = 50 | ||
|
Sensitivity |
- |
-22 |
dBm |
λ=1310nm,Speed=2.97G PRBS=223-1, BER=10-12, ER=9-10dB SM fiber |
||
| Rise/Fall Time | Tr/Tf | 150/150 | ps | |||
|
Overload Power |
Pload |
0 |
dBm |
PRBS=223-1, BER=10-12, ER=9-10dB | ||
| Output Resistance | Ro | 50 | Ω | |||
| RSSI Slope | 0.9 | 1.0 | 1.1 | mA/mA | ||
| RSSI Offset | 0 | 25 | 200 | nA | ||
| RSSI Linearity Limit | 1.0 | mA |
