Product Details:
|
| Product Name: | 2.5G APD Pigtail | Wavelength: | 1550nm |
|---|---|---|---|
| Temperature: | 0-75℃ / -40 - 85℃ | Sensitivity: | <-31dBm |
| Overload: | >-6dBm | PD Responsivity: | ＞0.65A/W |
| Highlight: | 2.5G APD Receiver,10G APD Receiver,SC APC pigtail |
||

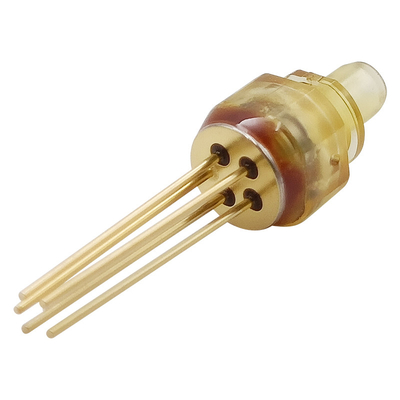

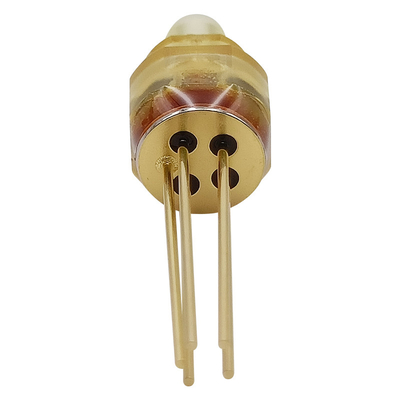

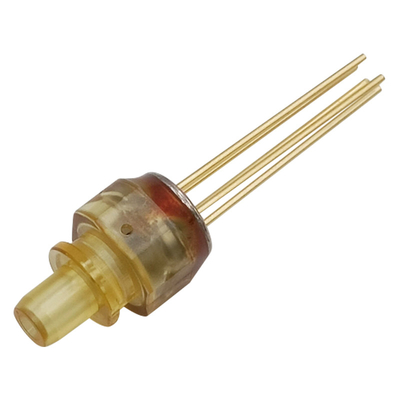

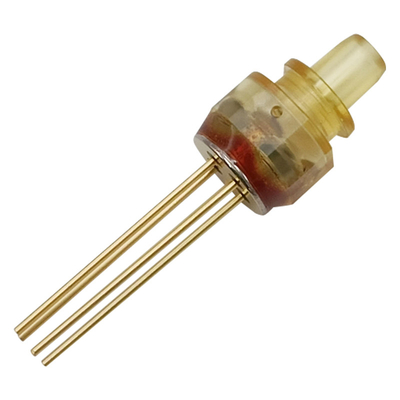

Single Mode SM 155M 1.25G 2.5G 10G PIN TIA APD Receiver Optical Sub-Assembly ROSA FC SC ST APC UPC Pigtail
1. Absolute Maximum Ratings (Tc=25℃, unless otherwise noted)
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | Tstg | -40 | 85 | ℃ |
| Operating Case Temperature | Top | -40 | 85 | ℃ |
| TIA Supply Voltage | Vcc | 2.97 | 3.46 | V |
| Hand Lead Soldering (Temperature)/(Time) | --- | --- | 260/10 | ℃/Sec |
2. Receiver Optical and Electrical Characteristics
(Unless specified else,the specifications below are defined at TC=25±3℃ )
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
|
Operating Wavelength |
λ | 1270 | 1550 | 1610 | nm | |
| Breakdown Voltage | VBR | 33 | 45 | 58 | V | Id=10μA, Vcc off |
| Supply Voltage | Vcc | 2.97 | 3.3 | 3.6 | V | |
| TIA Supply Current | Icc | 10 | 18 | 25 | mA | DC |
| PD Responsivity | R | 0.65 | --- | --- | A/W | λ=1550nm,CW |
|
Sensitivity |
S |
--- |
--- |
-31 |
dBm |
NRZ, λ=1550nm, 2.5 Gbps ,PRBS223-1, BER=10-10,ER=9dB, |
|
Overload Power |
P0 |
-6 |
--- |
--- |
dBm |
NRZ, λ=1550nm, 2.5 Gbps ,PRBS223-1, BER=10-10,ER=9dB, |
Pigtail Package Dimension:
