Product Details:
|
| TIA Supply Voltage: | 2.97~3.46V | Supply Voltage: | 3.3V |
|---|---|---|---|
| TIA Supply Current: | 27mA | PD Responsivity: | ＞0.65A/W |
| Sensitivity: | ＜-26dBm | Overload Power: | ＞-6dBm |
| Highlight: | 155M Optical SubAssembly,Single Mode Optical SubAssembly,TIA APD Receiver |
||

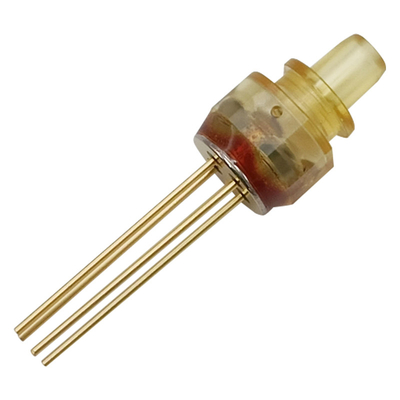

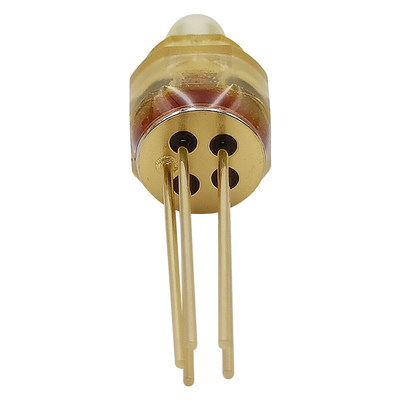

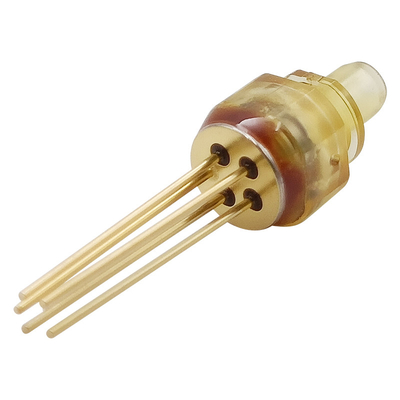

Single Mode SM 155M 1.25G 2.5G 10G PIN TIA APD Receiver Optical SubAssembly ROSA FC SC ST Receptacle
Features
◆ LC receptacle with fiber stub
◆ High sensitive APD-TIA
Applications
◆ 10 Gbps 1550nm 5pin LC ROSA
◆ Compliant the with ROHS (Restriction on Hazardous Substance) standard
Absolute Maximum Ratings
(Tc=25℃, unless otherwise noted)
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | Tstg | -40 | 85 | ℃ |
| Operating Case Temperature | Top | -40 | 85 | ℃ |
| TIA Supply Voltage | Vcc | 2.97 | 3.46 | V |
| Hand Lead Soldering (Temperature)/(Time) | --- | --- | 260/10 | ℃/Sec |
Receiver Optical and Electrical Characteristics
(Unless specified else,the specifications below are defined at TC=25±3℃ )
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
|
Operating Wavelength |
λ | 1270 | --- | 1610 | nm | |
| Breakdown Voltage | VBR | 27 | 33 | 45 | V | Id=10μA, Vcc off |
| Supply Voltage | Vcc | 2.97 | 3.3 | 3.6 | V | |
| TIA Supply Current | Icc | --- | 27 | 43 | mA | DC |
| PD Responsivity | R | 0.65 | --- | --- | A/W | λ=1550nm,CW |
|
Sensitivity |
S |
--- |
--- |
-26 |
dBm |
NRZ, λ=1550nm,10.3125 Gbps ,PRBS231-1, BER=10-12,ER=5dB, |
|
Overload Power |
P0 |
-6 |
--- |
--- |
dBm |
NRZ, λ=1550nm,10.3125 Gbps ,PRBS231-1, BER=10-12,ER=6dB, |
ROSA Package Outline:
