Product Details:
|
| Product Name: | 12G-SDI SFP+ RX | Bit Rate: | 12G |
|---|---|---|---|
| Center Wavelength: | 1310nm | MSA/Non MSA: | Non MSA |
| Connector: | Simplex LC | Max Cable Length: | 10km |
| Warranty: | 3 Years | Keywords 1: | 12G SFP+ Single RX |
| Keywords 2: | 12G Video 10KM | ||
| Highlight: | 10km SFP Receiver,1310nm SFP Receiver,12G SDI Receiver |
||

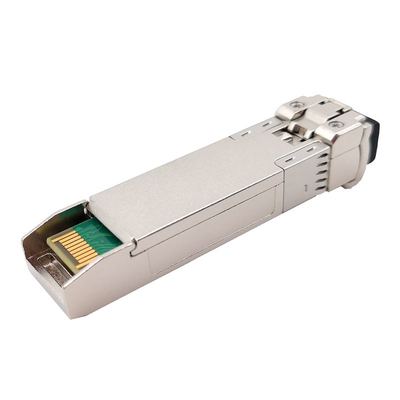

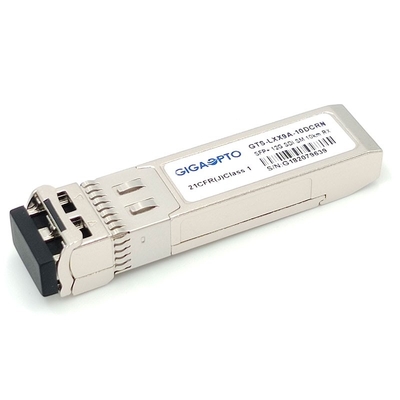

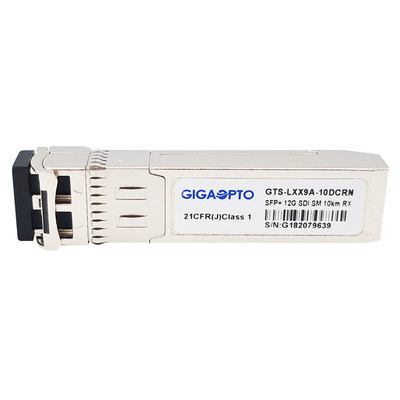

12Gb/s Non-MSA 1310nm 10km DOM LC SMF Single Receiver Video Pathological Patterns Transceiver Module for SD/HD/3G/6G/12G SDI
Functional Specification
| Part Number | GTS-LXX9A-10DCRN | Data Rate | 50Mb/s~11.88Gb/s |
| Module Type | SFP+ Single Receiver | MSA/Non-MSA | Non MSA |
| Package | SFP+ | Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Center Wavelength | 1310nm | Fiber Transmission | 10km |
| Interface | Simplex LC | Cable Type | Single-mode fiber |
| Transmitter Component | N/A | Receiver Type | PIN |
| Power Supply Voltage | 3.3V | Supply Current | 150mA |
| Rx Sensitivity@ 11.88Gbps | <-11dBm | Rx Sensitivity@ 5.94Gbps | <-13dBm |
| Rx Sensitivity@ 2.97Gbps | <-15dBm | Receiver Overload | >1.0dBm |
| DDMI | Yes | Warranty Time | 3 years |
| OEM/ODM | Supported | Unit Weight | 0.025kg |
| Protocols | ST 259, ST 292-1, ST 424, ST-2081 and ST-2082 | ||
Products Description
This 12G-SDI SFP+ Rx single-receiver optical module is designed for 12G-SDI video broadcast network links reach up to 10km over Single-Mode Fiber (SMF), receiving a single lane of 12G-SDI video signals.
The Receiver is compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST259 (SD-SDI).
The Receiver includes these sections: a PIN photodiode integrated with a trans-impedance preamplifier (TIA),Reclocker , and a MCU controller. Each video transceiver is RoHS compliant.
Features
Application
PIN Definition
