LC TOSA Optical SubAssembly 1310nm 1550nm FP DFB 1.25G 2.5G 3G 10G Transmitter Optical Subassembly

Description
Forward Current (LD): 150mA Reverse Voltage (LD): 2V
Reverse Voltage (PD): 20V Reverse Current (PD): 2mA
Threshold Current: 8mA Fiber Coupling Power: 1.5mW
Highlight:

TOSA Optical SubAssembly

,

LC Optical SubAssembly

,

10G Transmitter Optical Subassembly

LC TOSA 1310nm 1550nm FP DFB 1.25G 2.5G 3G 10G Video SONET SDH Datatelecom





Description:



TOSA-1310-FP-3G-LC-10km Series are 1310nm InGaAsP/InP MQW-DFB laser diode modules designed for fiber optic communication systems. These modules are transmitter optical sub-assembly with low threshold current and high performance at high temperature, ideally suitable for short reach applications of data rates from 155M to 2.5G.

A laser diode is mounted into a Ǿ5.6mm coaxial package integrated with an InGaAs monitor PD, a single -mode fiber-stub and a split sleeve for the optical connector with Ǿ1.25mm ferrule. And we can also provide two connector types of fiber-stub cover. One is ceramic insulated, The other is not insulated. However, the optical connector with Ǿ2.92mm is ceramic and fiber-stub cover is insulated.





Ordering Information:



Part No. Connector Type Pin Type Power Data Rate Isolator
OSML-TOSA21BD013 2 LD-Pin-2 01 1.25G None
OSML-TOSA22BD023G 2 LD-Pin-2 02 2.5G Single Stage

*Note1: For more ordering information, please refer the nomenclature and contact us.





Absolute Maximum Ratings:



Parameter Symbol Ratings Unit
Storage Temperature Tstg -40~+100
Operating Case Temperature Top -40~+85
Forward Current (LD) IFD 150 mA
Reverse Voltage (LD) VrL 2 V
Reverse Voltage (PD) VrP 20 V
Reverse Current (PD) IrP 2 mA
Soldering Temperature (<10s) Stemp 260

*Note: Exceeding any one of these values may destroy the device immediately.





Electrical and Optical Characteristics:

(Pf=1mW, SMF (9.5/125µm), Tc=+25°C, unless otherwise noted.)



Parameter Symbol Condition Min. Typ. Max. Unit
Threshold Current Ith CW 8 15 mA
Fiber Coupling Power Pf CW, If=Ith+20mA 1 1.5 2.5 mW
Operating Voltage Vf CW, Tc=-40~+85℃ 1.2 1.6 V
Slope Efficiency Se CW, Average(Ith to Ith+20mA) 0.05   0.14 mW/mA



Peak Wavelength



λp

CW 1290 1310 1330 nm
CW, Tc=-40~+85°C 1265   1355

Side mode suppression

ratio

SSR CW, Tc=-40~+85°C 35 40   dB
Rise Time tr

Ib=Ith, 20-80%,

Tc=-40~+85°C

  0.05 ns
Fall Time tf

Ib=Ith, 80-20%,

Tc=-40~+85°C

0.15 0.05 ns
Tracking Error ΔPf

Im hold(@Pf=0.16mW(25°C))

CW, Tc=-40~+85°C

-1.5 1.5 dB
Monitor Current Im

CW, VrP=5V,

Tc=-40~+85°C

100 500 900 uA
Monitor Dark Current Id VrP=5V 10 nA
Monitor Capacitance C VrP=5V, f=1MHz 10 20 pF
Connector Repeatability   -1 1 dB

Optical Isolation



Single Stage 30

dB

Dual Stage 40





TOSA Package Series:

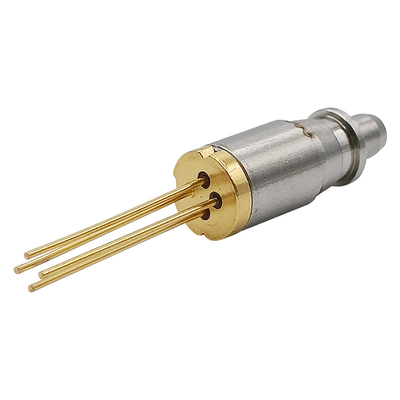

LC TOSA Optical SubAssembly 1310nm 1550nm FP DFB 1.25G 2.5G 3G 10G Transmitter Optical Subassembly 0

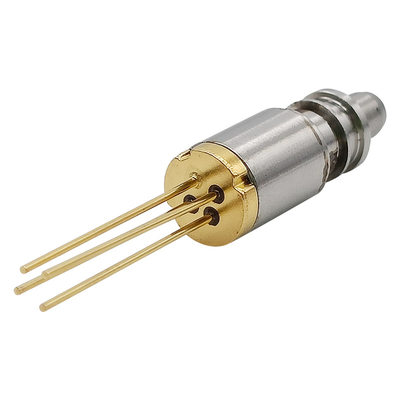

LC TOSA Optical SubAssembly 1310nm 1550nm FP DFB 1.25G 2.5G 3G 10G Transmitter Optical Subassembly 1



Pin Assignment:

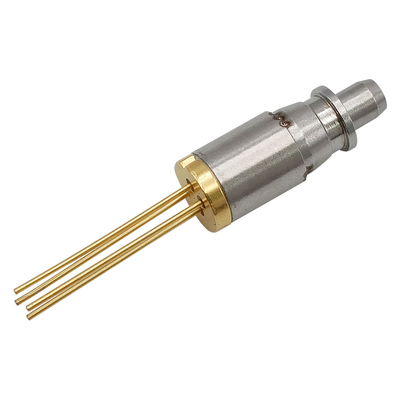

LC TOSA Optical SubAssembly 1310nm 1550nm FP DFB 1.25G 2.5G 3G 10G Transmitter Optical Subassembly 2

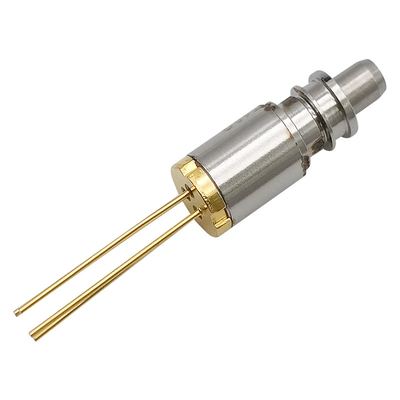

LC TOSA Optical SubAssembly 1310nm 1550nm FP DFB 1.25G 2.5G 3G 10G Transmitter Optical Subassembly 2
