Product Details:
|
| Product Name: | SFP+ Single-Receiver Module | Data Rate: | 12G |
|---|---|---|---|
| Wavelength: | 1310nm | Connector Type: | Single LC |
| Distance: | 10km | Warranty: | 36-month |
| Keywords 1: | 12G 1310nm Single-Receiver Module | Keywords 2: | OEM SDI SFP Manufacturer |
| Highlight: | MSA Optical Receiver Module,10km Optical Receiver Module,DI Video SFP |
||
12G SMPTE 10km SFP+ Single Receiver Module 1310nm Simplex LC DOM MSA Pinout for 12G/6G/3G/HD/SD-SD
Functional Specification
| Product Name | SFP+ Single-Receiver | Bandwidth | 50Mb/s~11.88Gb/s |
| Module Type | Video SFP Receiver | MSA/Non-MSA | MSA |
| Form Factor | SFP+ | Environment | Operating 0 to 70°C (32 to 158°F) |
| Wavelength | 1310nm | Max Cable Link | 10km |
| Interface /Polish | Simplex LC UPC | Cable Type | Single-mode fiber |
| Transmitter Type | N/A | Receiver Type | PIN |
| Supply Voltage | 3.3V | Supply Current | 150mA |
| Rx Sensitivity@ 11.88Gbps | <-11dBm | Rx Sensitivity@ 5.94Gbps | <-13dBm |
| Rx Sensitivity@ 2.97Gbps | <-15dBm | Receiver Overload | >1.0dBm |
| Digital Diagnostic Monitoring | Yes | Warranty | 36-Month |
| OEM/ODM | Supported | Weight | 20gram |
| Application | SMPTE ST-297-2015, ST2081 and ST-2082 Compatible Electrical-to-Optical Interfaces.UHDTV/HDTV/SDTV Service Interfaces,High-density Video Routers | ||
Products Description

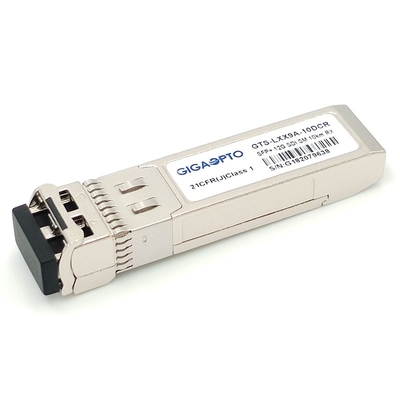

Gigaopto’s GTS-LXX9A-10DCR small form-factor pluggable Video Receiver is designed for broadcast video transmission applications to receive data rates from 50Mb/s to 11.88Gb/s, compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST259 (SD-SDI).
The Receiver includes three sections: a PIN photodiode integrated with a trans-impedance preamplifier (TIA),Reclocker , and a MCU controller. They are compliant with SFP MSA.
The 12G-SDI Receiver is compatible with optical fiber equipment that utilizes SFP slots such as the Blackmagic Mini Converter, Blackmagic Studio Camera 4K, Teranex Converter, ATEM Talkback Converter 4K, ATEM Studio Converter, ShieldRock optical-fiber extenders, etc.
