Product Details:
|
| Product Name: | 12G Video CWDM Transmitter | Data Rate: | 12Gb/s |
|---|---|---|---|
| MSA/Non-MSA: | Non-MSA | Wavelength: | 1270~1450nm CWDM Single TX |
| Connector: | Simplex LC | Cable Distance: | 20km |
| OEM/ODM: | Supported | Keywords 1: | CWDM Transmitter, CWDM Single TX |
| Keywords 2: | 12G-SDI CWDM SFP+ Transmitter | ||
| Highlight: | CWDM Video SFP Transceiver,1450nm Video SFP Transceiver,20km Video SFP Transceiver |
||

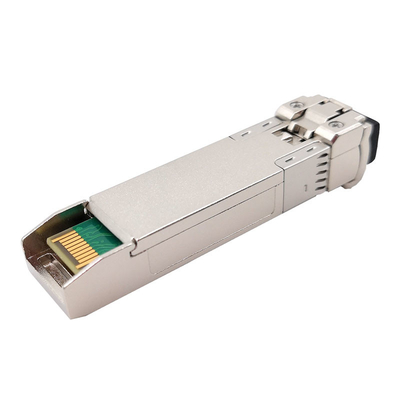

12G-SDI SFP+ Single-Transmitter Module 1270~1450nm CWDM 20km Single LC SMF Non MSA Pinout
Functional Specification
| Product Name | 12Gbps CWDM Transmitter | Data Rate | 50Mbps~11.88Gbps |
| Module Type | Single Transmitter | MSA/Non-MSA | Non MSA |
| Product Packaging | SFP+ | Temperature Range | 0 to 70°C (32 to 158°F) |
| Wavelength | CWDM 1270~1450nm | Cable Transmission | 20km |
| Interface | simplex LC | Media | Single-mode fiber |
| Laser Type | CWDM DFB | Receiver Type | Without |
| Supply Voltage | 3.3V | Supply Current | 160mA (Typ.) |
| TX Power | -1~ +2dBm | Extinction Ratio | >3.5dB |
| OEM/ODM | Yes | Warranty Time | 36-month |
| Protocols | SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 | ||
Products Description of 12G-SDI CWDM Single Transmitter Non-MSA Series
Gigaopto’s GTS-Cxx9A-20DCTN series are high-performance,cost-effective single-channel CWDM optical transmitter modules designed to transmit optical serial digital signals as defined in SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI.
It provides the maximum transmission distance of 20km over single-mode fiber under harsh conditions and 12Gbps pathological signals via a CWDM wavelength channel from 1270nm to 1450nm.
Features
Ordering Information
| Part Number | Description | CWDM Channel | Cable Distance | Latch Color |
| GTS-C279A-20DCTN | 12G Video CWDM Transmitter /1-port TX only Non MSA | 1270nm / -C27 | 20km | Light Purple |
| GTS-C299A-20DCTN | 12G Video CWDM Transmitter /1-port TX only Non MSA | 1290nm/ -C29 | 20km | Sky Blue |
| GTS-C319A-20DCTN | 12G Video CWDM Transmitter /1-port TX only Non MSA | 1310nm/ -C31 | 20km | Yellow Green |
| GTS-C339A-20DCTN | 12G Video CWDM Transmitter /1-port TX only Non MSA | 1330nm/ -C33 | 20km | Yellow Ocher |
| GTS-C359A-20DCTN | 12G Video CWDM Transmitter /1-port TX only Non MSA | 1350nm/ -C35 | 20km | Pink |
| GTS-C379A-20DCTN | 12G Video CWDM Transmitter /1-port TX only Non MSA | 1370nm/ -C37 | 20km | Beige |
| GTS-C399A-20DCTN | 12G Video CWDM Transmitter /1-port TX only Non MSA | 1390nm/ -C39 | 20km | White |
| GTS-C419A-20DCTN | 12G Video CWDM Transmitter /1-port TX only Non MSA | 1410nm/ -C41 | 20km | Silver |

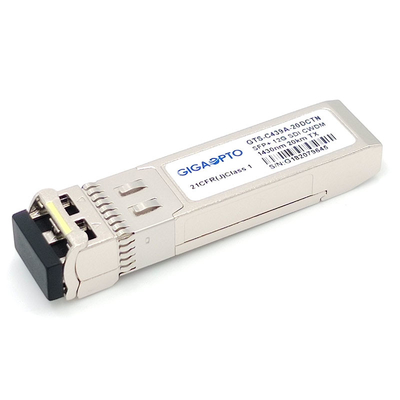

| GTS-C439A-20DCTN | 12G Video CWDM Transmitter /1-port TX only Non MSA | 1430nm/ -C43 | 20km | Black |
| GTS-C459A-20DCTN | 12G Video CWDM Transmitter /1-port TX only Non MSA | 1450nm/ -C45 | 20km | Yellow Orange |
Applications
PIN Definition
