Product Details:
|
| Product Name: | 10G EPON ONU PX30 BOSA | LD/PT: | DFB+APD-TIA |
|---|---|---|---|
| Distance: | 20km | Data Rate: | Tx1.25G/Rx10G |
| Wavelength(nm): | 1310nm_Tx/1577nm_Rx | Operating Temp.(℃): | 0 -75℃ / -40- 85℃ |
| Output Power @25℃: | >1.8mW | Sensitivity @25℃: | < -30dBm |
| Keywords: | 10G EPON ONU, PX30 BOSA, SC Pigtail | ||
| Highlight: | 10G EPON ONU,EPON ONU BOSA,10G APD |
||

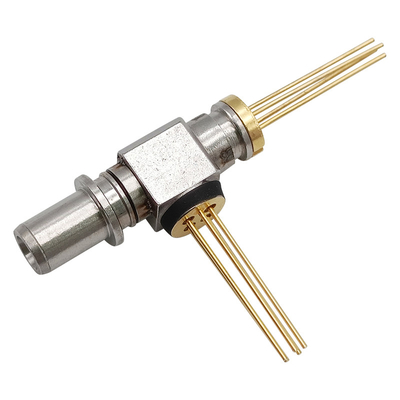

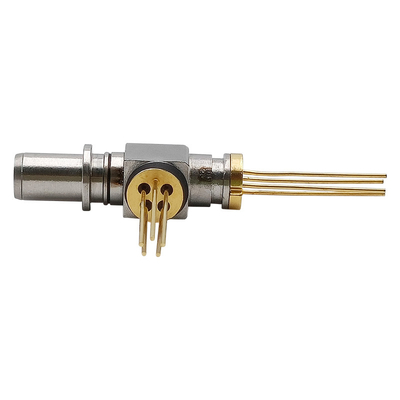

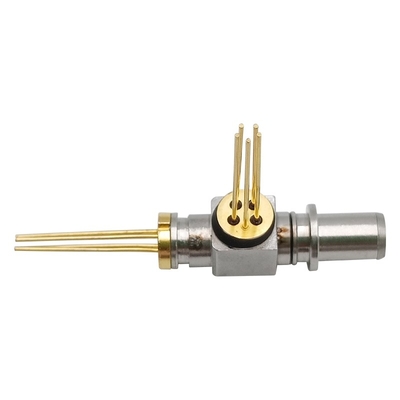

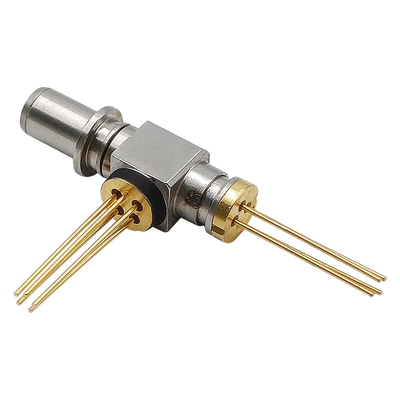

10GEPON ONU BOSA PRX30 Asymmetrical SC APC UPC pigtail TX 1310nm DFB 1.25G 1G RX 1577nm APD 10G 10.3125G FTTH FTTX
Adopt laser welding scheme
Point to point application
High optical isolation
High sensitivity APD-TIA
Working temperature: 0～75℃ or -40~85℃
Plug-in SC BOSA
Compliant with GR - 468
Absolute Maximum Ratings:
| Item | Symbol | Unit | Min | Max | Note |
| Storage Temperature | TSTG | ℃ | -40 | +85 | |
| Operating Temperature (ambient) | TOPR | ℃ | 0 | +75 | |
| Supply Voltage | VCC | V | -0.5 | 4.5 | |
| Lead Soldering Temperature (Max10 sec) |
TS | ℃ | --- | 260 | |
| Forward Current (LD) | IFLD | mA | --- | 150 | |
| Reverse Voltage (LD) | VRLD | V | --- | 2 | |
| Forward Current (MPD) | IFMPD | mA | --- | 2 | |
| Reverse Voltage (MPD) | VRMPD | V | --- | 20 | |
| Forward Current (PD) | IFPD | mA | --- | 10 | |
| Reverse Voltage (PD) | VRPD | V | --- | 20 |
Transmitter Electro-Optical Characteristics (TC=25°C , CW)
| Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
| Threshold Current | ITH | TC=25℃ | --- | -- | 15 | mA |
| TC= 0～75℃, | --- | -- | 40 | |||
| Forward Voltage | VF | PF=PF (Min), TC =25℃ | --- | --- | 1.5 | V |
| Optical Output power | Pf | CW, @ITH+20mA, 25℃, kink free | 1.8 | --- | --- | mW |
| Optical Output power | Pf | CW, @ITH+20mA, 0～75℃, | 1.1 | mW | ||
| Optical Output power | Pf | or according to customer needs | mW | |||
| Center Wavelength | λC | CW, TC=0～75℃,,TX;1310nm | 1270 | 1310 | 1360 | nm |
| Monitor Current | IM | CW,Pf=Ith+20mA, VRMPD=1.5V, Tc=25C, |
100 | --- | 900 | uA |
| Optical Return Loss tolerance | ORLT | Tested at 1270nm or1310nm | --- | --- | 12 | dB |
| Tracking Error | ΔPf/Pf | 0～75℃, CW, Pf (Ith+20mA)@IM hold |
-1.5 | --- | +1.5 | dB |
Receiver Electro-Optical Characteristics (TC=25°C, Vcc=3.3V)
| Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
| Supply Current | ICC | According to TO selection, the range will be different | --- | --- | --- | mA |
| Operation Wavelength | λ | RX:1577nm | 1575 | 1577 | 1580 | nm |
| Saturation Power | PSAT | Tc=0～75℃, (Test at 10.3125Gbps PRBS31 ER=6dB BER<10E-3) |
-8 | --- | --- | dBm |
| Sensitivity | Sen | Tc=0～75℃, (Test at 10.31252Gbps PRBS31 ER=6dB BER<10E-3) |
--- | -30 | dBm | |
| Optical Return Loss | ORL | λ=1577nm | 20 | --- | --- | dB |
| Optical Crosstalk | XTALK | 1270nm/1577nm or 1310nm/1577nm |
40 | --- | dB |
