Product Details:
|
| Product Name: | Product Name | LD/PT: | DFB+APD-TIA |
|---|---|---|---|
| Distance: | 20km | Data Rate: | Tx10G/Rx10G |
| Wavelength(nm): | 1270nm_Tx/1577nm_Rx | Operating Temp.(℃): | -40- 85℃ |
| Output Power @25℃: | 2.5 - 6.0 MW | Sensitivity @25℃: | < -30dBm |
| Keywords: | XGXPON ONU BOSA, DFB/APD SC, APC/UPC Pigtail | ||
| Highlight: | XGSPON ONU BOSA,XGSPON ONU Pigtail,SC Pigtail 20km |
||

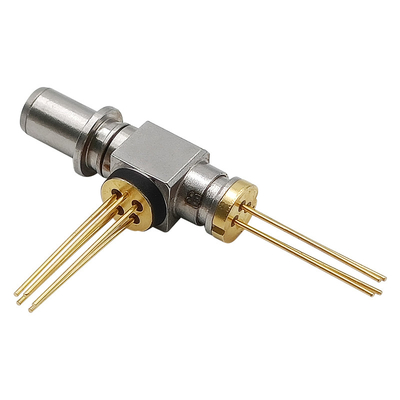

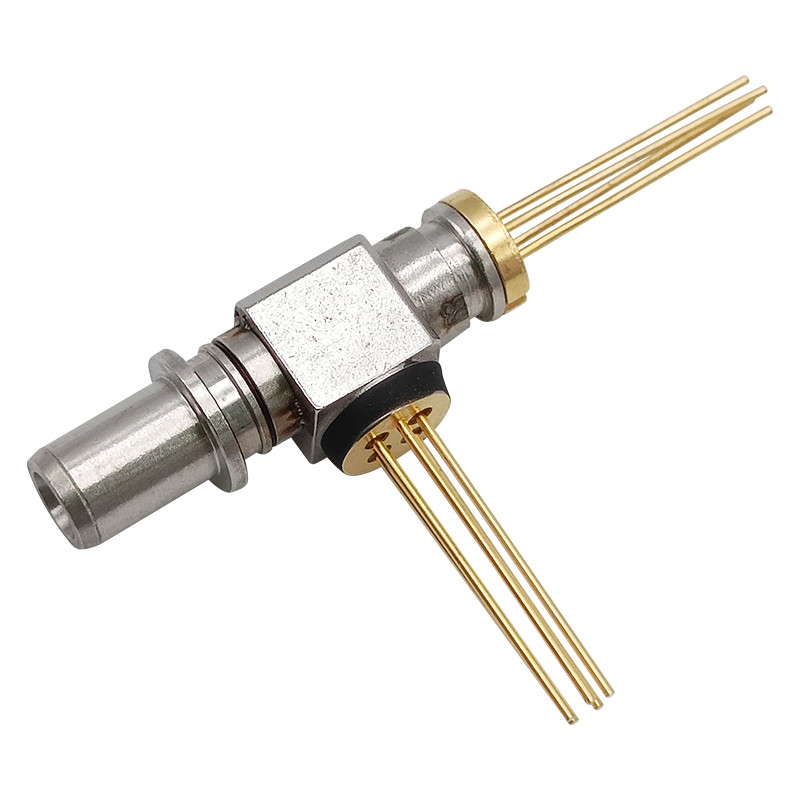

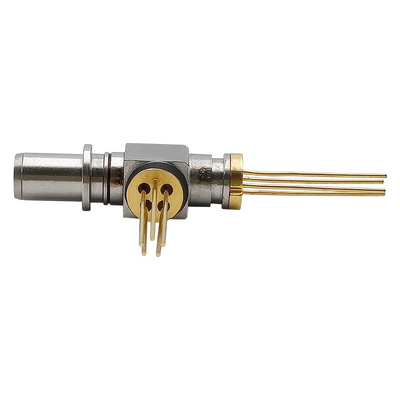

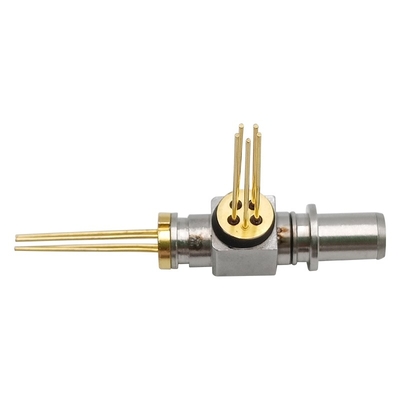

XGSPON ONU BOSA SC APC UPC pigtail Receptacle TX 1270nm 9.953G 10G DFB RX 1577nm APD 9.953G 10G FTTH FTTX
Features
Descriptions
Absolute Maximum Ratings (Tc=25±3℃, unless otherwise noted)
| Parameter | Symbol | Min. | Max. | Unit | ||||||||||||||
| Storage Temperature | Tstg | -40 | 85 | ℃ | ||||||||||||||
| Operating Case Temperature | Top | -40 | 85 | ℃ | ||||||||||||||
| Reverse Voltage(LD) | VRL | --- | 2 | V | ||||||||||||||
| Reverse Voltage(MPD) | VRD | --- | 15 | V | ||||||||||||||
| Photodiode Forward Current(MPD) | IFD | --- | 10 | mA | ||||||||||||||
| Forward Current(LD) | IFL | --- | 150 | mA | ||||||||||||||
| Lead Soldering (Temperature)/(Time) | --- | --- | 260/10 | ℃/Sec | ||||||||||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note | ||||||||||||
| Output Optical Power | Pf | 2.5 | --- | 6.0 | mW | CW, Iop= Ith+20mA, | ||||||||||||
| Threshold Current | Ith | --- | 8 | 15 | mA | CW ,Tc=25℃ | ||||||||||||
| --- | --- | 45 | mA | CW ,Tc=-40～85℃ | ||||||||||||||
| Center Wavelength | λc | 1260 | 1270 | 1280 | nm | CW, Iop=Ith+20mA Tc=-40～85℃ |
||||||||||||
| Side Mode Suppression Ratio |
SMSR | 35 | --- | --- | dB | CW, Pop=Ith+20mA | ||||||||||||
| Spectrum Width (-20dB) | △λ | --- | --- | 1.0 | nm | CW, Pop=Ith+20mA | ||||||||||||
| Operating Voltage | Vop | --- | 1.2 | 1.7 | V | CW, Iop=Ith+20mA | ||||||||||||
| Monitor Current | Imon | 0.1 | --- | 1.0 | mA | DC, Iop=Ith+20mA, | ||||||||||||
| Rise/Fall time | Tr/Tf | --- | --- | 50 | ps | 20%-80% | ||||||||||||
| Monitor Dark Current | Id | --- | --- | 100 | nA | Vrd=5V | ||||||||||||
| PD Capacitance | Ct | --- | 5 | 7 | pF | Vrd=5V@1MHz | ||||||||||||
| Tracking Error | TE | -1.5 | --- | 1.5 | dB | APC, -40℃/+25℃, +25℃/+85℃ |
||||||||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition | ||||||||||||
| Operating Wavelength | λ | 1575 | 1577 | 1580 | nm | Tc=-40℃ to 85℃ | ||||||||||||
| Supply Voltage | Vcc | 3.0 | 3.3 | 3.6 | V | Tc=-40℃ to 85℃ | ||||||||||||
| TIA Supply Current | Icc | --- | 27 | 45 | mA | Vcc=3.3V | ||||||||||||
| Sensitivity | Sen | --- | --- | -30 | dBm | λ=1577nm , 9.95Gbps PRBS=2^31-1, ER≥ 8dB,BER≤10-3, Vbr-3V, CW |
||||||||||||
| Breakdown voltage | Vbr | 25 | 33 | 45 | V | I=10uA | ||||||||||||
| Overload Power | Pol | -7 | --- | --- | dBm | λ=1577nm , 9.95Gbps PRBS=2^31-1, ER≥ 8dB,BER≤10-3, Vbr-3V, CW |
||||||||||||
| Optical Return Loss | ORL | --- | --- | -20 | dB | λ=1577nm | ||||||||||||
| Optical Crosstalk From Internal Laser |
Xopt | --- | --- | -40 | dB | 1270nm/1577nm | ||||||||||||
| Dark Current | Id | --- | --- | 100 | nA | TC =25℃ | ||||||||||||
| Rx filter specification@1260~1560nm |
Isolation | 35 | dB | 1260~1560nm | ||||||||||||||
| Rx filter specification@1595~1660nm |
Isolation | 35 | --- | --- | dB | 1595~1660nm | ||||||||||||
| Rx filter specification@1575~1580nm |
Isolation | --- | --- | 0.35 | dB |
1575~1580nm |
||||||||||||
