Product Details:
|
| Speed: | 10Gb/s | Wavelength: | TX1330nm/RX1270nm |
|---|---|---|---|
| Interface: | LC/SC Receptacle | Laser Type: | DFB |
| PD Type: | PIN | Sensitivity: | >-16dBm |
| Optical Output Power: | 0.8 To 1.6mW | Keywords: | 10G T1330nm R1270nm BOSA, DFB 1270nm PIN |
| Highlight: | 10Gbps Optical SubAssembly,WDM Optical SubAssembly,TX1330nm LC SC |
||

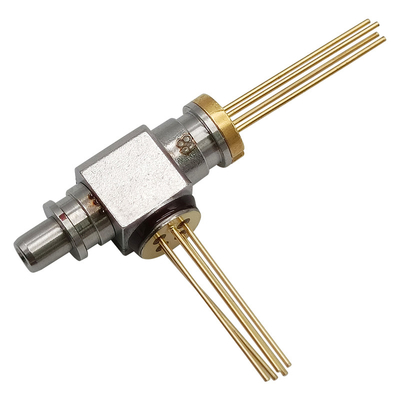

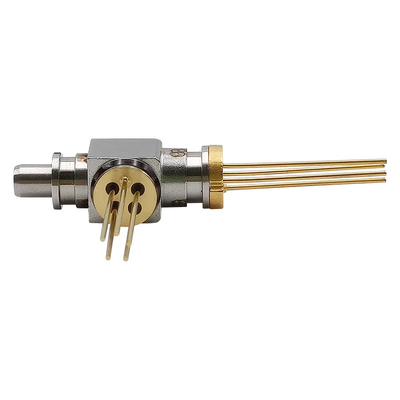

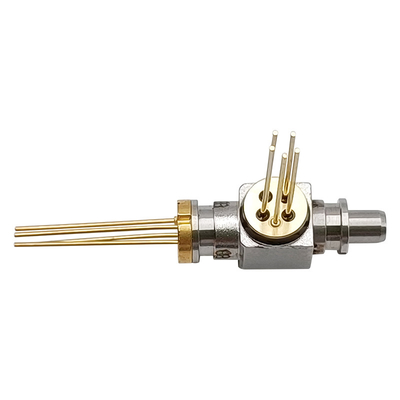

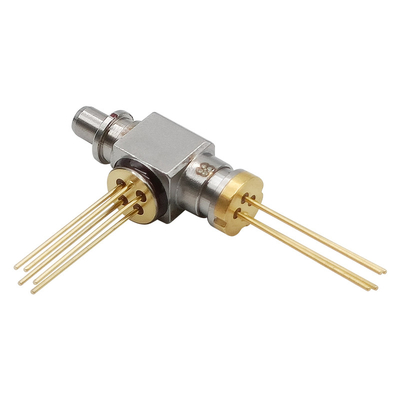

BOSA 10Gbps WDM TX1330nm DFB/RX1270nm PIN LC SC Bi-Directional Optical Sub-Assembly
Description
The GIGAOPTO's BOSA-T1330DFB-R1270PIN-10G-LC-REC is designed for data communication. The transmitter side uses a 1330nm DFB laser. The receiver side uses a 1270nm PIN with TIA. A WDM filter can separate 1270nm input light and1330 nm output light.
Absolute Maximum Ratings (Tc=25℃, unless otherwise noted)
| Parameter | Symbol | Min. | Max. | Unit |
| Reverse Voltage (LD) | VRL | --- | 2 | V |
| Reverse Voltage (MPD) | VRD | --- | 15 | V |
| Forward Current (MPD) | IFD | --- | 2 | mA |
| TIA Operating Voltage | VCC | 3.0 | 3.6 | V |
| Operating Case Temperature | Top | -40 | +85 | ℃ |
| Storage Temperature | TSTG | -40 | +85 | ℃ |
| Lead Soldering Temperature (Maximum 10sec) | TS | --- | 260 | ℃ |
| LD TO-can Pull Force | --- | 30 | --- | Kgf |
| PD TO-can Pull Force | --- | 15 | --- | Kgf |
| Shear Force | --- | 30 | --- | Kgf |
| ESD | 500 | --- | --- | --- |
Optical And Electrical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Transmitter (TC=25±3℃) | ||||||
| Threshold Current | Ith | --- | 8 | 15 | mA | CW, TC=25℃ |
| --- | --- | 30 | CW, TC=85℃ | |||
| Optical Output Power | Pf | 0.8 | --- | 1.6 | mW | CW, Iop=35mA, Tc=25℃ |
| Operating Voltage | Vop | --- | 1.2 | 1.6 | V | CW, Iop＝Ith+20mA |
| Rise/Fall Time | Tr /Tf | --- | --- | 120 | ps |
PF=5.0mW, Extinction Ratio >10dB, 20%-80%, without filter |
| Centre Wavelength | λ | 1320 | 1330 | 1340 | nm | Iop=30mA, Tc=25℃ |
| Spectrum Width (-20dB) | Δλ | --- | --- | 1 | nm |
Iop= 30mA, TC=-40℃~85℃ |
| Monitor Current | Im | 100 | --- | 1000 | μA | CW, Iop= 35mA |
| SMSR | --- | 30 | 35 | --- | dB |
Iop=30mA, TC=-40℃~85℃ |
| Monitor Dark Current | Id | --- | --- | 100 | nA | Vrd=5V |
| PD Capacitance | C | --- | 3 | 10 | pF | Vrd=5V@f=1MHz |
| Tracking Error (CW) | TE | -1.5 | --- | 1.5 | dB |
CW,-40℃/+85℃, Montior current hold @ Iop=35mA |
| Receiver (TC=25±3℃) | ||||||
| Supply Voltage | VCC | 3.0 | 3.3 | 3.6 | V | CW |
| Supply Current | Icc | 15 | 27 | 39 | mA | Vcc=3.3V |
| Optical Wavelength | λ | 1250 | 1270 | 1290 | nm | CW |
| Sensitivity | Sen. | --- | --- | -16 | dBm |
λ=1270nm , PRBS=2^31-1, BER=10-12, ER=10dB, @10Gbps |
| Saturation Power | Psat | 0 | --- | --- | dBm | |
| PD Responsivity | R | 0.7 | --- | --- | A/W | CW, λ=1270nm |
Features
Application
Standards
Outline Drawing (Unit: mm)
