Product Details:
|
| Data Rate(Gbps): | 10Gbps | Wavelength: | TX1270nm/RX1330nm |
|---|---|---|---|
| Optical Connector: | LC/SC | Transmitter Type: | DFB |
| Receiver Type: | PIN | Sensitivity: | <-16dBm |
| Keywords: | 10G BOSA 1270nm, LC SC Optical SubAssembly | ||
| Highlight: | LC SC Optical SubAssembly,RX1330nm Optical SubAssembly,Bi Directional Optical SubAssembly |
||

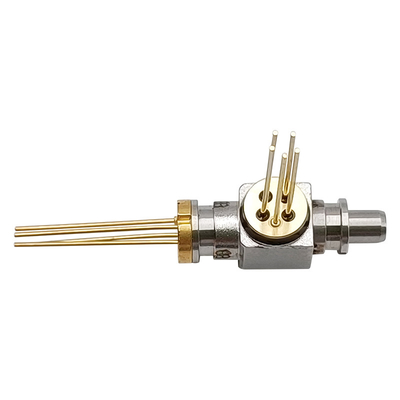

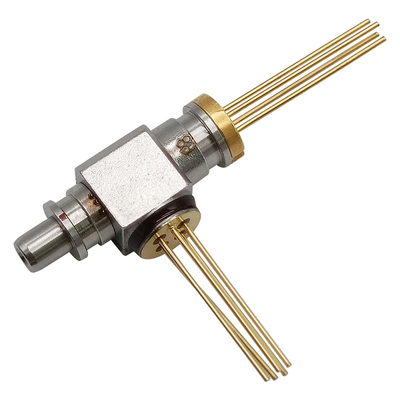

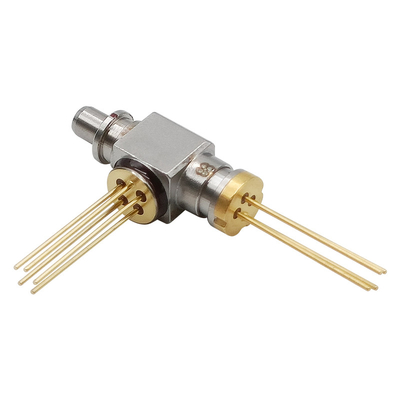

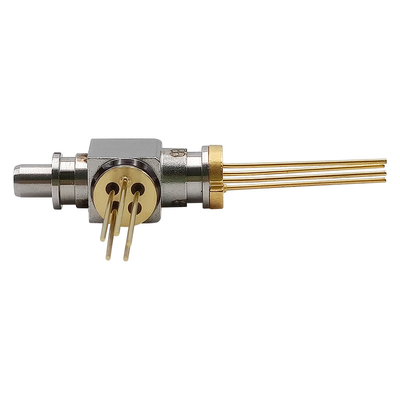

10Gbps LC SC WDM BOSA TX1270nm DFB/RX1330nm PIN Bi-Directional Optical Sub-Assembly
Description
The GIGAOPTO's BOSA-T1270DFB-R1330PIN-10G-LC-REC is designed for telecommunication, supporting data rate up to 10Gbp/s. The transmitter side uses a 1270nm DFB laser. The receiver side uses a 1330nm PIN with TIA.
Absolute Maximum Ratings (Tc=25℃)
| Parameter | Symbol | Min. | Max. | Unit |
| Reverse Voltage (LD) | VRL | --- | 2 | V |
| Forward Current (LD) | IFL | --- | 120 | mA |
| Reverse Voltage (MPD) | VRD | --- | 15 | V |
| Forward Current (MPD) | IFD | --- | 2 | mA |
| TIA Operating Voltage | VCC | +3.0 | +3.6 | V |
| Operating Case Temperature | TC | -40 | +85 | ℃ |
| Storage Temperature | TSTG | -40 | +85 | ℃ |
| Lead Soldering Temperature (Maximum 10sec) | TS | --- | 260 | ℃ |
| LD TO-can Pull Force | --- | 30 | --- | Kgf |
| PD TO-can Pull Force | --- | 15 | --- | Kgf |
| Shear Force | --- | 30 | --- | Kgf |
Optical & Electrical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Transmitter (TC=25±3℃) | ||||||
| Threshold Current | Ith | --- | 8 | 15 | mA | CW, TC=25℃ |
| --- | 15 | 30 | CW, TC=85℃ | |||
| Output Optical Power | Pf | 0.8 | --- | 1.6 | mW | CW, Iop=35mA, Tc=25℃ |
| Operating Voltage | Vf | --- | 1.2 | 1.8 | V | CW, Iop＝35mA |
| Rise/Fall Time | Tr /Tf | --- | --- | 120 | ps |
PF=5.0mW, Extinction Ratio > 10dB, 20%-80%, without filter |
| Center Wavelength | λp | 1260 | 1270 | 1280 | nm | Iop=30mA, Tc=25℃ |
| Spectrum Width (RMS) | Δλ | --- | --- | 1 | nm | Iop= 30mA,TC=-40℃~85℃ |
| Monitor Current | Im | 100 | --- | 1000 | μA | Vrd=5V |
| SMSR | --- | 30 | 35 | --- | dB | Iop=30mA, TC=-40℃~85℃ |
| PD Capacitance | C | --- | 3 | 10 | pF | Vrd=5V@f=1MHz |
| Tracking Error | TE | -1.5 | --- | 1.5 | dB |
CW,-40℃/+85℃, Montior current hold @ Iop=35mA |
| Receiver (TC=25±3℃) | ||||||
| Supply Voltage | VCC | 3.0 | 3.3 | 3.6 | V | CW |
| TIA Supply Current | Icc | 15 | 27 | 39 | mA | Vcc=3.3V |
| Optical Wavelength | λ | 1310 | 1330 | 1350 | nm | CW |
| Sensitivity | Sen. | --- | --- | -16 | dBm |
λ=1330nm , PRBS=2^31-1, BER=10-12,ER=10dB, @10Gbps |
| Saturation Power | Psat | 0 | --- | --- | dBm | |
| PD Responsivity | R | 0.7 | --- | --- | A/W | CW,λ=1330nm; |
Features
Application
Standard
Outline Drawing (Unit: mm)
