Product Details:
|
| Form Factor: | SFP | Max Data Rate (Gbps): | 1.25Gbps |
|---|---|---|---|
| Max Cable Distance: | 80km (49.7 Miles) | Center Wavelength: | 1490nm-TX/1570nm-RX |
| LD Type: | DFB BiDi | PD Type: | PIN |
| Connector Type: | LC Simplex | ||
| Highlight: | 1.25G BiDi SFP Module,1000BASE BX BiDi SFP Module,80km BiDi SFP Module |
||

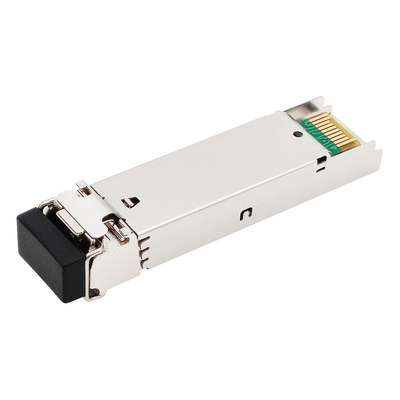

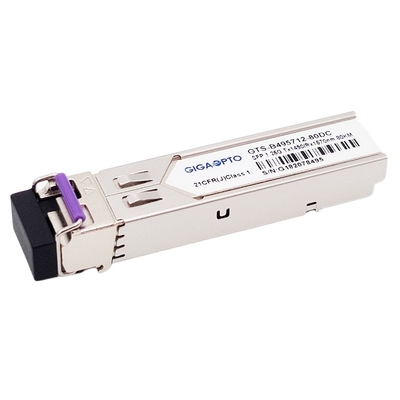

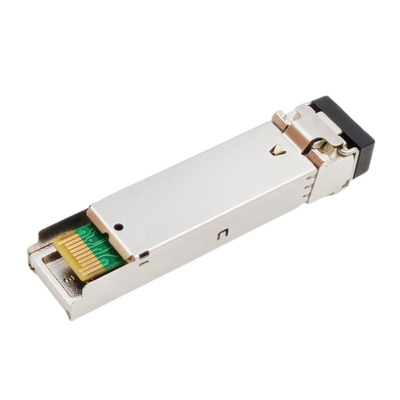

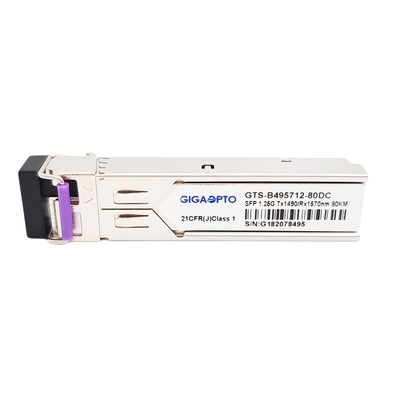

Cisco Compatible 1000BASE-BX 1.25G BiDi SFP Transceiver Module 1490nm-TX/1570nm-RX 80km Simplex LC SMF DOM
Description
The GIGAOPTO's GTS-B495712-80DC optical transceiver provides 1000Base-BX throughput up to 80km link length over single-mode fiber (SMF) using a wavelength of 1490nmTx/1570nmRx via LC simplex connectors. This transceiver is a high performance and cost-effective small form factor pluggable (SFP) Bi-directional module specified for 1000BASE-BX Gigabit Ethernet and 1G Fiber Channel applications. This transceiver supports DDM/DOM optical diagnostics that allows access to real-time operating parameters.
This transceiver is fully compliant with IEEE 802.3 1000BASE-BX80 and SERDES standard, SFP Multi-Source Agreement (MSA) and can be used on the MSA compliant networking equipment.
Specification
| Compatible Brand | CISCO | Compatible PN | GLC-BX80-U |
| Transceiver Type | SFP | Supported Data Rate | 1.063-1.25Gbps |
| Connector Type | Single LC | Reach | 80km |
| DDM/DOM | Supported | Cable Type | Single Mode Fiber |
| Warranty | 3 Years | Temperature |
Commercial 0 to 70°C Industrial -40 to 85°C |
| Wavelength | 1490nm-TX/1570nm-RX | Power Supply Voltage | 3.3V |
| Max Power Consumption | 1W | Optical Budget | 22dB |
| Transmitter Type | DFB BiDi | Receiver Type | PIN photodiode |
| Transmitter Output Power | -2~3dBm | Receiver Sensitivity | < -24dBm |
| Extinction Ratio | >9dB |
Input Saturation Power |
>-3dBm |
| Protocols | IEEE 802.3z, Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | ||
Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator
according to the table.
| Distance | ≤15km | ≤35km | ≤55km |
| Attenuator | 15dB | 10dB | 5dB |
Features
1570nm DFB laser and 1490nm PIN photo detector
Commercial: 0°C~70°C (32 to 158°F)
Industrial: -40°C~85°C (-40 to 185°F)
Application
Compatibility
All of GIGAOPTO's GTS-B495712-80DC SFP optical transceiver modules (1000BASE-BX BiDi SFP 1490nm-TX/1570nm-RX 80km) are open sourced, can be coded to be fully compatible with worldwide popular brands' devices. For detailed compatibility, please refer to the following table, and feel free to contact us.
| Compatible Brand | Compatible Part Number | Compatible Brand | Compatible Part Number |
| GIGAOPTO | GTS-B495712-80DC | Juniper | SFP-GE80KT49R57 |
| CISCO | GLC-BX80-U | Brocade | E1MG-BXU-80 |
Ordering Information
| P/N | Description | Speed | Wavelength | Distance | TX Power | Sensitivity |
| GTS-B4512-80DC | 1000BASE-BX BiDi SFP | 1250M | Tx1490nm/Rx1550nm | 80km | -2~3dBm | < -24dBm |
| GTS-B5412-80DC | 1000BASE-BX BiDi SFP | 1250M | Tx1550nm/Rx1490nm | 80km | -2~3dBm | < -24dBm |
| GTS-B495712-80DC | 1000BASE-BX BiDi SFP | 1250M | Tx1490nm/Rx1570nm | 80km | -2~3dBm | < -24dBm |
| GTS-B574912-80DC | 1000BASE-BX BiDi SFP | 1250M | Tx1570nm/Tx1490nm | 80km | -2~3dBm | < -24dBm |
| GTS-B4512-C0DC | 1000BASE-BX BiDi SFP | 1250M | Tx1490nm/Rx1550nm | 120km | -1~4dBm | < -31dBm |
| GTS-B5412-C0DC | 1000BASE-BX BiDi SFP | 1250M | Tx1550nm/Rx1490nm | 120km | -1~4dBm | < -31dBm |
